5096 Baar
Verified by manufacturer 18 days ago

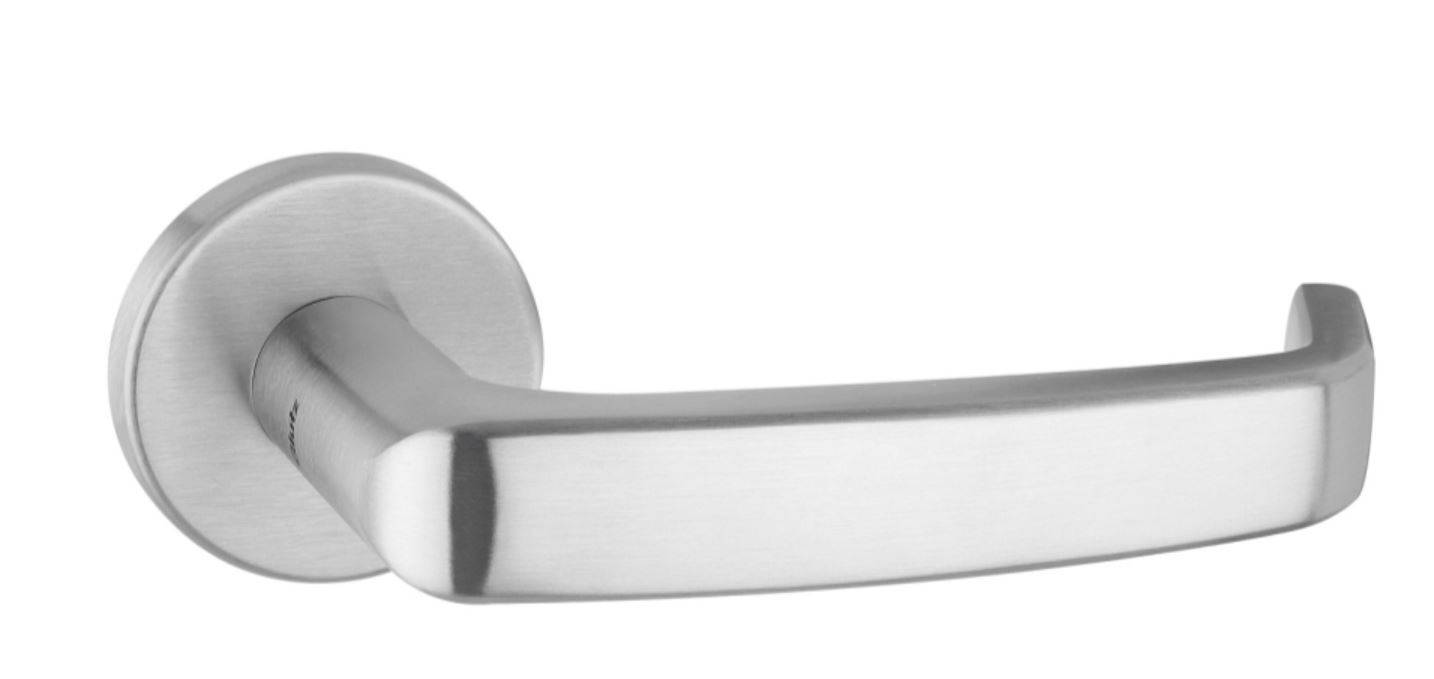

Stainless steel lever handle.
Application
Commercial buildings, administrative centres and superior quality residential developments.
Description
Stainless steel lever handle.
Features and benefits:
- Satin stainless steel surface.
- Lever handle length 141 mm, Ø 22 mm.
- Projection 60 mm.
- Prepared for fixed mobile mounting with easyfix.
- Steel galvanized square spindle.
- 16 mm Glutz glide bearing, tested to 2.5 million cycles.
Options:
16-mm twin bearing with easyfix (fixed mobile).
To achieve usage class 4 in accordance with EN 1906, a 9-mm steel or 8-mm stainless steel square spindle is needed.
General information
Color | Silver Guidance for specification option: LRV is between 44-45. Other Guidance for specification option: Can be polyester powder coated to any RAL colour. A range of PVD colours are also available. |
Finish | Satin |
Material | Stainless steel |
Shape | Other |
Length | 141 mm |
Width | 60 mm |
Uniclass | |
CAWS | P21/38 Lever handles P21/610 Lever handles |
Specification data - Door lever handle sets
Standard | To BS EN 1906. |
Classification grades (minimum) | |
Category of use | 4. |
Fire resistance | B. |
Type of operation | U. |
Size | 22 mm diameter. |
Material and finish | Satin stainless steel surface. |
Colour | Silver. |
Mounting | 16 mm guide for Glutz glide / easyfix. |
Execution | 00 Female half-set. 10 Male half-set. 50 Pair. |
Guides | 0 glide bearing. 1 twin glide bearing. |
Spindle | 80 - 8 mm. 85 - 8.5 mm. 90 - 9 mm. Spindle, 0 - Without. Spindle, 1 - Galvanized. |
Spindle length | Not applicable. 06 - 84 mm. 12 - 109 mm. 99 - On request. |
Surface | 00 Stainless steel matt. 11 Stainless steel polished. 44 Antibacterial. 51 RAL 9005 black matt. 99 On request. |
Sustainability data
Material | Stainless steel |
