510 Impermia - Porcelain surface
Verified by manufacturer 6 months ago

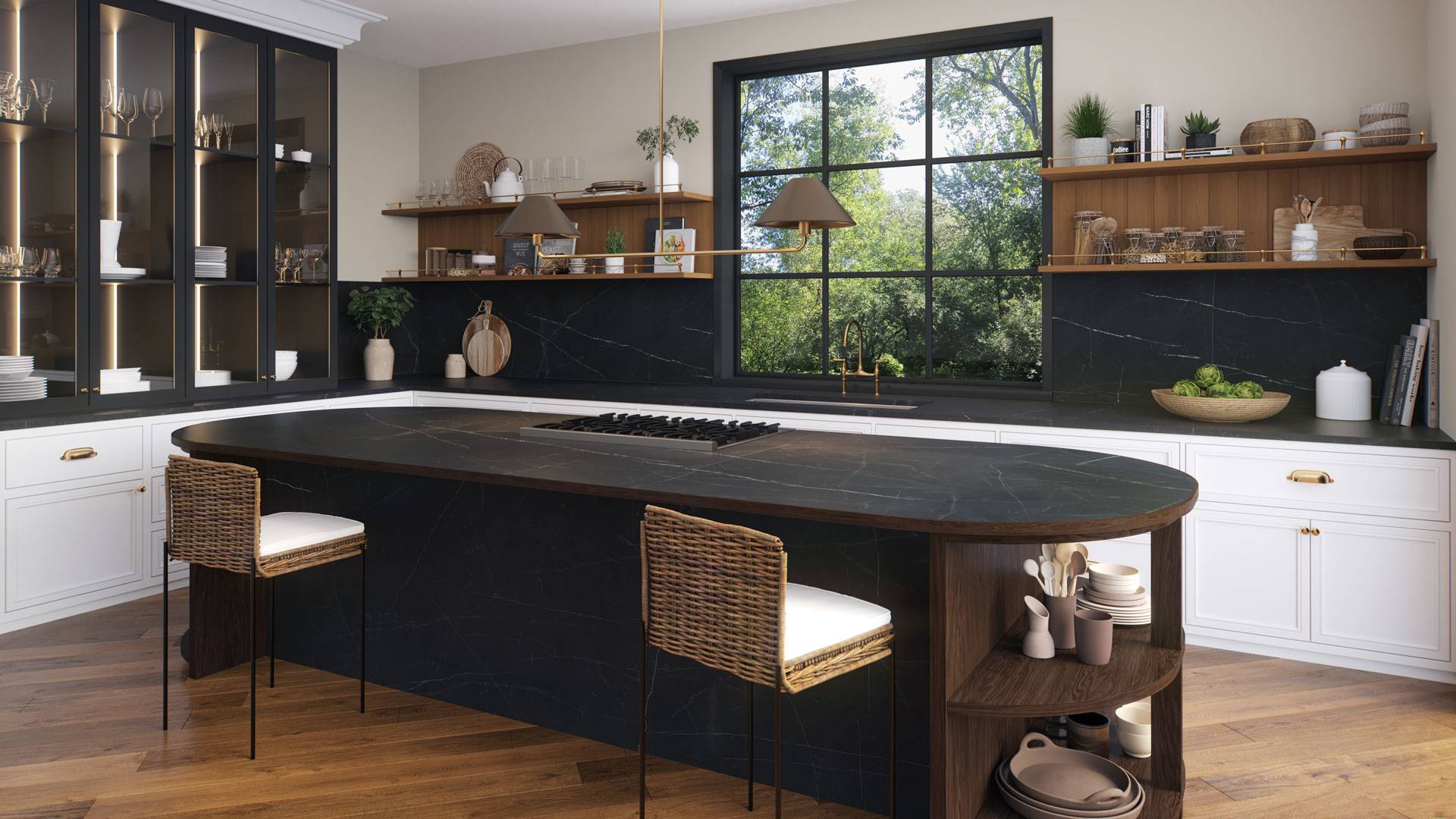

Porcelain surface with a black base and thin white veins.
Application
Suitable for worktops, kitchen islands, splashbacks, upstands, vanity tops, bathrooms, bar counters, bar tops, serveries, reception desk, table top, furniture, desk top. Indoor or outdoor use.
Description
Porcelain surface suitable for use in residential and commercial projects.
Features and benefits:
- Durable.
- Scratch and stain resistant.
- Extremely heat resistant.
- Resistant to household chemicals, acids and solvents.
- Mould and mildew resistant.
- Non-porous and non-absorbent.
- Suitable for a wide range of different design applications; consult manufacturer for details.
- Low maintenance - no sealing or waxing required, suitable for cleaning with regular detergents.
- Suitable for both indoor and outdoor use.
General information
Color | Black |
Finish | Honed |
Material | Porcelain |
Shape | Rectangle |
Length | 3200 mm |
Width | 1600 mm |
Height | 12 mm |
Warranty description | Ten year Guidance for specification option: Commercial warranty. Lifetime Guidance for specification option: Residential warranty. |
Uniclass | Ss_40_25_20/510 Purpose made furniture |
CAWS | N11/370 Shelving N10/145 Vanity and washroom furniture N10/160 Shelving systems N10/125 Desks and tables N12/320 Worktops N10/10 Purpose-made N10/30 Shelving systems N10/15 Desks and tables N11/380 Purpose-made units N10/110 Purpose-made N12/440 Purpose-made N12/440 Purpose-made N12/320 Worktops N10/200 Worktops N11/340 Worktops N11/20 Worktops |
Product range |
Specification data - Worktops
Material | Porcelain. |
Dimensions | |
Plan size | 1600 x 3200 mm. |
Thickness | 12 mm. |
Exposed edges | |
Profile | Mitred. |
Upstands | |
Finish | To match worktop.Not applicable. |
Height | Manufacturer guidanceInsert requirements or omit. |
Cutouts | Manufacturer guidanceInsert requirements or omit. |
Integral accessories | Manufacturer guidanceInsert requirements or omit. |
Colour | 510 Impermia. Guidance for specification option: Black with thin white veins. |
Finish | Honed. |
Weight | 150–160 kg. |
Water absorption | To ASTM C373, ≤0.1%. |
Density | To EN 10545-3, ≥2.3 gr/cm³. |
Flexural strength | To EN 14617-2, > 50 MPa; to ASTM C880/M, > 35 MPa. |
Impact resistance | To EN 10545-5, ≥ 0.85. |
Breaking strength | To EN 10545-4, ≥ 5000 N. |
Abrasion resistance | To EN 10545-6, ≤ 175 mm³. Manufacturer guidanceDeep abrasion resistance. |
Frost resistant and chemical resistant | To EN 10545-12, no defects observed. Manufacturer guidanceFrost resistance. |
Linear thermal expansion coefficient | To EN 14617-11/ASTM 372, ≤ 6.5 x 10-6 per °C-1. |
ThermalConductivity | To EN 12664, 1.2 W/(m∙K). |
Thermal shock resistance | To EN 10545-9, no damage observed. |
Surface | To ASTM E84, Class A - FSI: 0-25; SDI: 0-450. Manufacturer guidanceSurface burning. |
Fire classification (to EN ISO 13501-1) | A2-s-1, d-0. |
Fire performance | To AS 1530.3:1999, Ignitability Index (0-20), 0; Spread of Flame Index (0-10), 0; Heat Developed Index (0-10), 0; Smoke Developed Index (0-10), 0–1. |
Stain Resistance | To EN 10545-14, Pass. |
Chemical resistance class | To ASTM C650/ EN 10545-13, Class A. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
