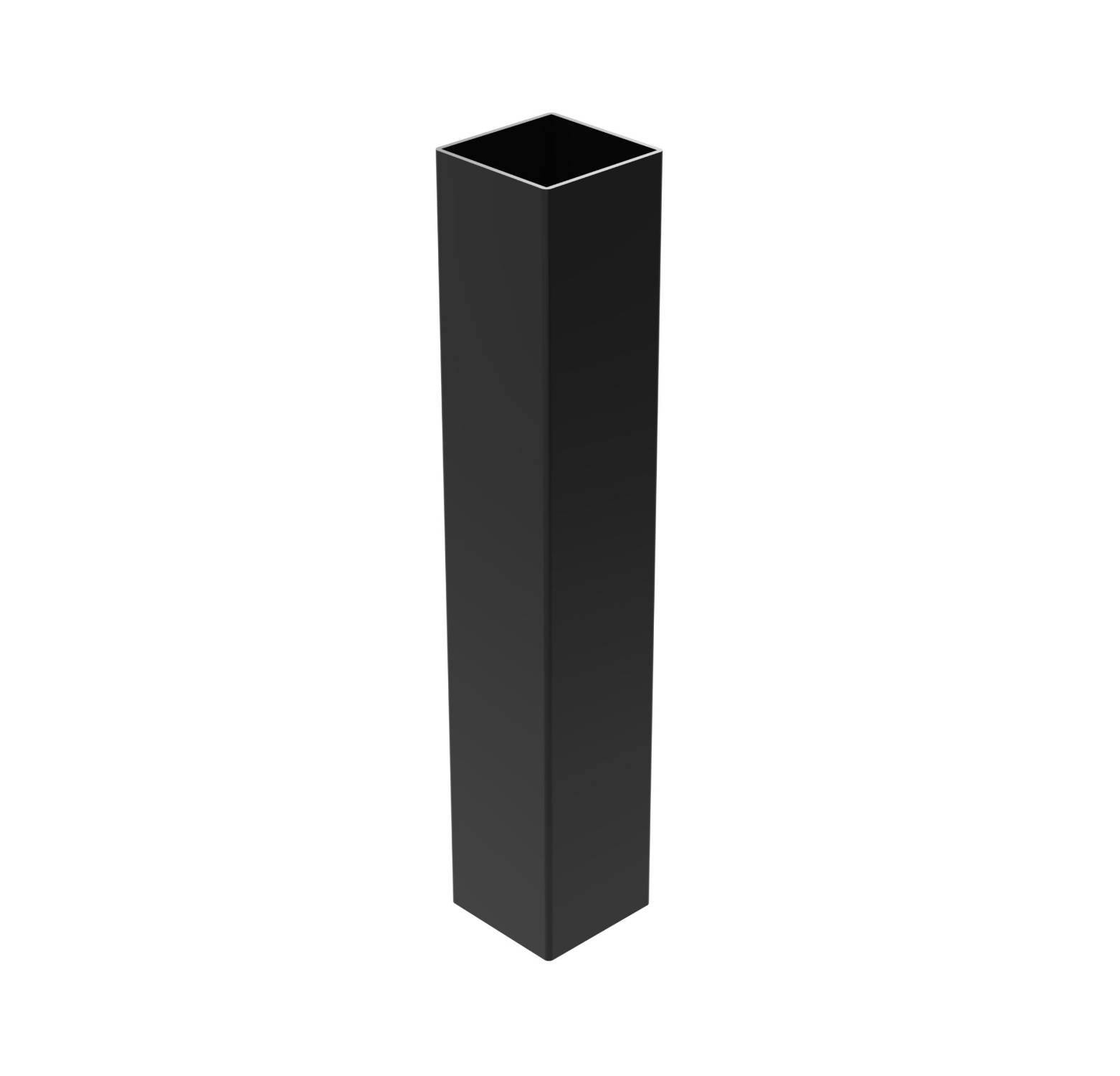

72x72mm Square Downpipe
Verified by manufacturer 3 days ago
Aluminium square downpipe system.
Application
Suitable for industrial, domestic and commercial applications.
Description
The aluminium 72 x 72 mm square downpipe system provides a simple and durable solution to rainwater drainage. This system can be combined with Metal Profiles' 130 x 85 mm box gutter system for a complete rainwater goods package.
Features and benefits:
- Polyester powder-coated with external grade paint for long-lasting durability.
- Wide variety of RAL/BS colours available.
- Fire class rating A2-s1,d0.
- Cost efficient, easy to install system.
- Designed and fabricated in the UK.
- Aluminium is 100% recyclable.
- Bespoke solutions available.
General information
Color | Beige Black Blue Brown Cream |
Finish | Powder-coated Mill |
Material | Aluminium |
Shape | Square |
Length | 3000 mm |
Width | 72 mm |
Height | 72 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | R10/30 Aluminium pipework R10/370 Aluminium pipework |
Specification data - Aluminium rainwater pipes and fittings
Section | Square. |
Size (nominal) | 72 x 72 mm. |
Finish and colour | |
Finish | Mill finish.Polyester powder-coated. |
Colour | None.Guidance for specification option: Mill finish only. RAL, colour.Guidance for specification option: Consult the manufacturer's website for options and insert requirements. BS 4800, colour.Guidance for specification option: Consult the manufacturer's website for options and insert requirements. BS 381C, colour.Guidance for specification option: Consult the manufacturer's website for options and insert requirements. |
Integral accessories | Aluminium contemporary standard hopper head.Aluminium square access pipe.Aluminium square adjustable offset.Aluminium square adjustable pipe clip.Aluminium square bend.Aluminium square branch.Aluminium square internal flush joint.Aluminium square pipe clip.Aluminium square shoe.Aluminium square spigot extender. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Aluminium |
Recyclability | 100% recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Expected Life | 25 year |
Literature
Metal Profiles - 1050A Aluminium TDS
Metal Profiles Powdercoating RAL & BS Colour Chart
Metal Profiles - Square Downpipe System TDS (72mm x72mm)
Metal Profiles - Standard Rectangle Hopper Head TDS
