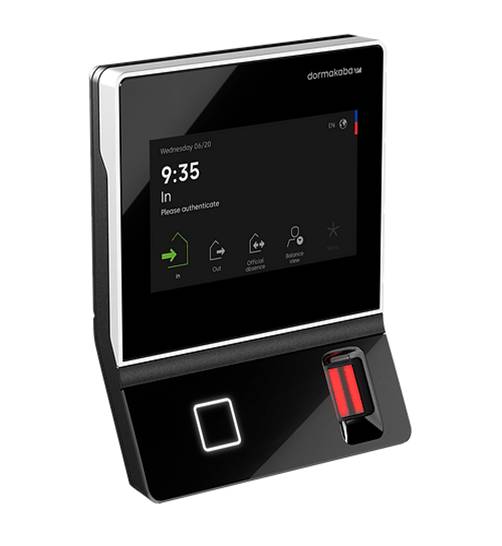

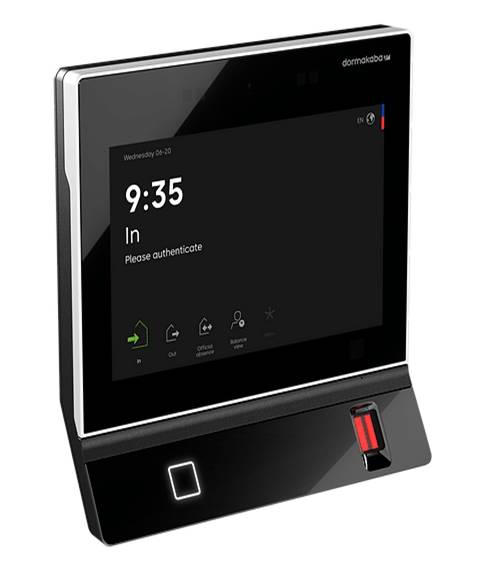

98 00-K7 - Time and Attendance Terminal
Verified by manufacturer 8 days ago
Time and Attendance Terminal.
Application
Shop floors, offices factories, schools, universities.
Description
The dormakaba terminal 98 00 is the the premium model from the new K7 terminal generation. It fulfils the requirements of demanding applications, allowing users to display both large selection lists and extensive informational content.
Features and benefits:
- With its advanced technology, the 98 00 terminal not only offers reliable time recording but also an impressive range of advanced functions and is therefore also suitable as a terminal for shop floor data collection.
- The instantaneous and high-resolution 10.1" touchscreen sets standards for intuitive and user-friendly operation.
- The robust design not only ensures a long service life but also maximum reliability, even under demanding conditions.
- Employees are identified using an RFID card or smartphone on the integrated multi-RFID reader.
- Alternatively, opt for biometric identification which offers simplified user administration as well as improved convenience and protection against buddy-punching.
- In addition to time recording, the dormakaba terminal 98 00 offers the option of door control or can serve as a CardLink/AoC update terminal for your access solution.
General information
Color | Black |
Finish | Smooth |
Material | Plastic Guidance for specification option: Housing. Glass Metal Guidance for specification option: Back plate. |
Shape | Rectangle |
Length | 65.6 mm Guidance for specification option: Depth. |
Width | 266.5 mm |
Height | 266.2 mm |
Warranty description | Two year |
Uniclass | |
CAWS | W90/363 Access control units |
Specification data - Access control units
Security grading | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Type of operation | Networked. |
Number of doors per controller | Guidance for specification option: Consult manufacturer for options and insert requirements. |
Number of users (minimum) | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Communication interface | Multi-RFID reader, LEGIC / MIFARE (SM6300) HID - iCLASS SE, iCLASS, Prox, Prox II. |
Visual indication | LED screen. |
Random access memory (RAM) capacity (minimum) | 4 GB.Guidance for specification option: Consult manufacturer for details. |
Storage memory capacity | Up to 50 000 master records and 200 000 transactions. |
Administration access | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Database | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Information fields per user | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Spare information fields per user (minimum) | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Import and export of database in ASCII format | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Enclosure | |
Material and finish | Robust plastic housing with wall mounting plate. |
Colour | Black. |
Accessories | None.Camera module.Guidance for specification option: For biometric identification. |
Interfaces | Internal I/Os: Two digital inputs, one output. |
Ingress protection (IP) rating | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Power supply | Power class 0 (0.44–12.95 W) and POE (IEEE 802.3at). Guidance for specification option: Power consumption: One USB 2.0, type C. |
Ambient temperature | -20 to +55°C. |
Dimensions | 266.5 x 266.2 x 65.6 mm. |
Category of use | Time and attendance/ workforce management. |
Components | 10.1” touchscreen 1280 x 800 pixels. |
Sustainability data
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Plastic Guidance for specification option: Housing. Glass Metal Guidance for specification option: Back plate. |
