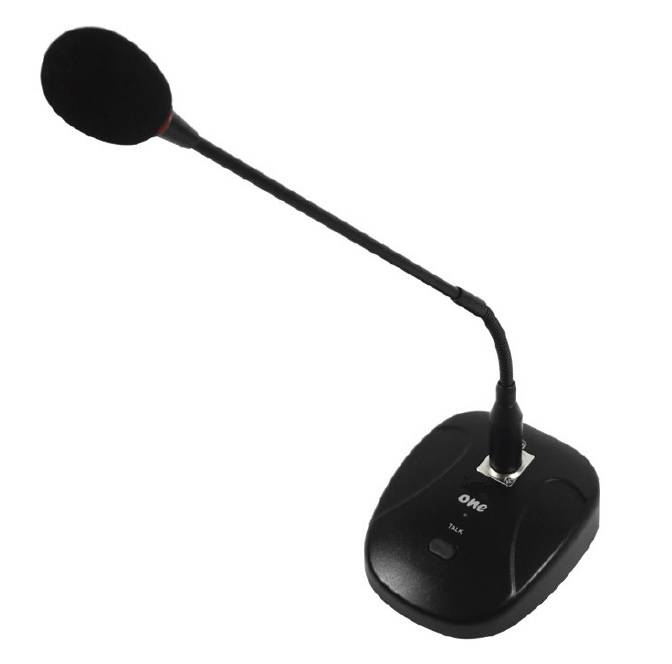

A1 Paging Microphone
Verified by manufacturer 5 months ago
CE Marking
Certificate type
Paging microphone.
Application
A suitable paging microphone to be placed at any point of
the installation due to its small dimensions, its elegant design and its high resistance material.
Description
The A1 is a high performance desktop microphone for
professional Public Address installations. It has lighting
indicators in order to show active state, line busy or permission to-speak granted.
Thanks to its internal microcontroller, it is able to work under different systems and with different operational modes: on/off button, push to talk button, TTL communication through two wires, advise-tone to initiate/ cut communication and TTL control level selection.
Features and benefits:
- High performances dynamic capsule.
- Local power supply.
- Audio gain setting.
- Configurable contact relay for auxiliary system.
- Busy line and conceded-word indicators.
- Lighting indicator placed in the goose-neck.
- Dynamic transducer with mobile coil.
General information
Color | Black |
Finish | Matt |
Material | Metal |
Shape | Other |
Length | 125 mm Guidance for specification option: Depth |
Width | 125 mm |
Height | 45 mm |
Warranty description | Two year |
Uniclass |
Specification data - Paging microphones
Rated voltage | 5 Vdc, 200 mA. |
Microphone | Unidirectional electret condenser microphone with 350 mm |
Control features | On/ off slide switch. |
Display features | Lighting indicators in order to show active state, line busy or permission to- speak granted. |
Enclosure | |
Colour | Black. |
Mounting method | Desktop. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Spain |
Country of product manufacture | Spain |
Material | Metal |
Manufacturing plant location | |
Recyclability | Recyclability (guidance on recyclability considerations): Refers to the ability and ease with which a product can be recycled at the end of its useful life. This item provides guidance or information on aspects related to product recycling, which may include tips on how to disassemble or separate its components to facilitate recycling, as well as information on the materials used in their manufacture and their potential for recycling. |
Expected Life | Ten year |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |

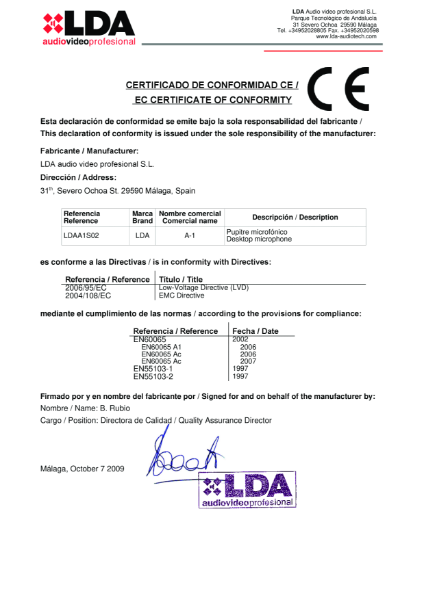

Third party certifications
CE Marking
A-1 CE
Literature
590.010.001 A1 Paging Microphone
