A1400 Automatic Telescopic Sliding Door Operator with TK35 Door Profiles - Telescopic Sliding Door

Name: A1400 Automatic Telescopic Sliding Door Operator with TK35 Door Profiles - Telescopic Sliding Door
Brand: FAAC Entrance Solutions UK
SKU: uAh2MPHfE9ZRwMGC9qk6ez

Verified by manufacturer 3 months ago

Single

FAAC Entrance Solutions UK

Third party certifications:

ADSA
Certificate type
CHAS
Certificate type
Constructionline
Certificate type
ISO 14001 Environmental Management Systems
Certificate type
ISO 45001 Health and Safety Management
Certificate type
UKAS
Certificate type

Automatic telescopic sliding door operator with TK35 door profiles (two door leaves, single direction).

Jump to:

BOS

+44 (0)333 006 3443 Website

Application

Automatic telescopic sliding single direction door and bi-parting door.

Description

Automatic telescopic sliding door operator with TK35 door profiles (two door leaves, single direction and four doors on bi-parting).

Features and benefits:

Available as a single-direction door system and as a bi-parting door system.
Opening width: 1100–3000 mm (single); 1400–4000 mm (double).
Supports door leaves up to 110 kg each (single) and up to 60 kg each (double).
System including normal installation to comply with BS 7036-0:2014 and BS EN 16005:2012.
Monitored emergency escape opening and threshold presence detection safety system, with 24 V d.c. E1/2SL monitored battery pack.
Exclusive intelligent energy saving function eliminates cross traffic opening, optimizing opening widths and hold open times.
Standard one year warranty (can be extended subject to quotation).

Manufacturer’s Declaration of Conformity

Tested to: EN 60335-1, EN 60335-2, EN 61000-6-2, EN 61000-6-3, EN ISO 13849-1, EN ISO 13849-2, EN ISO 12100 and EN 16005.

General information

Color	Silver Bronze Other Guidance for specification option: Powder-coated components only. Clear Guidance for specification option: Glazing only.
Finish	Anodized Powder-coated
Material	Glass
Shape	Rectangle
Width	Bespoke
Height	Bespoke
Warranty description	One year

Uniclass	Pr_30_59_24_80 Sliding door and partition setsPrimary
CAWS	L20/490 Automatic doors

Specification data - Sliding door and partition sets

Performance	Internal. External.
Arrangement	Top hung; single direction; left-hand opening telescopic (two door leaves). Top hung; single direction; right-hand opening telescopic (two door leaves).

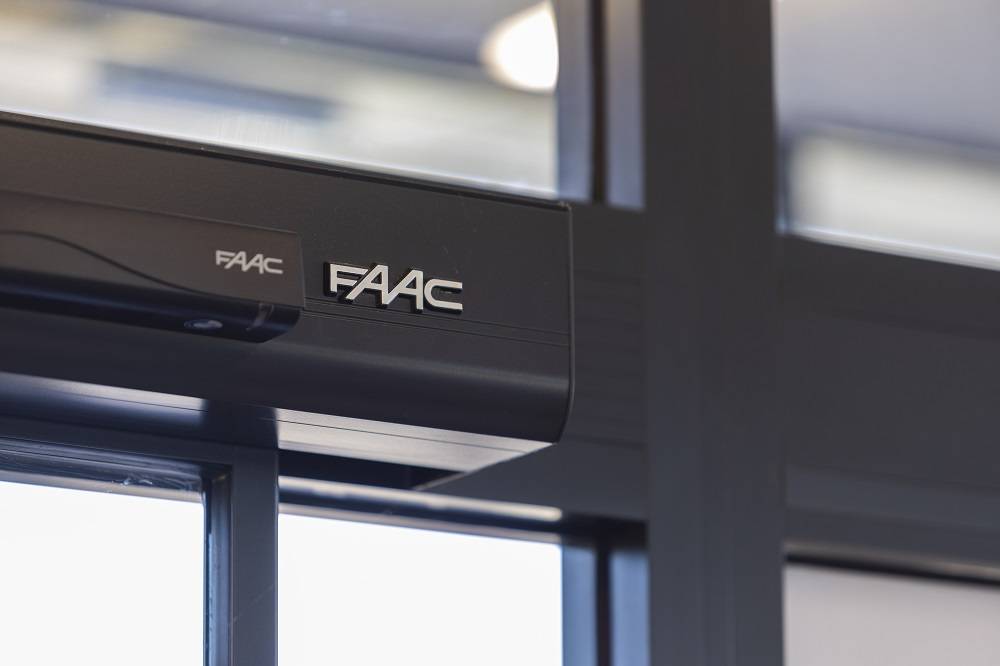

Track system	FAAC A1400 AIR telescopic sliding door operator (top track). Guidance for specification option: With unique Energy Saving function providing automated operation. See below for additional track properties including finish options.
Door leaves	-
Construction	30 mm narrow door stiles; 10.8 mm clear laminated safety glass. 30 mm narrow door stiles; 24 mm double glazed unit with clear laminated safety glass. 60 mm wide door stiles; 10.8 mm clear laminated safety glass. 60 mm wide door stiles; 24 mm double glazed unit with clear laminated safety glass.
Finish and colour	Silver anodized. Bronze anodized. FAAC powder coat finish, RAL. Guidance for specification option: Consult manufacturer for options and insert requirements.
Operation	Combined uni-directional and threshold presence detection entry/exit activator. Elbow push pads for entry/exit. Access control for entry and elbow push pad for exit. Contactless activation for entry/exit.
Accessories	None. Morning entry switch. Manufacturer guidance See also Locking mechanism and Activation for further options.

Dimensions	Guidance for specification option: Insert requirements, subject to maximum door leaf weight of 110 kg per door leaf: Opening width: 1100–3000 mm. Height - either: Door height, operator wall mounted (1900–3000 mm) OR Overall height, operator beam mounted (2050–3150 mm).
Mode of operation	Digital FAAC SDK EVO multi-mode selector and configurator tool. Digital FAAC LK EVO with LED diagnostic and six-mode selector. Illuminated key switch FAAC EVO with five-mode selector.
Door protection	Finger protection - flush glazed externally and internally. Finger protection - flush glazed externally only.
Safety	Sidelight - monitored presence detection.
Additional requirements	Sidelights, flush glazed externally, one panel. Sidelights, flush glazed externally and internally, one panel. Sidelights, flush glazed externally, two panels. Sidelights, flush glazed externally and internally, two panels. Overlight, flush glazed externally, one panel. Overlight, flush glazed externally, two panels. Overlight, flush glazed externally, three panels. Not required. Show more Manufacturer guidance Select multiple options as required.
Locking mechanism	Fail safe (electric). Fail secure (electric). Bi-stable (electric). Not required. Manufacturer guidance See also Cylinder and Lock.
Track finish	To match door. Silver anodized. Bronze anodized. FAAC powder coat finish, RAL. Guidance for specification option: Consult manufacturer for options and insert requirements.
Standard	Door operator tested to EN 60335-1, EN 60335-2, EN 61000-6-2, EN 61000-6-3, EN ISO 13849-1, EN ISO 13849-2, EN ISO 12100 and EN 16005.
Threshold	Ramped. Level. Not required.
Fixing	FAAC beam mounted. Wall mounted, beam by others. Guidance for specification option: Insert details.
Control system	Manufacturer's standard. Guidance for specification option: Monitored emergency escape opening and threshold presence detection safety system, with 24 V d.c. E1/2SL Monitored battery pack. Unique intelligent energy saving function eliminates cross traffic opening, optimizing opening widths and hold open times. To permit safe passage between closing doors, the doors go into reverse mode if an obstruction is detected, and then start moving again slowly to check if the obstruction has cleared. Automatic adjustments: Determination of opening and closing positions. Selection of ideal speed, acceleration and deceleration. Protection sensor monitoring. Switch-mode power supply to allow installation and commissioning between 110–240 V. Manufacturer guidance See also: Activation: See Operation for options. Morning entry switch: See Accessories for options. Sidelight safety: See Safety for options. Operation mode selector: See Mode of operation for options.
