Application

Suitable for use on stepped and uneven floors.

Description

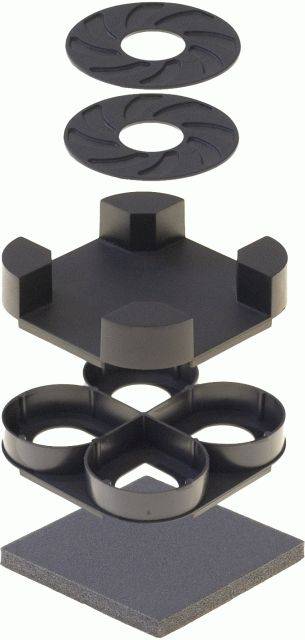

Resilient acoustic cradle and batten system.

The system involves the use of an acoustic rubber pad, standardized moulded components and an acoustic perimeter edging strip, either with or without an acoustic quilt between the battens. The result is a resilient timber floating floor over a solid sub-floor, with accommodation for services and offering much improved resistance to the transmission of impact and airborne sound


Features and benefits:

  • Resilient cradle and batten system is specially designed for uneven timber & concrete sub-floors common in traditional constructions.
  • It has been developed as a quick and easy way to level cambered, stepped and uneven sub-floors.
  • Ideal for Robust Detail FFT-2 floating floor treatment for floor types: E-FC1, EFC-2, EFC-7 & EFS-1.
  • 2 mm packing shims permit ultimate flexibility in final height adjustment.
  • Combination of cradles, risers and timber supports provide a variety of raised floor designs.
  • Complies with the requirements of Building Regulations (E&W) Approved Document E and Section 5 (Scotland).

General information

Color

Black

Finish

Smooth

Material

Plastic

Rubber

Uniclass

Pr_20_85_47_04 Acoustic batten cradlesPrimary

CAWS

K11/125 Battened particleboard floating floor

K11/20 Battened particleboard floating floor

K11/275 Acoustic separating floor system

Product range

Acoustic Battens

Specification data - Acoustic batten cradles

Product Reference

Acoustic Cradle Levelling System

Impact sound reduction

Guidance for specification option:

Δ Lw = 28 dB.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom
