Acoustic floor - Isocheck Deep Batten System - Non adjustable suspended acoustic floor

Verified by manufacturer 1 month ago

Isomass Ltd

Acoustic deep batten system for timber frame construction and timber floors generally. Suspended system for timber and steel floors.

Jump to:
+44 (0)330 175 8228 Website

Application

  • Designed to be used over timber floors with a timber frame or masonry facade (to hide services or accommodate underfloor heating beneath the floor) and a new resilient bar ceiling for new build timber frame or steel frame projects, refurbishments and conversions.
  • May also be used on other constructions, contact the manufacturer for details.

Description

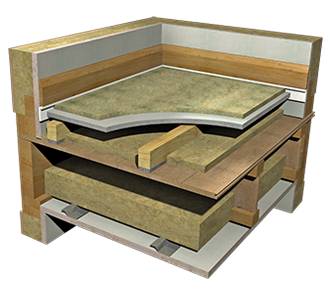

The Isocheck Deep Batten system is designed to reduce transmission through timber floors within a timber frame structure.

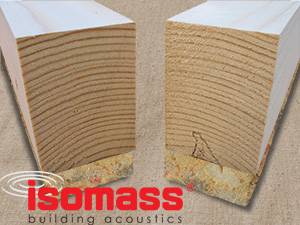

Isocheck Deep Batten consists of 15 mm ACF (acoustic chip foam) bonded to a 60 mm softwood batten. Other batten sizes are available to special order. May also be installed in conjunction with underfloor heating systems.


When installed as part of a complete party floor construction it enables a timber floor to meet the sound transmission standards of ADE 2003 and subsequent amendments in 2004, 2010, 2013 and 2015.


Treated floor meets with the New Build Robust Detail descriptive FFT1, typically within Robust Detail E-FT-1, E-FT-2, E-FT-3, E-FT-7 and E-FS-2.

General information

Color

Other

Material

Wood

Guidance for specification option:

Softwood batten.

Foam

Guidance for specification option:

Reconstituted ACF (Acoustic Chip Foam).

Shape

Rectangle

Length

1800 mm

Width

45 mm

Height

75 mm

Guidance for specification option:

Designed to settle to approx 70 mm high.

Uniclass

Pr_20_76_88_47 Insulating timber floor battensPrimary

CAWS

K11/275 Acoustic separating floor system

K11/125 Battened particleboard floating floor

K11/20 Battened particleboard floating floor

Specification data - Insulating timber floor battens

General requirements

FSC certified timber.

Size

45 x 75 mm.

Guidance for specification option:

15 mm ACF bonded to a 60 mm softwood batten.

Manufacturer guidance

Overall.

Shape

Rectangular.

Resilient layer

Acoustic chip foam (ACF).

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Guidance for specification option:

Made with reconstituted foam.

Country of product manufacture

United Kingdom

Recyclability

100% recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

40 %

Manufacturer guidance

Made with reconstituted foam.

Literature

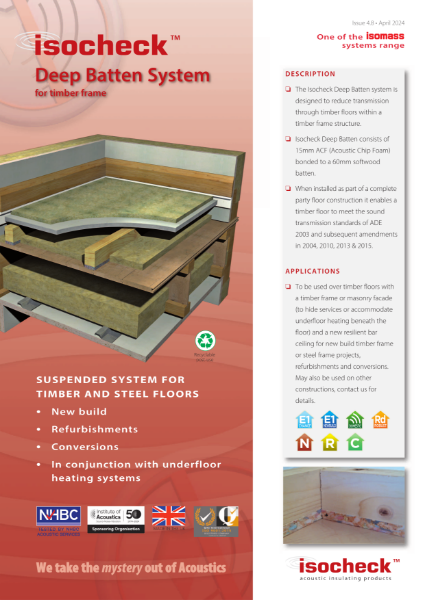

Isocheck Deep Batten - Data Sheet v4.8

Isocheck Deep Batten - Data Sheet v4.8

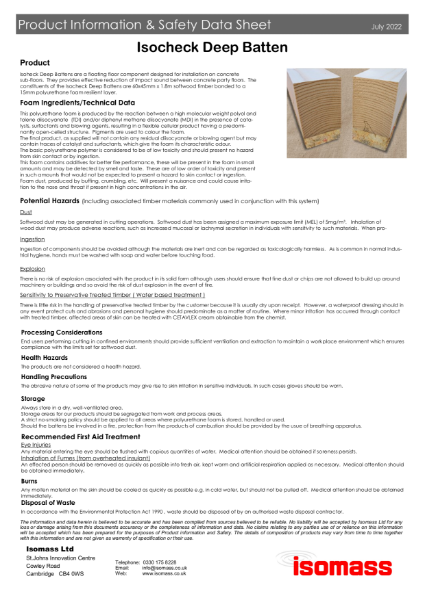

Isocheck Deep Batten - Safety Data Sheet

Isocheck Deep Batten - Safety Data Sheet

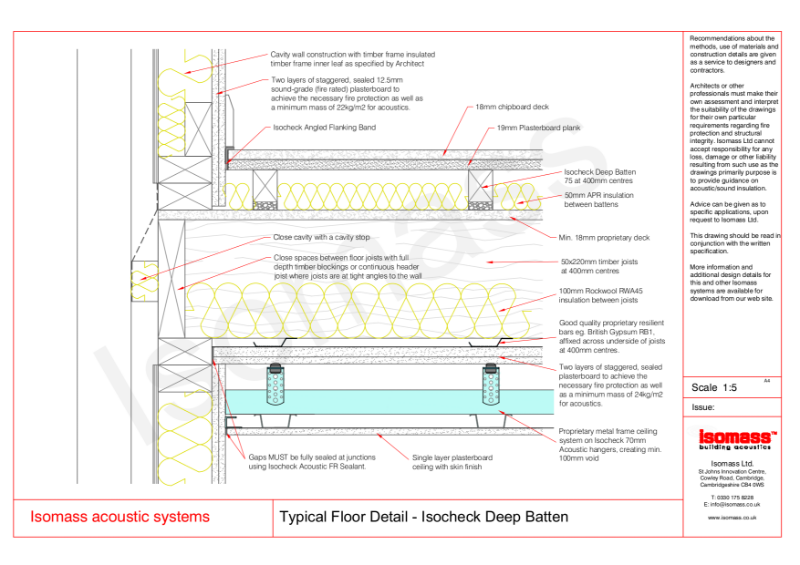

Typical Floor Detail - Isocheck Deep Batten

Typical Floor Detail - Isocheck Deep Batten
