Baffle ceiling panel

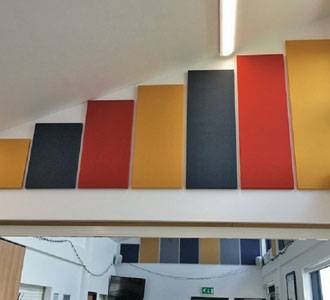

Acoustic wall panels for sound absorption and reverberation noise reduction in schools, common areas, restaurants, where the subject area is commonly subjected to high levels of human traffic.
The Isocheck Reverb wall panels feature a compressed glass wool core around an MDF frame and are covered with a polyolefin fabric. The fabric-faced wall panels absorb sound and reduce reverberation.

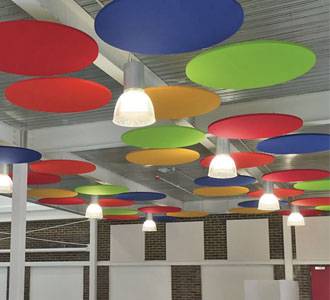

A wide range of sizes are available in 12 different sizes ranging from 600x1200 mm to 1200 x 3000 mm rectangular or 600 mm, 800mm & 1200 mm diameter circular panels.
Features and benefits:
Color | Beige Red Brown Yellow Green Manufacturer guidanceConsult manufacturer's literature for colour charts. |
Finish | Woven Guidance for specification option: Fabric. |
Material | Medium density fibreboard (MDF) Fabric Glass mineral wool |
Shape | Circle Square Rectangle |
Length | 600 mm 3000 mm |
Width | 600 mm 1200 mm |
Height | 40 mm |
Uniclass | |
CAWS | K13/170 Acoustic panel lining K13/170 Acoustic panel lining K40/115 Unit/ modular suspended ceiling system K40/10 Unit/ modular suspended ceilings |
Form | Baffle. |
Application | Ceiling mounting. |
Material | Glass wool, MDF and polyolefin fabric. |
Acoustic performance | |
Purpose | Absorber. |
Fire performance | |
Fire resistance | To BS 476-6 and 476-7, Class 0. |
Dimensions | |
Size (length x width) | Manufacturer guidanceA wide range of sizes are available as baffles, wall liners or rafts either cylindrical or in 15 different sizes ranging from 600 mm square to 1200 x 3000 mm. Consult manufacturer and insert requirements. |
Thickness (overall) | 40 mm. |
Finish | Material. |
Colour | Manufacturer guidanceConsult manufacturer's literature for Lucia and Cara fabric colour charts and insert requirements. |
Fixing | Suspension kit. Guidance for specification option: The suspension kit contains the soffit fixing, the locking eyelet hook and the spiral hook, which is screwed into the back of the panel. |
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Medium density fibreboard (MDF) Fabric Glass mineral wool |
Recyclability | yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 80 % |
