Acoustic Timber Wall Panels - (Solid Wood Slats, EN13501-1 Tested) - Acoustic Wood Panels - Flexible Design

Verified by manufacturer 4 months ago

BCL Timber Projects Ltd Third party certifications:
  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • FSC

    FSC

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • PEFC

    PEFC

    Certificate type

  • Constructionline

    Constructionline

    Certificate type

  • Health & Safety Accreditation

    Health & Safety Accreditation

    Certificate type

  • TRADA

    TRADA

    Certificate type

  • Fleet Operator Recognition Scheme

    Fleet Operator Recognition Scheme

    Certificate type

  • Grown in Britain - GiB

    Grown in Britain - GiB

    Certificate type

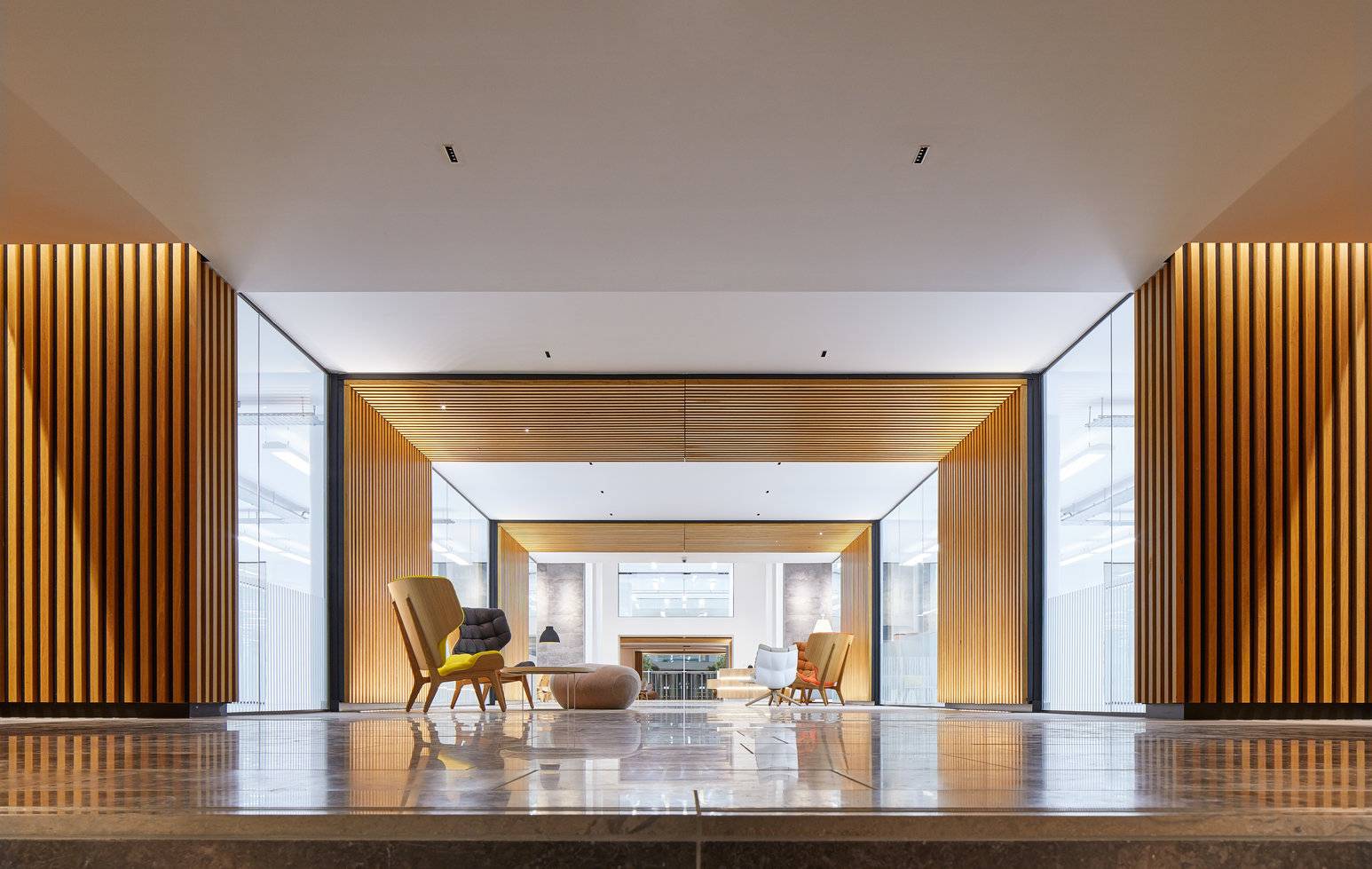

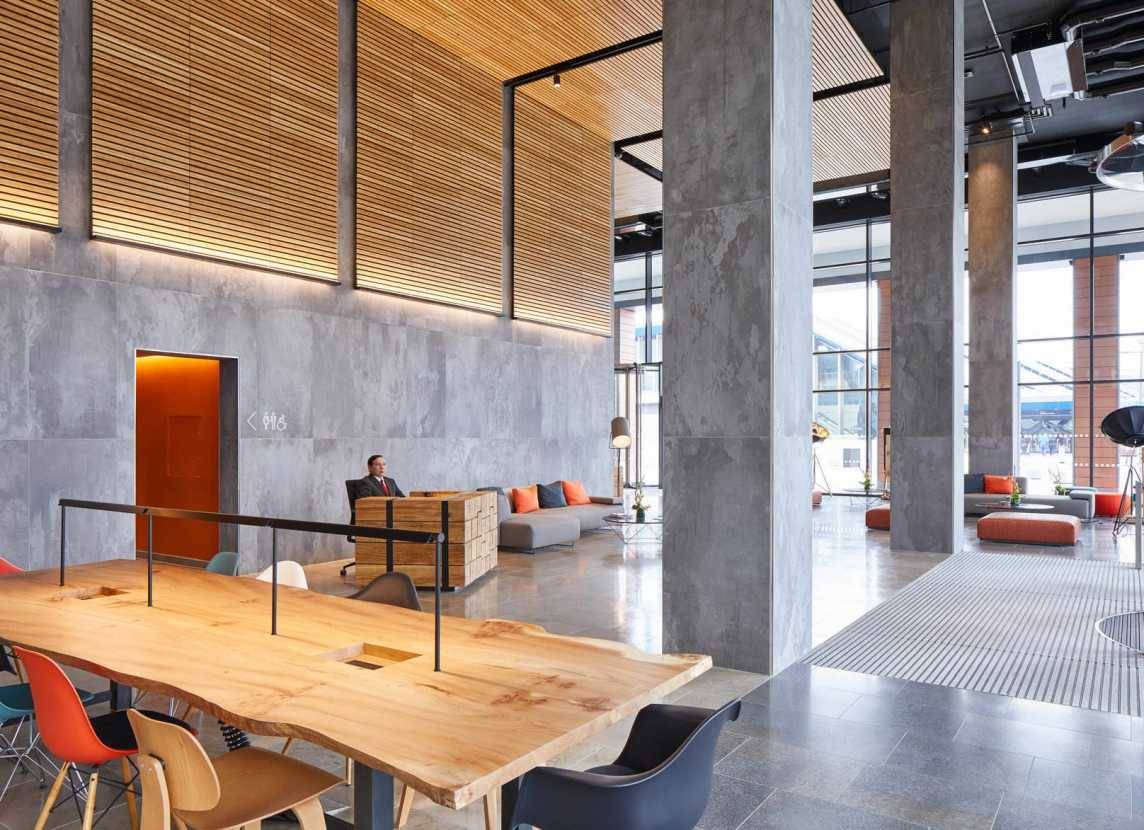

Acoustic timber panels for wooden slatted walls in a vast range of finishes for internal applications.

Jump to:
+44 (0)118 934 4155 Website

Application

For internal wall lining applications.

Acoustic Panelling (up to Class A rated).

Anti-viral Coating / Infection Control.

Euroclass B Reaction to Fire panels.

Pre-tested options and project specific testing available.

Description

BCL acoustic timber wall panels offer exceptional design and performance flexibility for wooden slatted wall areas.


BCL's open-configurable approach offers thousands of design options, whilst harnessing the efficiency benefits of prefabrication, to deliver high-performance acoustic timber panels, sized according to layouts - removing any cutting or modification on site and allowing faster, more efficient installation with less on-site waste.


Three different fixing systems are available for timber wall panels, depending on your systems type and preference:

  • Direct fix - Acoustic panels are screwed back to timber battens. Panel screws are PPC coated same as fabric colour and fixed at 600 mm ccs in between gaps.
  • Cover batten - Often used for vertical timber wall panels - each acoustic panel is fixed direct to the timber studs or SW timber bearers, through slat gaps. This system allows to use a secret fixing system to avoid any visible screw or nail.
  • Wall rail - Wall Panels are stacked upon each other via the male-female rail and screwed back to vertical metal studs or SW timber bearer, or into a blockwall.


Features and benefits:

  • Full systems fire testing to EN 13501-1.
  • BIM level 4 full system design (in Revit or similar).
  • SIDOS Compliant ‘Bomb-blast’ grids available.
  • Flexible panel sizes to suit layouts - no cutting = < 1% waste.
  • Secret-fixings - wood slats age better and coatings last longer.
  • Solid wooden slats - natural variation and beauty.
  • FSC® and PEFC certified - Full BREEAM Mat03 credits.
  • High recycled content (typically 20%).
  • High natural/organic content (typically 65%).
  • Bespoke fire retardant colour coatings.
  • Coloured acoustic fabrics.
  • Anti-viral/ bacterial infection control options.
  • Direct installation service.

General information

Color

Beige

Black

Blue

Bronze

Brown

Show more

Finish

Woodgrain

Veneered

Wood grain

Anti-graffiti

Anti-microbial

Show more

Material

Wood

Timber

Polyester fibre (PET)

Aluminium

Shape

Rectangle

Square

Other

Elliptical

Oval

Show more

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

30 year

Uniclass

Ss_25_25_75_05 Acoustic panel lining systemsPrimary

CAWS

K13/160 Proprietary

K13/160 Proprietary

K13/170 Acoustic panel lining

K13/170 Acoustic panel lining

Specification data - Acoustic panel lining systems

System performance

-

Manufacturer guidance

Up to Class A acoustic performance (BS EN ISO 11654:1997) Up to Euroclass B-s2,d0 Reaction to Fire (EN13501-1) pre-tested options available. Please contact BCL for further information.

Battens

Direct fix.

Guidance for specification option:

Panels are fixed to wall using painted screws (matching fabric colour), located in between timber slats @ 600 mm ccs.

Cannot be used for 'closed board' systems.

BCL Wall Rail.

Guidance for specification option:

Panels are hung on to wall using a male-female carrier rail.

Additional cost typically £10 / sqm.

Cover batten.

Guidance for specification option:

Panels are fixed to wall and a timber 'cover slat' is bradnailed over panel junction to hide screws @ 600 mm ccs.

Can only be used for systems w/ 19 mm thick timber slats.

Acoustic insulation

Acoustic fabric + 25 mm insulation at 45 kg/m3.

Acoustic fabric + 50 mm insulation at 45 kg/m3.

12 mm MDF backing board (reflective).

Guidance for specification option:

Any RAL colour (reflective).

Open-screen.

Manufacturer guidance

The acoustic fabric runs behind the timber slats and comes in several available ranges, varying in colours, texture and thickness. Multiple colours can also be combined across a system to generate distinctive looks or align with your client’s brand colours.

Panelling

-

Type

19 mm wide x 19 mm deep slats + 11 mm gap.

Guidance for specification option:

Class A acoustic.

19 mm wide x 44 mm deep slats + 21 mm gap.

Guidance for specification option:

Class A acoustic.

19 mm wide x 69 mm deep slats + 56 mm gap.

Guidance for specification option:

Class A acoustic.

19 mm wide x 94 mm deep slats + 51 mm gap.

Guidance for specification option:

Class A acoustic.

25 mm wide x 94 mm deep slats + 70 mm gap.

Guidance for specification option:

Class A acoustic.

25 mm wide x 119 mm deep slats + 95 mm gap.

Guidance for specification option:

Class A acoustic.

44 mm wide x 19 mm deep slats + 11 mm gap.

Guidance for specification option:

Class D acoustic.

44 mm wide x 19 mm deep slats + 16 mm gap.

Guidance for specification option:

Class C acoustic.

44 mm wide x 19 mm deep slats + 21 mm gap.

Guidance for specification option:

Class B acoustic.

44 mm wide x 19 mm deep slats + 31 mm gap.

Guidance for specification option:

Class A acoustic.

44 mm wide x 44 mm deep slats + 16 mm gap.

Guidance for specification option:

Class C acoustic.

44 mm wide x 44 mm deep slats + 21 mm gap.

Guidance for specification option:

Class B acoustic.

44 mm wide x 44 mm deep slats + 31 mm gap.

Guidance for specification option:

Class A acoustic.

44 mm wide x 144 mm deep + 106 mm gap.

Guidance for specification option:

Class A acoustic.

44 mm wide x 144 mm deep + 156 mm gap.

Guidance for specification option:

Class A acoustic.

69 mm wide x 19 mm deep slats + 21 mm gap.

Guidance for specification option:

Class C acoustic.

69 mm wide x 19 mm deep slats + 36 mm gap.

Guidance for specification option:

Class B acoustic.

94 mm wide x 19 mm deep slats + 8 mm gap.

Guidance for specification option:

Class D acoustic.

144 mm wide x 19 mm deep slats + 11 mm gap.

Guidance for specification option:

Class D acoustic.

Random width 25, 44 & 94 mm wide slats + 15 mm gap.

Guidance for specification option:

Class C acoustic.

Random width 25, 44 & 94 mm wide slats + 22 mm gap.

Guidance for specification option:

Class B acoustic.

Random width 25, 44 & 94 mm wide slats + 31 mm gap.

Guidance for specification option:

Class A acoustic.

Surface material

Solid timber.

Surface finish

Smooth.

Fasteners

Secret fixings.

Third-party certification

Not required.

FSC certified.

PEFC certified.

Manufacturer guidance

Please contact BCL to determine which timber is certified FSC® or PEFC according to your requirements.

Profile

Square edge.

Rounded.

Triangular.

Multiple.

Guidance for specification option:

Multiple shapes can be combined to create varying textures in wood. Insert requirements.

Timber species

Ash (US).

Ash (EU).

Ash (UK).

Western Red Cedar.

Larch (EU).

Show more

Fabric colour

Plain - Ash.

Plain - Grey.

Plain - Lemon.

Plain - Lilac.

Plain - Orange.

Show more

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

BCL panels are easily demountable to be re-purposed or recycled at end of service life. Panels are simply unscrewed / demounted and each component (Timber, Polyester fabric, PPC Aluminium) can be easily separated and recycled individually. Typically 90-95% of any system can be easily recycled.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

30 %

Guidance for specification option:

Typically. Varies depending on panel configuration. BCL can provide exact recycled / organic / carbon content on request, specific to each project / order.

Manufacturer guidance

Recycled content typically varies between 20% - 30% , depending on volume of timber used.


The recycled component comes from the Aluminium used within a panel system generally.


Carbon offsetting / reduction comes from using more timber (which is virgin organic and not recycled, lowering recycled content)


BCL can provide full recycled / organic & carbon analysis on every system order -- please contact BCL for more information on your system configuration.

Third party certifications

Constructionline Gold

Constructionline Gold

Construction Line (Gold Certification)

FSC

FSC

FSC Chain - of - Custody Certification (TT-COC-006412)

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001 : 2015 - Quality Management Systems

PEFC

PEFC

PEFC Chain - of - Custody Certification (BMT-PEFC-COC-1589)

Constructionline

Constructionline

Social Value Certificate

Health & Safety Accreditation

Health & Safety Accreditation

SSIP Acclaim - Health & Safety Accreditation

TRADA

TRADA

TRADA / Timber Development UK Certificate

Health & Safety Accreditation

Health & Safety Accreditation

TSHP - Risk Management

Fleet Operator Recognition Scheme

Fleet Operator Recognition Scheme

FORS (Bronze) Certification

Grown in Britain - GiB

Grown in Britain - GiB

Grown in Britain - GiB - UK Chain - of - Custody Certification
