Acoustilay Tilemat - Flooring Underlay
Verified by manufacturer 19 days ago
Alcumus SafeContractor
Certificate type
Acoustic insulation for tiled floors.
Application

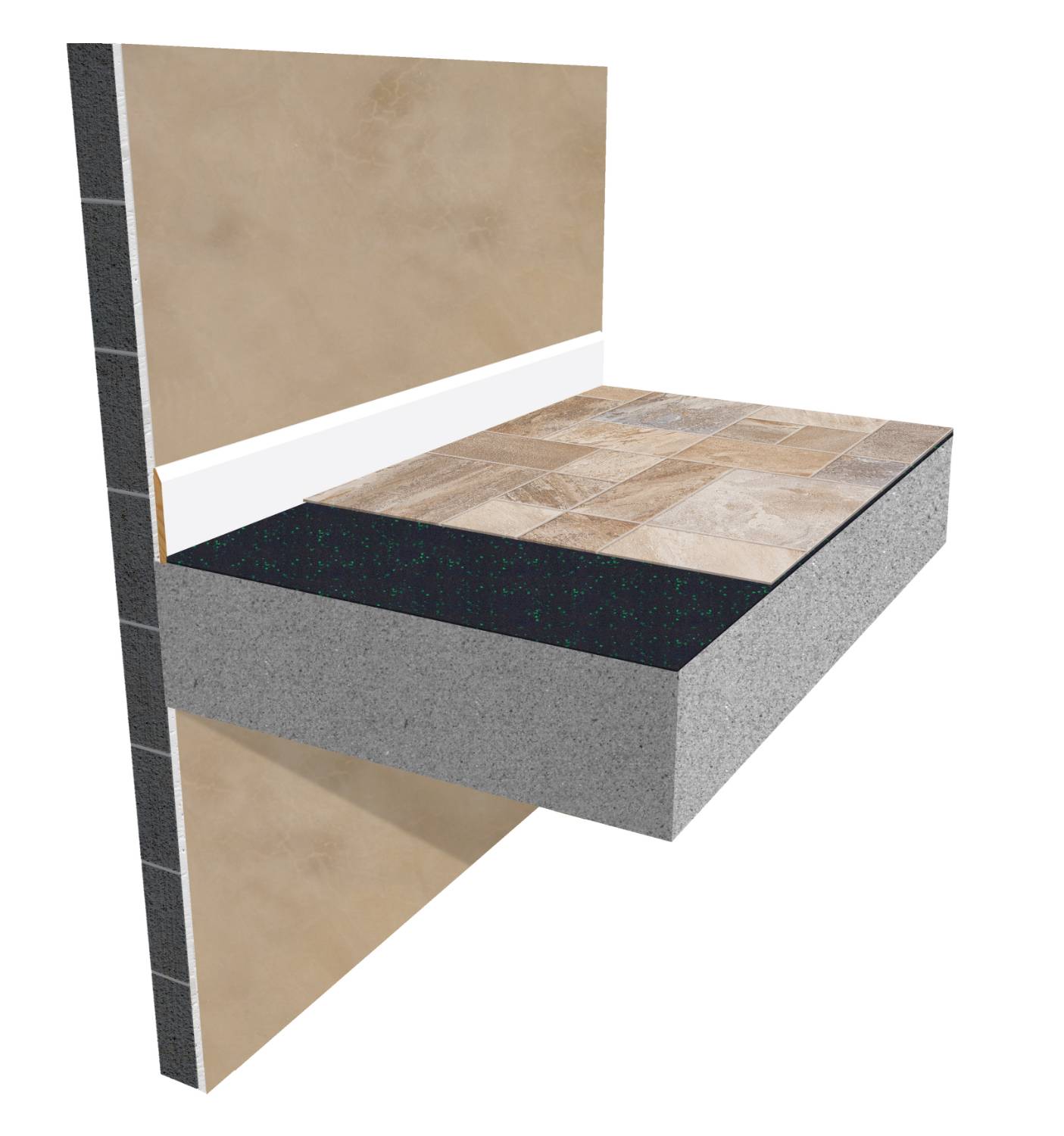

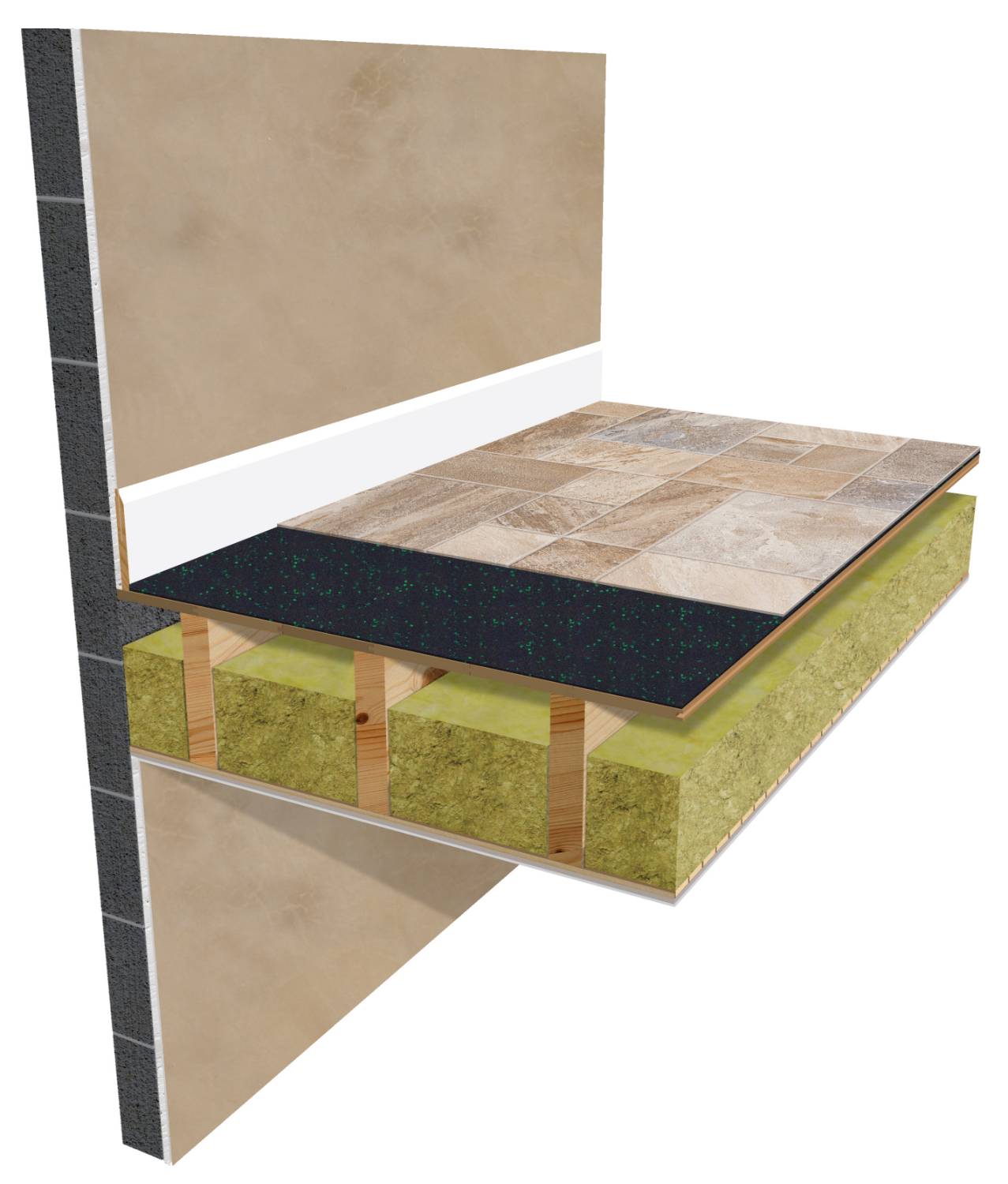

Specifically designed for installation under ceramic and stone floor tiles in new build, conversion and refurbishment projects.
Description
A unique acoustic flooring system allowing for the installation of ceramic and stone floors directly onto its surface. Manufactured from recycled rubber and EDPM, the product is designed to give long lasting impact sound insulation performance whilst giving sufficient stability for ceramic or stone tile floor finishes.
Features and benefits:
- High acoustic performance.
- Easy to install.
- Can be tiled on directly.
- Minimal thickness - 10 mm.
- Supplied with specialist, flexible adhesive.
- Suitable for use in wet areas.
General information
Color | Black |
Finish | Unfinished |
Material | Rubber EPDM |
Shape | Rectangle |
Length | 5000 mm |
Width | 1250 mm |
Height | 10 mm |
Uniclass | |
CAWS | M40/5 Tiling to M40/110 Tiling to M40/115 Natural stone covering to K21/10 Wood laminate flooring M40/10 Natural stone covering to M51/110 Carpeting |
Specification data - Cellular rubber underlays
Use class | L/U. |
Thickness (minimum) | 10 mm. |
Size: | 5000 x 1250 mm. |
Accessories | TileMat Adhesive. Guidance for specification option: To bond the TileMat to the subfloor. Acoustilay TileMat Tile Adhesive. Guidance for specification option: To bond the tiles to the Tilemat. Two part system comprising 20 kg powder plus 5kg liquid. Manufacturer guidance1200 x 25 mm. |
FlammabilityRating | B2. |
TensileStrength | 0.56 MPa (DIN 53571). |
Elongation at break | ~57% (DIN 53571). |
Density | 820 kg/m³. |
Acoustic performance | Impact ΔLw (dB): 19 dB. (17 dB with Acoustilay Tilemat and ceramic tiles). |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Rubber EPDM |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 90 % |
Third party certifications
Alcumus SafeContractor
SafeContractor Certificate
Alcumus SafeContractor
SafeContractor PQQ Certificate
Literature
SRS Acoustilay TileMat Data Sheet
Acoustilay Tilemat CAD Drawing
Institute of Acoustic Sponsor Certificate
Richard Sherwood MIOA Certificate
