Active Travel Kerb - Highway U - 480-500 - Concrete Kerbs
Verified by manufacturer 3 days ago

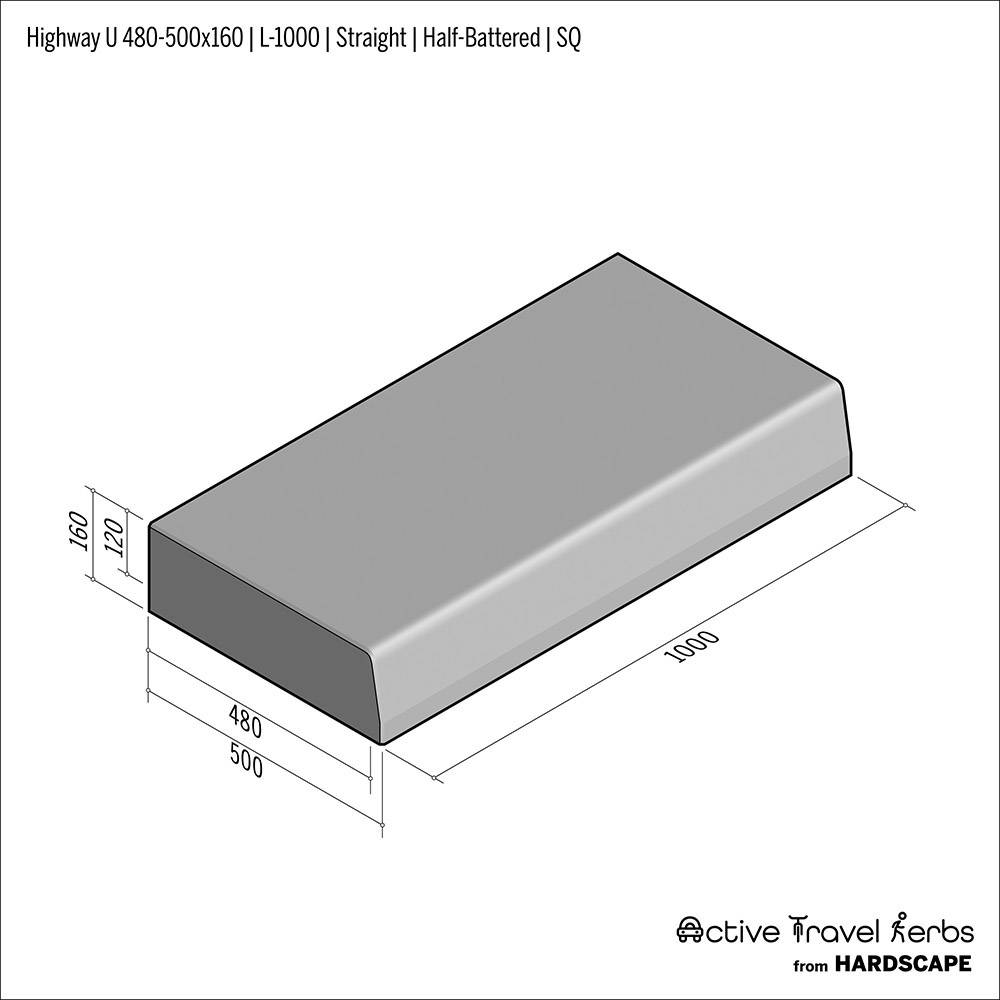

Highway U 480-500x160
Highway U 480-500x160
BRE Certificate
Certificate type
Ethical Trading Initiative (ETI)
Certificate type
Federation Stone GB
Certificate type
Precast and washed concrete kerbs.
Application
Wide robust half-battered kerbs originally designed for the boundary of parking situations as the width provides a wide exit point for stepping out of the vehicle.
Description
Designed and manufactured in Holland, these genuine Dutch kerbs are available in 3 colours of standard concrete and 11 colours of natural stone aggregate topped Kellen Lavaro.
- Precisely manufactured to high tolerances.
- Washed surface provides a high slip resistance from day one of install.
General information
Color | Black Grey Other |
Finish | Coarse |
Material | Precast concrete |
Shape | Rectangle |
Length | 1000 mm |
Width | 500 mm |
Height | 160 mm |
Uniclass | |
CAWS | Q10/112 Precast concrete Q10/150 Concrete block Q10/110 Proprietary precast concrete Q10/10 Precast concrete |
Specification data - Concrete kerbs
Classification data | |
Standard | To BS EN 1340. |
Physical properties | |
Colour | Light Grey Concrete. Dark Grey Concrete. Black Concrete. Grijs Bont 070. Zwart 100. Zwart/Groen 130. Grijs 012. Wit 701. Grijs/Zwart 30. Grijs/Zwart 32. Zwart/Glisando 160. Rood/Zwart 250. Bruin 300. Wit/Zwart 705. |
Finish | Washed. |
Dimensions | 500 x 160 x 1000 mm. |
Recycled content (minimum) | 15%. |
Kerb | 480–500 x 160 mm, Straight, SQ, length 500 mm. 480–500 x 160 mm, Straight, SQ, length 1000 mm. 480–500 x250 mm, Straight, SQ, length 1000 mm. 480–500 x 160 mm, Radius external, 1 m, SQ, length 785 mm. 480–500 x 160 mm, Radius external, 1.5 m, SQ, length 785 mm. 480–500 x 160 mm, Radius external, 2 m, SQ, length 785 mm. 480–500 x 160 mm, Radius external, 2.5 m, SQ, length 785 mm. 480–500 x 160 mm, Radius external, 4 m, SQ, length 785 mm. 480–500 x 160 mm, Radius external, 5 m, SQ, length 980 mm. 480–500 x 160 mm, Radius external, 6 m, SQ, length 940 mm. 480–500 x 160 mm, Radius external, 8 m, SQ, length 960 mm. 480–500 x 160 mm, Radius external, 10 m, SQ, length 980 mm. 480–500 x 160 mm, Radius external, 25 m, SQ, length 980 mm. 480–500 x 160 mm, Radius internal, 4 m, SQ, length 785 mm. 480–500 x 160 mm, Radius internal, 6 m, SQ, length 940 mm. 480–500 x 160 mm, Radius internal, 7 m, SQ, length 910 mm. 480–500 x 160 mm, Radius internal, 8 m, SQ, length 960 mm. 480–500 x 160 mm, Radius internal, 10 m, SQ, length 980 mm. 480–500 x 160 mm, Return corner external, 90°, SQ, length 500 mm. 480–500 x 160 mm, Return corner internal, 90°, SQ, length 1000 mm. 480–500 x 160 mm, Radius external, 90°, 0.6 m, SQ mm. 480–500 x 160 mm, Radius external, 95°, 0.6 m, SQ mm. 480–500 x 160 mm, Radius external, 100°, 0.6 m, SQ mm. 480–500 x 160 mm, Radius external, 105°, 0.6 m, SQ mm. 480–500 x 160 mm, Radius external, 110°, 0.6 m, SQ mm. 480–500 x 160 mm, Radius external, 115°, 0.6 m, SQ mm. 480–500 x 160 mm, Radius external, 120°, 0.6 m, SQ mm. 480–500 x 160 mm, Radius external, 125°, 0.6 m, SQ mm. 480–500 x 160 mm, Radius external, 130°, 0.6 m, SQ mm. 480–500 x 160 mm, Radius external, 135°, 0.6 m, SQ mm. 480–500 x 160 mm, Transition to 500 x 150 mm, SQSQ, length 500 mm. 500 x 150 mm, Transition to 480–500 x 160 mm, SQSQ, length 500 mm. 480–500 x 250 mm, Drop set transition to 500 x 150 mm, left, SQ, length 1000 mm. 500 x 150 mm, Drop set flush, middle, SQ, length 1000 mm. 480–500 x 250 mm, Drop set transition to 500 x 150 mm, right, SQ, length 1000 mm. |
Type | Concrete. Lavaro. |
Weight Range | 100–290 kg. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Netherlands |
Country of product manufacture | Netherlands |
Material | Precast concrete |
A1–A3 ('Production stage') | Embodied carbon as defined in BS EN 15804 |
Normalized unit | 0.11 kg CO₂ eq/kg |
Declared unit | 0.11 kg CO₂ eq/kg Self-declared Lower emissions Manufacturer guidanceSelf declared by manufacturer |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 15 % Guidance for specification option: Minimum. |
Expected Life | 50 year |
Product certifications
BRE Certificate
BES6002_Issue 2
Ethical Trading Initiative (ETI)
Ethical Trading Initiative
Federation Stone GB
Hardscape Group Ltd - Stone Fed - 2022 Certificate
