Active Travel Kerb - Reflector - Concrete Kerb

Name: Active Travel Kerb - Reflector - Concrete Kerb
Brand: Hardscape Products Ltd
SKU: qGrP9iZjzZ1LprkAodrAXA

Verified by manufacturer 12 days ago

Reflector 110-220

Hardscape Products Ltd

Third party certifications:

Constructionline
Certificate type
BRE Certificate
Certificate type
Ethical Trading Initiative (ETI)
Certificate type
Federation Stone GB
Certificate type
ISO 9001 Quality Management
Certificate type

Precast and washed concrete kerb.

Jump to:

+44 (0)1204 565500 Website

Application

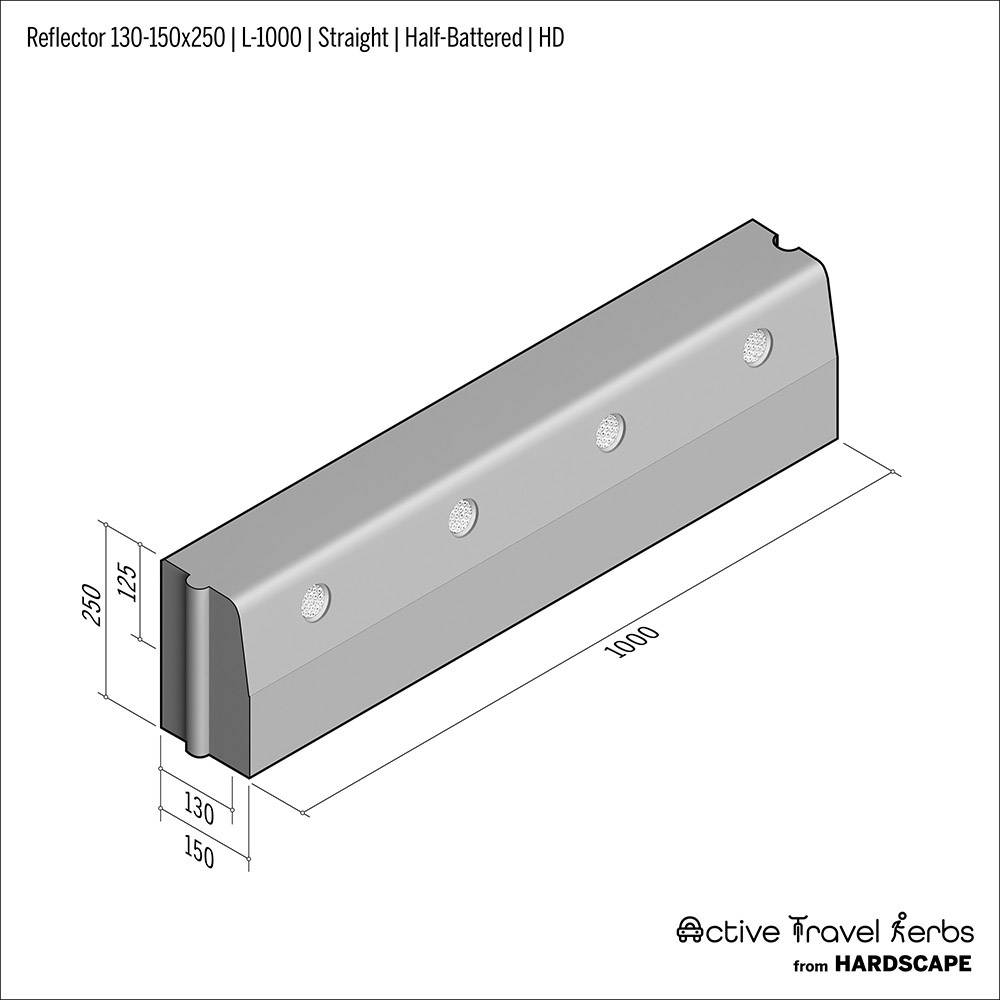

Reflector kerbs are alternative versions of the parent kerb from several of the ATK highway kerb families. They feature 3 or 4 large reflectors embedded into the front face of the kerb. Typically used in situations where the kerb line requires a higher level of visual definition at night time.

Description

Designed and manufactured in Holland, these genuine Dutch kerbs are available in 3 colours of standard concrete and 11 colours of natural stone aggregate topped Kellen Lavaro.

Precisely manufactured to high tolerances.
Washed surface provides a high slip resistance from day one of install.

General information

Color	Black Grey Other
Finish	Coarse
Material	Precast concrete
Shape	Rectangle
Length	1000 mm
Width	330 mm
Height	370 mm 390 mm

Uniclass	Pr_25_93_45_18 Concrete kerbsPrimary
CAWS	Q10/112 Precast concrete Q10/150 Concrete block Q10/110 Proprietary precast concrete Q10/10 Precast concrete

Specification data - Concrete kerbs

Standard	To BS EN 1340.
Physical properties	-
Colour	Light Grey Concrete. Dark Grey Concrete. Black Concrete. Grijs Bont 070. Zwart 100. Zwart/Groen 130. Grijs 012. Wit 701. Grijs/Zwart 30. Grijs/Zwart 32. Zwart/Glisando 160. Rood/Zwart 250. Bruin 300. Wit/Zwart 705.
Finish	Washed.
Dimensions	220x 250 x 1000 mm.
Recycled content (minimum)	15%.

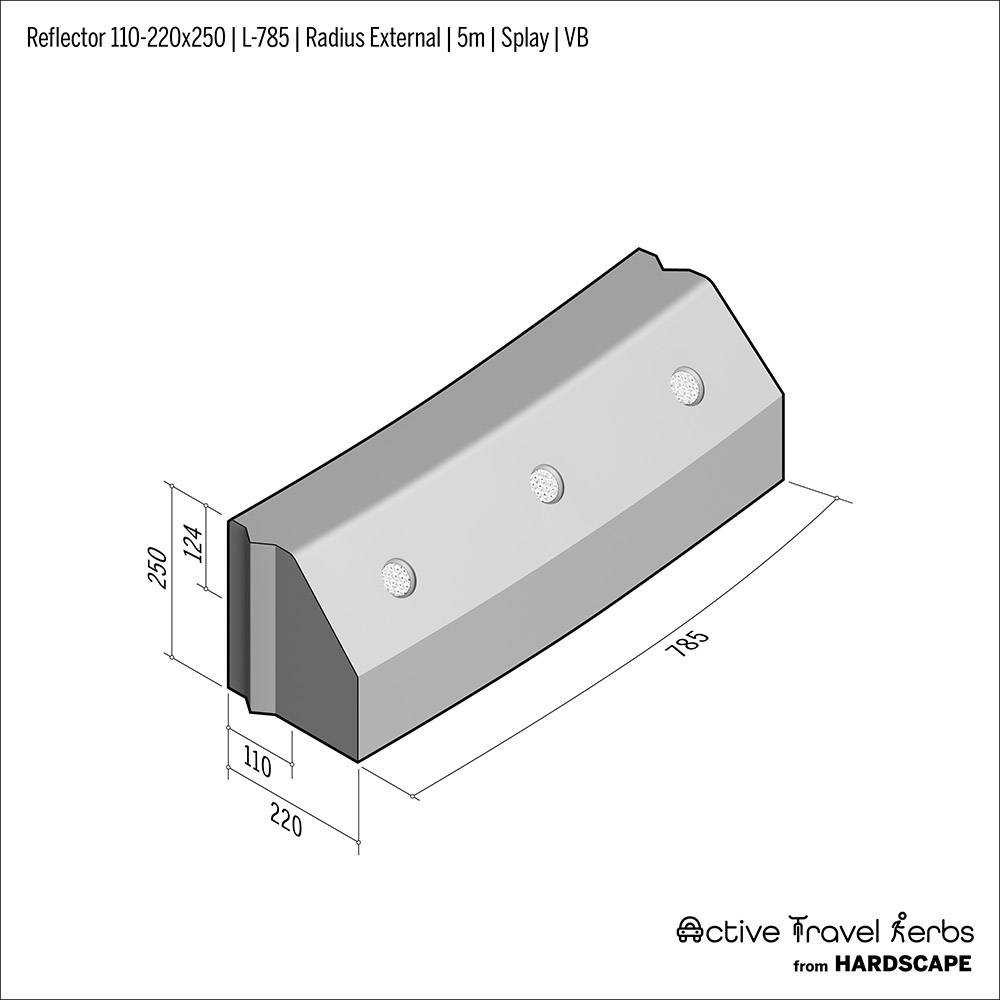

Kerb	110–220 x 250 mm, Radius external, 0.53 m, VB, length 830 mm. 110–220 x 250 mm, Radius external, 0.74 m, VB, length 580 mm. 110–220 x 250 mm, Radius external, 1 m, VB, length 785 mm. 110–220 x 250 mm, Radius external, 2 m, VB, length 785 mm. 110–220 x 250 mm, Radius external, 3 m, VB, length 785 mm. 110–220 x 250 mm, Radius external, 5 m, VB, length 785 mm. 110–220 x 250 mm, Radius external, 6 m, VB, length 785 mm. 110–220 x 250 mm, Radius external, 8 m, VB, length 785 mm. 110–220 x 250 mm, Radius external, 10 m, VB, length 785 mm. Show more
Type	Concrete. Lavaro.
Weight Range	55–91 kg.

Sustainability data

Contains Red List materials	No
Country of material origin	Netherlands
Country of product manufacture	Netherlands
Material	Precast concrete
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	0.11 kg CO₂ eq/kg Self declared Manufacturer guidance Self declared by manufacturer
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	15 % Guidance for specification option: Minimum.
Expected Life	50 year
