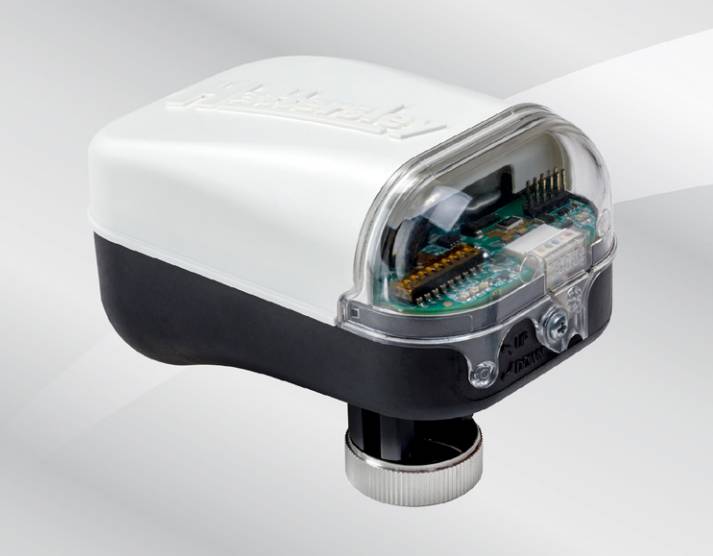

ACTMDBUS Modbus Actuator - Modulating Actuator with Modbus

Verified by manufacturer 22 days ago

Hattersley

Modulating actuator with Modbus, providing reduced commissioning time and costs and system optimisation.

Jump to:
+44 (0)1473 277300 Website

Application

Provision of remote and intelligent valve setting, modulating control and indicated flow rate feedback through a fast and reliable Modbus communication protocol for HVAC applications.

Description

Modulating actuator with Modbus.


Features and benefits:

  • Reduced commissioning time and costs due to remote commissioning via the Building Management System (BMS) or Hattersley configurator tool.
  • System optimization using the indicated flow rate and position feedback.
  • Reduced installation labour and cabling costs due to daisy chaining between actuators.
  • Reduced downtime due to error feedback via the BMS.
  • Optimized system efficiency and user comfort due to fast responding actuator.
  • Isolation function with Class IV leakage when paired with PICV and Hook Up Elite Prime.
  • Linear and Equal Percentage Control – configurable control characteristic to suit different applications.

General information

Color

White

Finish

Smooth

Material

Plastic

Guidance for specification option:

Casing.

Shape

Other

Length

123 mm

Width

76 mm

Height

89 mm

Uniclass

Pr_75_50_02_54 Motor-driven valve actuatorsPrimary
Pr_75_51_52_02 Alternating current (a.c.) semiconductor motor controllers and starters

CAWS

T90/435 Motorized valves

Specification data - Motor-driven valve actuators

Standards

EMC 2014/30/UE according to EN 61326-1:2013.

Actuator type

Electric.

Action

Linear and equal percentage control.

Torque

Force: 300 N.

Stroke

90°.

Operation

Modulating.

Electrical supply

24 V a.c./ d.c.

Guidance for specification option:

±10%.

Transformer sizing: 30 VA.

Consumption: Supercapacitor charging: 12 W; moving: 6 W; holding position: 1.5 W.

Ancillaries

Modbus communication protocol.

Guidance for specification option:

For HVAC applications.

Speed

5 s/mm (default) or 3 s/mm.

Guidance for specification option:

Configurable via Modbus.

Speed in emergency positioning: 3 s/mm.

Ingress protection

IP54.

Weight

0.4 kg.

Operating temperature

-5–55°C.
