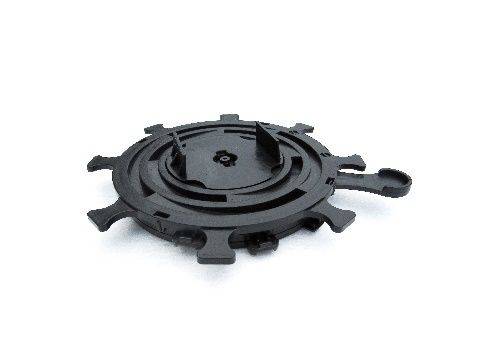

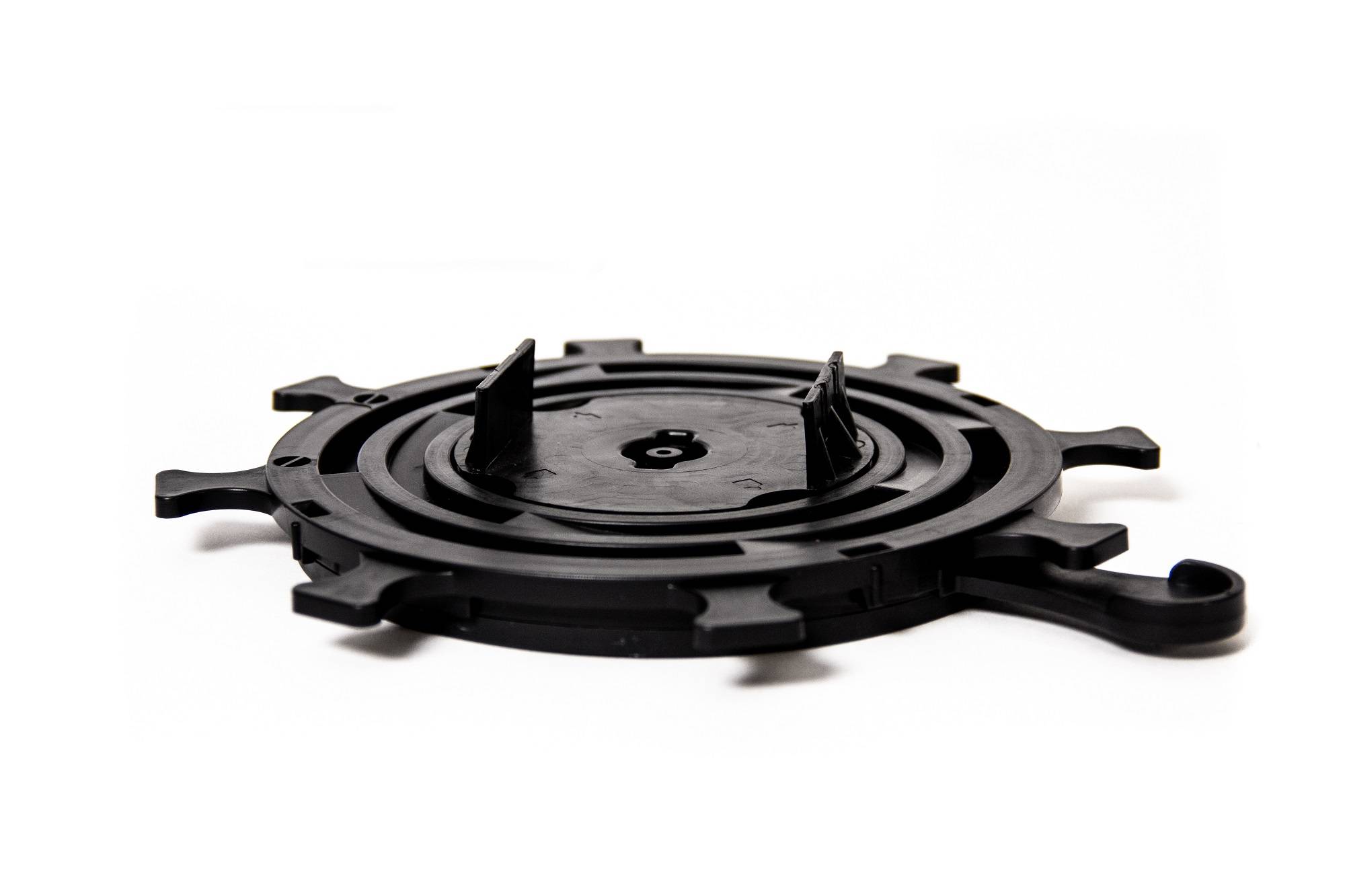

Adjustable Pedestal for Decking - WB Minipad (TD)

Name: Adjustable Pedestal for Decking - WB Minipad (TD)
Brand: Wallbarn Ltd
SKU: aqgQwLU91D1jVZsd9JSgDd

Verified by manufacturer 5 months ago

Third party certifications:

Adjustable low height pedestals covering 10mm to 40mm

Jump to:

Application

Joist rests between cradle headpiece without need for mechanical fixings.

Special smaller height pedestals, suitable for suspended decking systems.

Features and benefits:

Headpieces available for timber decking or paving.
Manufactured from virgin fibre polypropylene, supplied as a mounted unit in boxes together.
Normal weight tolerance: 683 kg; break point: 1171 kg.
Temperature tolerance: +75°C to -40°C.
Adjustable height from 10 to 40 mm.
Suitable for overlaying and very tight height clearances where a fall is still required.
Very small, irregular or multiple changes in height can be accommodated using the twist mechanism on the stem.
All the timber is raised off the deck, avoiding damage to the membrane and keeping all timber out of standing water.
The weight of the paving slab or tile holds the whole system in place.

Color	Black
Finish	Matt
Material	Polypropylene
Shape	Other
Length	150 mm
Width	150 mm
Height	Bespoke Manufacturer guidance 1-25mm, 22-30mm, 37-40mm
Warranty description	15 year Guidance for specification option: Limited warranty for temperature and weight tolerance if installed for the correct purpose and within the recommended guidelines - see Wallbarn terms and conditions of supply.

Uniclass	Pr_20_85_47_22 Decking and paving pedestalsPrimary
CAWS	J21/467 Support system for precast concrete paving slabs J21/85 Precast concrete paving slabs J31/370 Precast concrete paving slabs J31/375 Paving tiles J31/377 Support system for paving slabs or tiles J31/80 Precast concrete paving slabs J41/467 Support system for precast concrete paving slabs J41/90 Precast concrete paving slabs J42/467 Support system for precast concrete paving slabs Q37/460 Support pedestals Q55/110 Deck Q55/395 Support pedestals

Product range	Substructure for Paving and Decking Systems Decking and Substructure Pedestals for Paving and Decking

Pedestal type	Adjustable.
Grade	683 kg. Guidance for specification option: Loading.
Material	Polypropylene.

Height adjustment range	Minipad 10 (with one extension plate): 10–20 mm. Minipad 10-25 (with two extension plates): 10–25 mm. Minipad 22: 22–30 mm. Minipad 28: 28–40 mm. TD Minipad 10 (with one extension plate): 10–20 mm. TD Minipad 10–25 (with two extension plates): 10–25 mm. TD Minipad 22: 22–30 mm. TD Minipad 28: 28–40 mm. Show more
Lugs	Manufacturer's standard. Guidance for specification option: TD decking heads only: Two lugs, 14 x 2 mm, 60 mm apart. 10 x 2 mm. Guidance for specification option: Standard, paving heads only. 10 x 4 mm. Guidance for specification option: Standard, paving heads only. 20 x 2 mm. Guidance for specification option: Standard, paving heads only. 20 x 4 mm. Guidance for specification option: Standard, paving heads only. 20 x 6 mm. Guidance for specification option: Paving heads only. 20 x 8 mm. Guidance for specification option: Paving heads only. 20 x 10 mm. Guidance for specification option: Paving heads only. Show more
Slope correctors	Not required. Required. Guidance for specification option: Consult manufacturer's literature and insert requirements.
Dimensions	Head diameter: 150 mm; Base plate diameter: 150 mm; Side bar height: 40 mm.

Contains Red List materials	No
Country of material origin	Italy
Country of product manufacture	Italy
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	25 %
