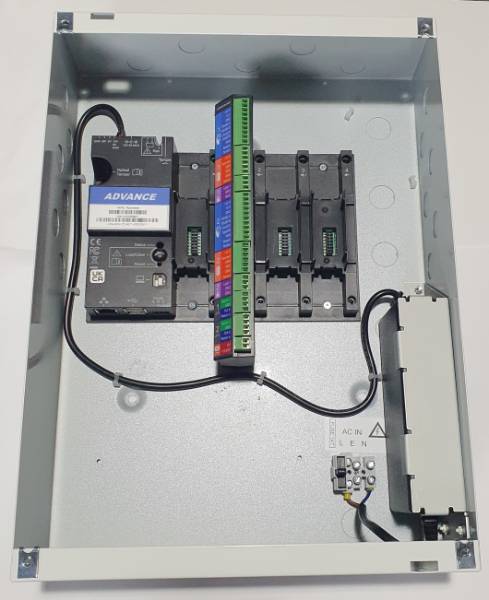

Advance enclosure with an 8A PSU model with fire relays and space for one single or multi-blade controller.
Application
Advance enclosure with an 8A 12V DC power supply designed to house one single or multi-blade controller for use in fire detection and alarm systems.
Description
Advance enclosures and power supplies provide an all-in-one solution to quickly install access controllers in a professional, mild steel, key-locking enclosure with battery-backed power and fire system integration. In addition they provide monitoring via volt-free relay contacts, signalling output failure, low battery voltage and tamper condition.
There are two versions of Advance enclosure: an 8A model with one power supply module and space for one single or multi-blade controller, and a 16 A model with two 8A power supplies for a dual single or multi-blade controller configuration.
Features and benefits:
- All-in-one solution.
- Combines a power supply and relays in a single unit, reducing space and simplifying installation.
- Robust mild steel enclosure.
- 8A power supply unit that provides stable and reliable power for fire alarm systems and connected devices.
- Includes eight individual relay modules.
- Provides visual indicators of system status, including alarms, faults, and maintenance requirements.
General information
Color | Grey |
Finish | Powder-coated |
Material | Steel |
Shape | Rectangle |
Length | 81 mm |
Width | 275 mm |
Height | 380 mm |
Warranty description | One year |
Uniclass | |
CAWS | W53/380 Power supply units W53/380 Power supply units W90/325 Fire detection and alarm control and indicating equipment |
Specification data - Fire detection and alarm power supply equipment
Standby power supply | Not required.12 V VRLA standby battery up to 17 Ah capacity.Guidance for specification option: Optional. |
Enclosure | |
Material | Steel. |
Finish | Powder-coated. |
Colour | Grey. |
Mounting | Surface. |
Monitoring of power supplies | By the CIE. |
Dimensions | 380 x 275 x 81 mm. |
Power supply | 8 A, 12 V.d.c. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Steel |
Third party certifications
ISO/IEC 27001:2022 Information security, cybersecurity and privacy protection — Information security management systems — Requirements
ISO 27001: 2022
ISO 9001 Quality Management
ISO 9001: 2015
Literature
Advanced Enclosures and Power Supplies
