AED Protective Cabinets

Verified by manufacturer 5 months ago

STI-7531AED AED Protective Cabinet with Thumb Lock

Safety Technology International Ltd Variant:

A protective cabinet for Automated External Defibrillator (AED) units.

Jump to:
+44 (0) 1527 520 999 Website

Application

Suitable for AEDs located in public areas where there is a history of misuse of the equipment.

Description

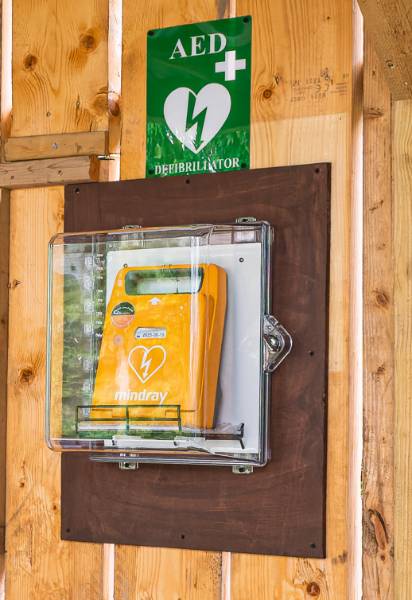

These AED Protective Cabinets allow AED units to remain protected but still highly visible in the event of an emergency. They mount on the wall enabling appliances to be stored in a central location and are capable of housing CPR accessories. These cabinets are secured with a thumb lock, allowing instant access. To further protect against misuse, vandalism and accidental damage, these models are fitted with a sounder and strobe light, drawing immediate attention to the area.


Features and benefits:

  • Three year guarantee against breakage of polycarbonate in normal use (one year on electromechanical and electronic components).
  • Tough UV-stabilised polycarbonate housing can withstand the severest of knocks.
  • External mounting tabs allow the enclosure to be easily installed onto any wall surface.
  • Includes mounting hardware. Optional gasket and tamperproof mounting screws available.
  • Supplied with coated steel internal mounting backplate and wire shelf as standard.
  • Choice of 95 dB audible siren alarm or a 100 dB strobe/siren with flashing beacon, both powered by a 9V PP3 battery.

General information

Color

Clear

Material

Polycarbonate

Shape

Rectangle

Length

164 mm

Manufacturer guidance

Internal depth.

Width

310 mm

Manufacturer guidance

Internal dimension.

Height

419 mm

584 mm

597 mm

Warranty description

One year

Three year

Manufacturer guidance

Three year guarantee against breakage of polycarbonate in normal use (one year on electromechanical and electronic components).

Uniclass

Pr_80_77_28_66 Equipment protection cabinetsPrimary

Specification data - Equipment protection cabinets

Accessories

None.

AED-LBL AED Label (2 no.).

KIT-H19032 Replacement Key for Siren Alarm.

KIT-H19016 Replacement Tamper Tool for Siren Alarm.

KIT-H18075 Replacement Key for Strobe/Siren Alarm.

KIT-G6297530 Optional gasket.

Integral accessories

Thumb Lock and KIT-W07530 Wire shelf for STI-7530 Series.

Sustainability data

Material

Polycarbonate

Manufacturing plant location
