Air Bricks - cast iron and aluminium 9" x 6" (225 mm x 150 mm) rectangular. External or internal ventilation airbrick. - Cast Iron and Aluminium Air Bricks
Verified by manufacturer 4 months ago

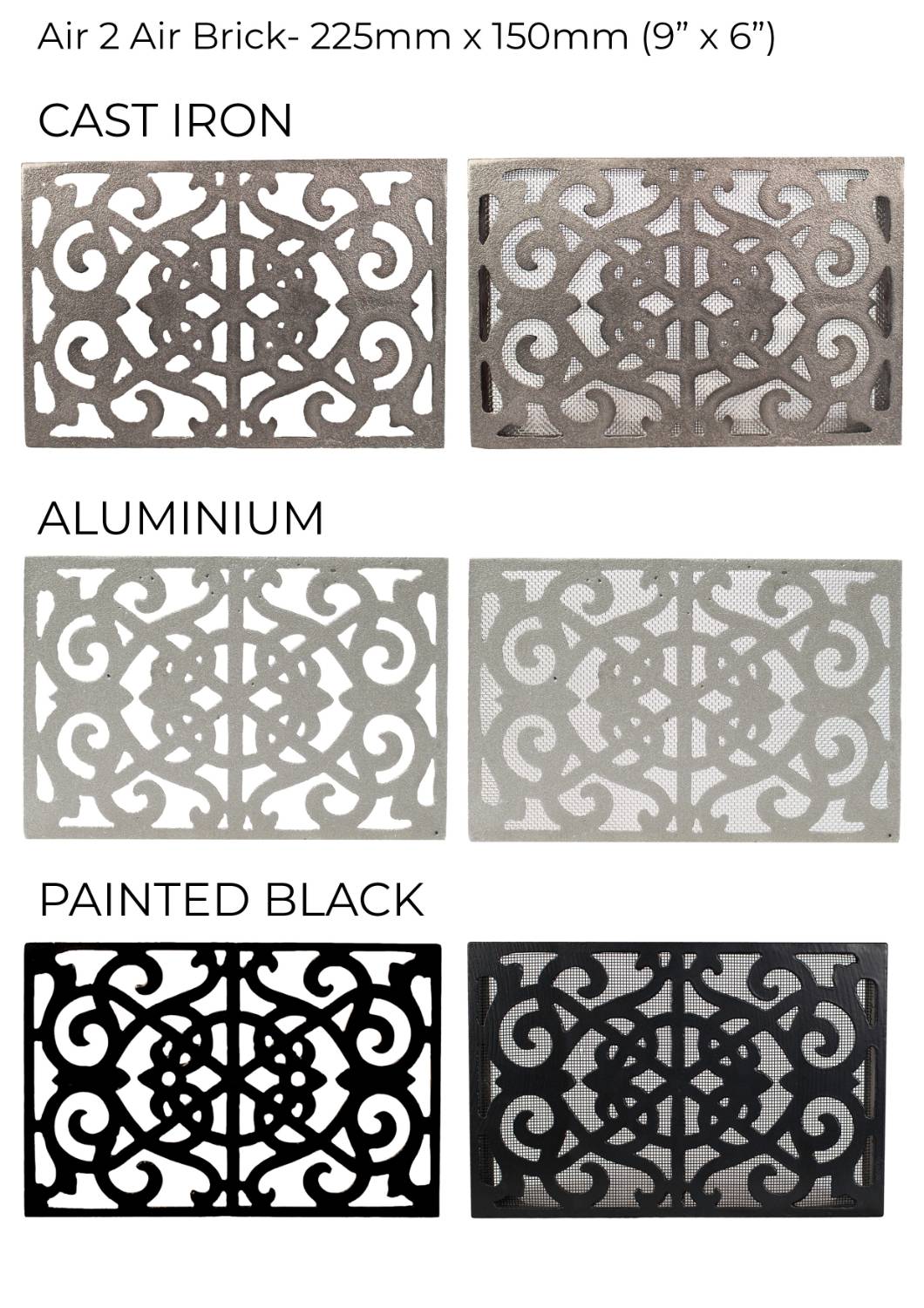

Air 2: 225 x 150 mm - Cast Iron (1.63 kg)
Air 2: 225 x 150 mm - Cast Iron (1.63 kg)
Cast iron and aluminium air bricks.
Application
Suitable for internal and external use.
Description

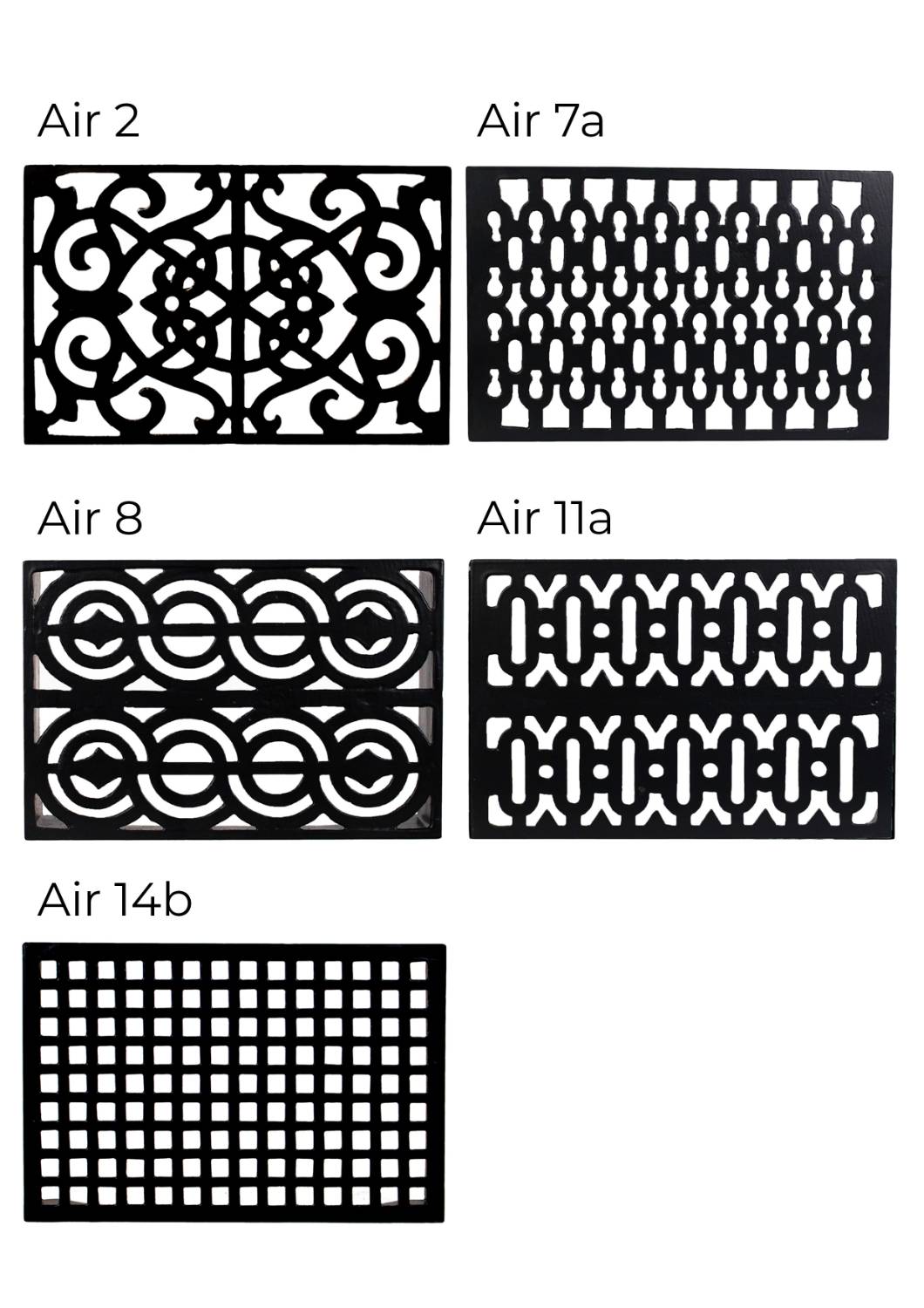

Range of traditional cast iron and aluminium air bricks in various patterns and sizes.
Features and benefits:
- Available in cast iron and aluminium with a choice of finishes.
- Can be painted to a specific RAL colour, subject to an additional fee.
- Special colour matches are available and are subject to minimum order levels.
General information
Color | Black Silver Other |
Finish | Primed Painted Other |
Material | Cast iron Aluminium |
Shape | Rectangle |
Length | 142 mm 150 mm 151 mm 152 mm 158 mm |
Width | 219 mm 223 mm 225 mm 228 mm |
Height | 36 mm 50 mm 53 mm 60 mm 67 mm |
Uniclass | |
CAWS | F30/160 Airbricks in external walling F30/15 Airbricks in external walling |
Specification data - Airbricks
Apertures | Other.Guidance for specification option: Patterned. |
Work sizes | 225 x 150 mm. |
Material | Cast iron. |
Colour | Black.Natural.RAL.Guidance for specification option: Can be painted to a specific RAL colour, subject to an additional fee. Consult manufacturer and insert requirements. Match adjoining masonry.Guidance for specification option: Special colour matches are available and are subject to minimum order levels. Consult manufacturer and insert requirements. |
Depth | 60 mm. |
Weight | 1.63 kg. |
Free area | 142.71 cm². Guidance for specification option: 42.3%. |
FaceArea | 337.5 cm². |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Cast iron Aluminium |
Recyclability | 96% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % Guidance for specification option: 50-100% variable |
Literature

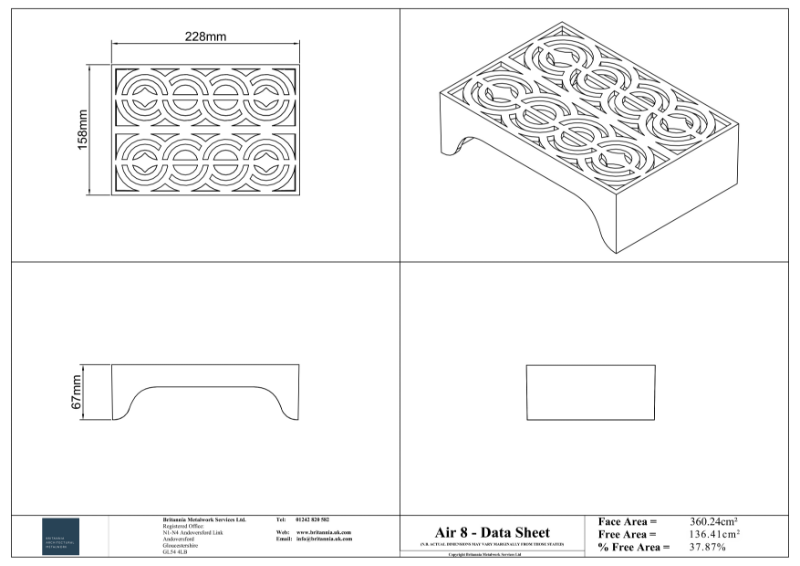

Air 8 Air Brick Datasheet

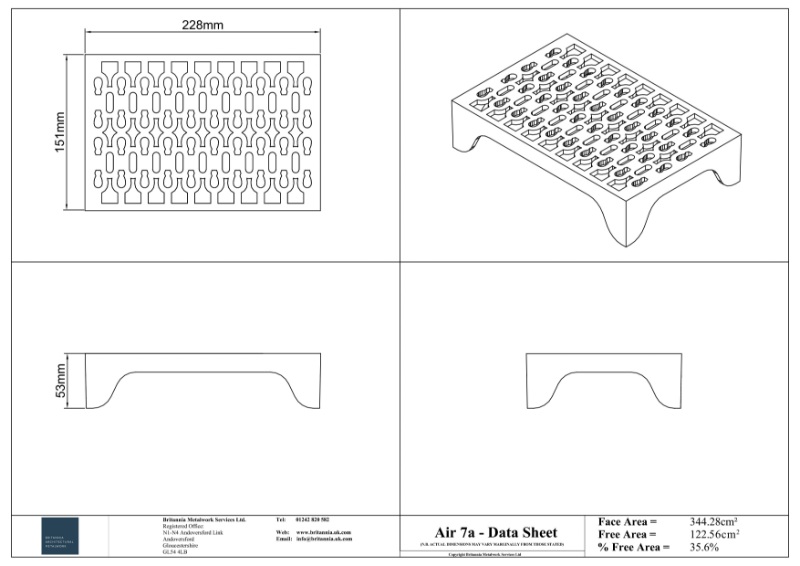

Air 7a Air Brick Datasheet
Air 2 Air Brick Datasheet

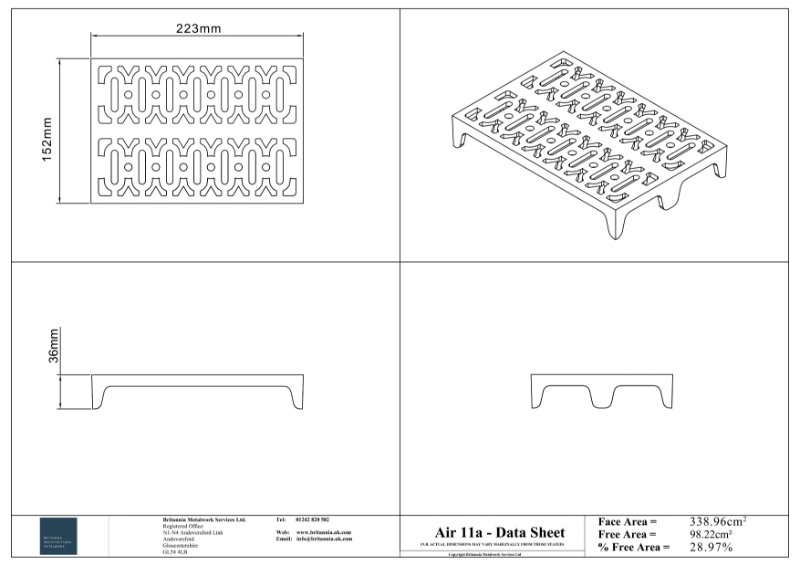

Air 11a Air Brick Datasheet

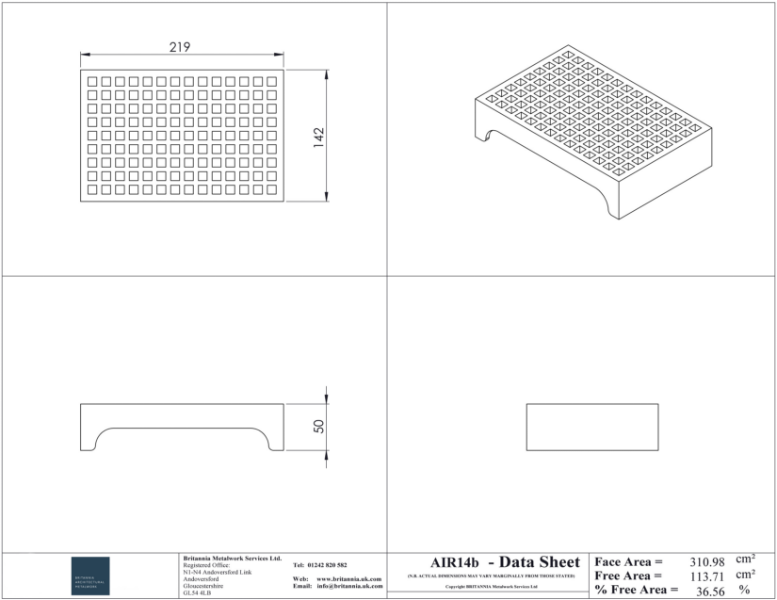

Air 14b Air Brick Datasheet
