AIRTRAK® IM Insect Mesh - Roof Ventilation System
Verified by manufacturer 9 days ago
ISO 9001 Quality Management
Certificate type

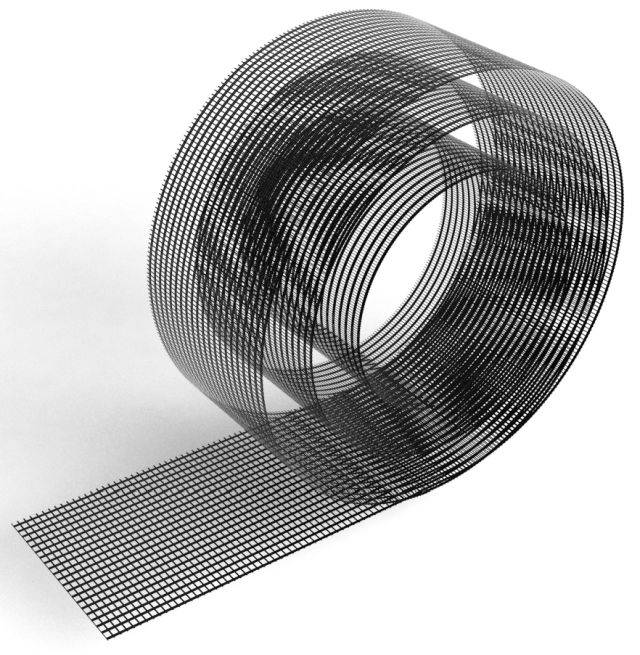

Insect mesh for use in any roof ventilation apertures.
Application
Roof applications; for use in any roof ventilation apertures.
Description
Insect mesh for use in any roof ventilation apertures.
Features and benefits:
- Increased size of the mesh provides optimum airflow whilst excluding unwanted insects from the roof void.
- Ventilation free open area of 66%.
- Can be ordered by the metre.
Installation:
To be cut to the required length and fastened into position using non-ferrous staples or nails. Consult manufacturer's literature for further details.
General information
Color | Black |
Finish | Metallic |
Material | Glass Reinforced Plastic (GRP) |
Width | 75 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | N16/320 Mesh screens L10/59 Solar shading system L10/680 Solar shading system |
Specification data - Insect guard mesh
Material | Glass reinforced plastic (GRP). |
Finish | Vinyl coated. |
Length | Guidance for specification option: Insert requirement. |
Width | 75 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Glass Reinforced Plastic (GRP) |
Recyclability | Recyclable at end of life |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 50 % |
Expected Life | 30 year |
Third party certifications
ISO 9001 Quality Management
