Alavo Vanity Troughs

Verified by manufacturer 2 months ago

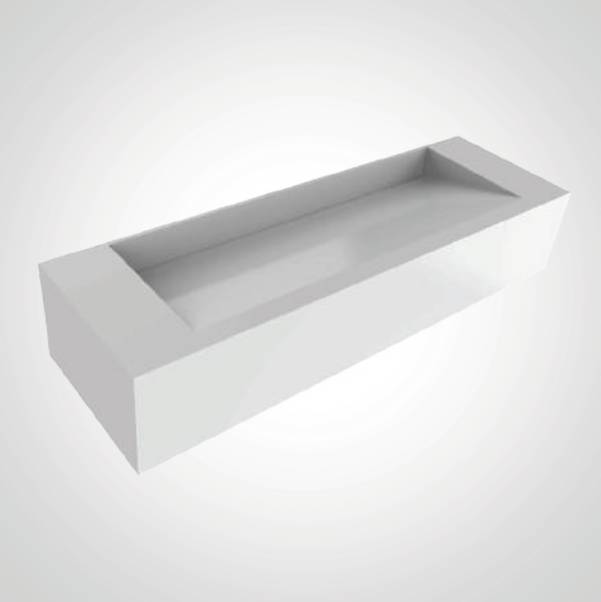

Eclipse Vanity Trough

Dolphin Solutions Variant:

Vanity wash troughs suitable for integration into Alavo wash-stations.

Jump to:
+44 (0)1424 202224 Website

Application

Suitable for use in commercial and dwelling bathrooms and WC applications.

Description

Dolphin's range of commercial wash troughs with stain resistance, repairability, and renewability, ensuring long-term usability. A front fascia conceals the waste trap. Available options include models with inclined watershed zones or flat bases, providing flexibility in design choices.


Features and benefits:

  • Cover corner details.
  • Moulded waste chutes.
  • Removable waste retainers.
  • Single integrated basins.
  • Integration with Alavo wash-station.
  • Multi-user units.

General information

Color

Other

Shape

Rectangle

Length

Bespoke

Width

314 mm

400 mm

497 mm

500 mm

Height

150 mm

200 mm

250 mm

Warranty description

Ten year

Uniclass

Pr_40_20_96_42 Integral washbasins and vanity topsPrimary

CAWS

N13/341 Vanity tops with formed washbasins

Specification data - Integral washbasins and vanity tops

Form

Trough.

Materials

-

Tops

-

Body

Eclipse vanity trough.

Finish and colour

Guidance for specification option:

Consult manufacturer for tailored solutions for finish and colour and insert requirements.

Size

-

Tops

400 x 250 mm.

Manufacturer guidance

Depth x height.

Water supply, overflow and waste holes

-

Water supply

No tap holes.

Overflow

No overflow hole.

Waste

Hidden waste.

Fascia

Integrated fascia.

Guidance for specification option:

Conceals waste traps.

Accessories

Not required.

Alavo Mirror System.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

3.53 kg CO₂ eq/unit

Self declared

Literature

Dolphin Alavo Brochure 2024

Dolphin Alavo Brochure 2024
