Ali VU Door
Verified by manufacturer 2 months ago

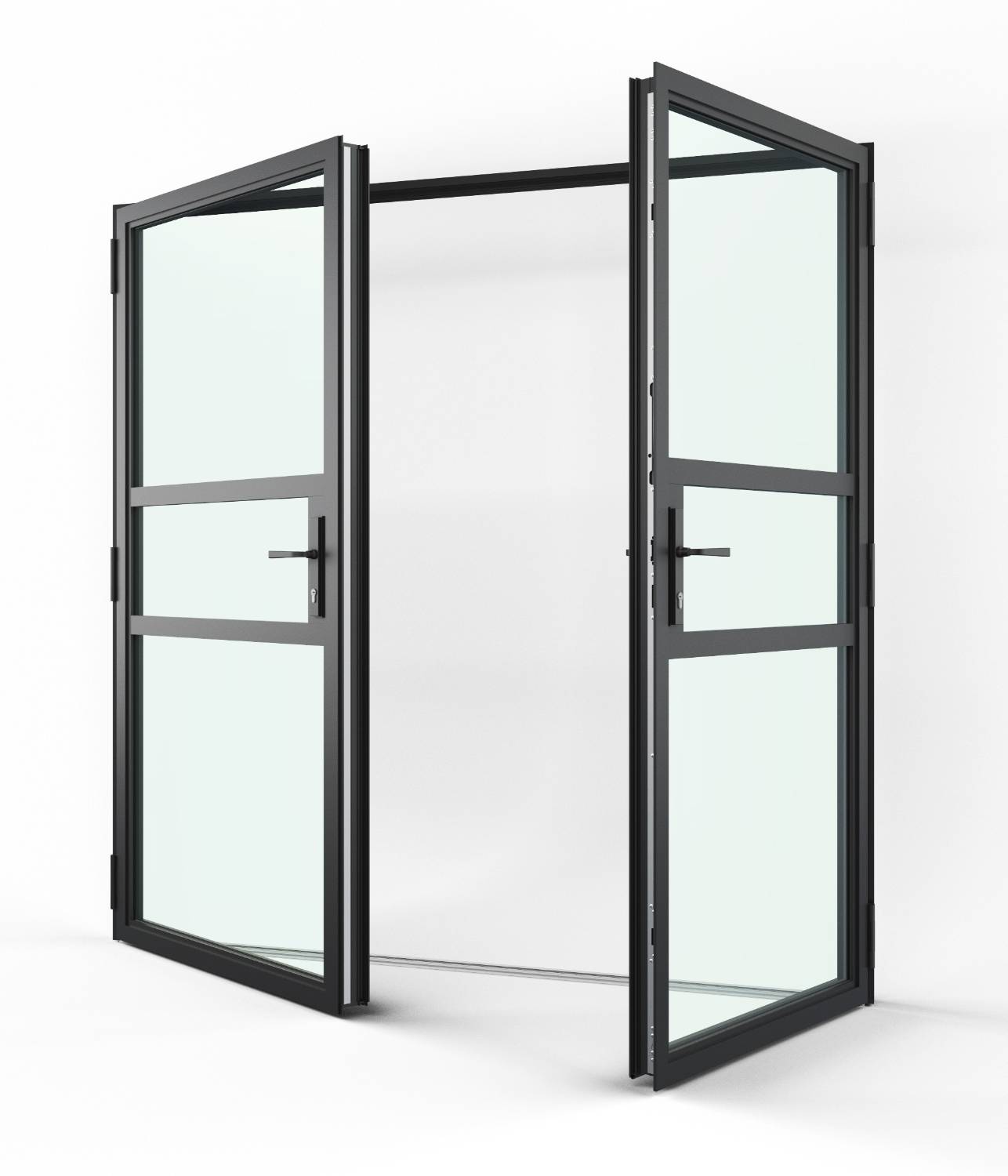

Ali VU Double Door (Double Glazed)
Ali VU Double Door (Double Glazed)
UKAS
Certificate type
Aluminium door system.
Application
Suitable for domestic use or on projects where a heritage look is required, Ali VU doors and are fully compatible with all Ali VU windows and SF curtain walling.
Description
The Ali VU door system is an aluminium door system designed to meet the security requirements of PAS24 for external use. It has a high thermal efficiency, enabling the door to be Document L compliant. The door has a maximum size of 1200 mm wide and 2500 mm high with a weight of 125 kg per door leaf.
Features and benefits:
- High-performance polyamide thermal barrier providing thermal transmittance (U-values) as low as 1.0 W/m²K.
- Standard leaf sizes are available up to 1200 x 2500 mm, weight up to 125 kg.
- Double or tripled glazed options available.
- Constructed using mitred corners, joined with Crimped alignment chevrons assist in clean, accurate mitres. A proprietary sealant is used on all metal joints.
- Glazing up to 44 mm thick.
- Thermal barriers: Polyamide manufactured in accordance with PA66 GF25.
- Gaskets manufactured in accordance with BS ISO 3302-1.
- Life expectancy of 40 years.
- Fully compliant with BS EN ISO 9001, BS EN ISO 14001, ISO 45001 and BES 6001 standards.
- Security tested to PAS24.
- Manufactured in the UK.
General information
Color | Black Grey White Other |
Finish | Powder-coated Anodized Mill |
Material | Aluminium Polyamide Stainless steel |
Shape | Square Rectangle |
Length | Bespoke |
Width | Bespoke Guidance for specification option: Maximum 1200 mm. |
Height | Bespoke Guidance for specification option: Maximum 2500 mm. |
Uniclass | |
CAWS | H11/135 Doors L20/55 Doorsets L20/480 Doorsets |
Specification data - Aluminium doorsets
Standard | To BS 6375-1 and 2. |
Configuration | Double-leaf, single-action, inward opening.Double-leaf, single-action, outward opening. |
Doorset size | Manufacturer guidance
Insert requirements. |
Performance | |
Thermal | 1.4 W/m²K. |
Intruder resistance | |
Minimum requirement | To PAS 24. |
Frame | |
Material | Aluminium.Guidance for specification option: Framing sections: Extruded aluminium alloy 6060 or 6063 T6 to BS EN 755-9 or BS EN 12020-2. |
Threshold | Manufacturer's standard. |
Finish | |
Coating | Anodized, satin.Guidance for specification option: To BS 3897, 25 µm (minimum), satin finish available in a limited range of colours. Contact manufacturer for details and insert colour requirements. Anodized, polished.Guidance for specification option: To BS 3897, 25 µm (minimum), polished finish available in a limited range of colours. Contact manufacturer for details and insert colour requirements. Powder coating to BS EN 12206-1.Guidance for specification option: Finished to a minimum of 40 µm (minimum) or enhanced to suit project requirements. Contact manufacturer for enhancement details. Mill. |
Colour | Manufacturer guidanceInsert colour requirement, available in a limited range, consult manufacturer for details. |
Installation fasteners | A2 stainless steel screws. |
Door leaf | |
Core | Manufacturer's standard. |
Perimeter seals | Manufacturer guidanceA proprietary sealant is used on all metal joints. Contact manufacturer for further details. |
Glazing | |
Type | Double glazed. |
Finish | |
Coating | As frame.Anodized, satin.Guidance for specification option: To BS 3897, 25 µm (minimum), satin finish available in a limited range of colours. Contact manufacturer for details and insert colour requirements. Anodized, polished.Guidance for specification option: To BS 3897, 25 µm (minimum), polished finish available in a limited range of colours. Contact manufacturer for details and insert colour requirements. Powder coating to BS EN 12206-1.Guidance for specification option: Finished to a minimum of 40 µm (minimum) or enhanced to suit project requirements. Contact manufacturer for enhancement details. Mill. |
External colour | Manufacturer guidanceInsert colour requirement, available in a limited range, consult manufacturer for details. |
Internal colour | Manufacturer guidanceInsert colour requirement, available in a limited range, consult manufacturer for details. |
Weight | 125 kg per door leaf (maximum). |
Thickness | Manufacturer guidance24–44 mm. Insert requirements. |
Thermal protection | Polyamide high performance thermal barrier. Guidance for specification option: Manufactured in accordance with PA66, GF25 and Document L compliant. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Aluminium Polyamide Stainless steel |
Expected Life | 40 year |
Third party certifications
UKAS
ISO 14001
UKAS
ISO 45001
UKAS
ISO 9001
Literature
Ali VU Door System - Technical Datasheet
