AliDeck Eco 50 Decking Support Joist
Last verified by manufacturer 6 months ago
Mill finish
Mill finish
UK Conformity Assessed (UKCA)
Certificate type
CE Marking
Certificate type

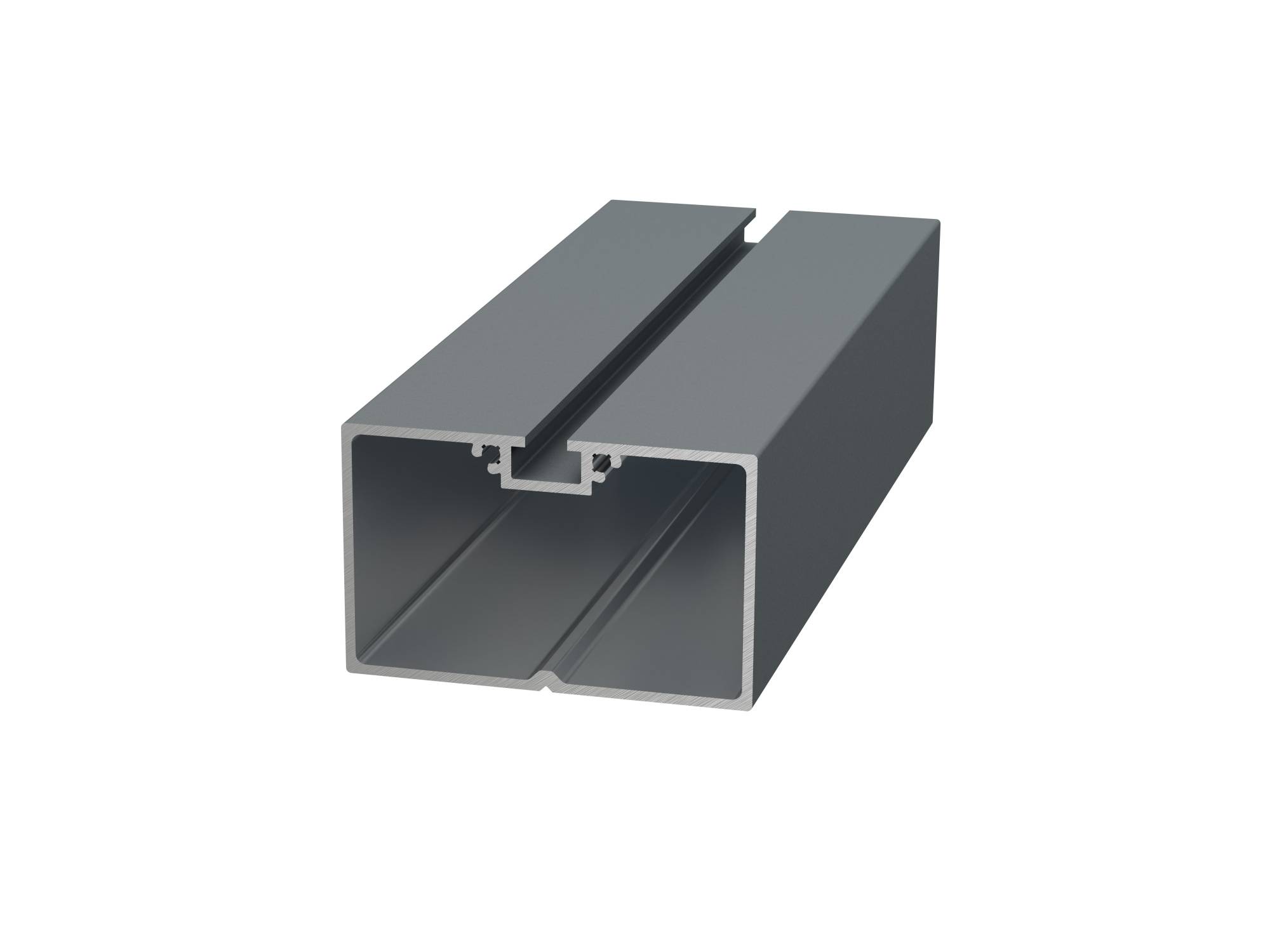

Low-profile aluminium decking joist.
Application
Designed as a standalone product to be used with AliDeck standard aluminium decking, slip-resistant aluminium decking and fire-resistant balcony decking. Acts as a support beam for the deck pedestrian surface and is compatible with all of AliDeck’s pedestals. Can also be used as a vertical post. Consult the manufacturer for further details
Description
Aluminium support joist which has been designed to be paired with aluminium balcony decking boards, such as the AliDeck range.
The aluminium frames ensure a strong construction that is naturally rust-resistant. The AliDeck Eco 50 Joist is fire-rated to A2-s1, d0. The aluminium is finished with Qualicoat powder coating in any RAL colour.
The AliDeck Eco 50 Joist increases your span by over 200% compared to composite or timber decking joists.
Span:
The maximum span is 1000mm. Consult the manufacturer for details.
Features and benefits:
- 100% aluminium construction.
- Quick installation.
- Made In Britain
- Eco-friendly: 67% of the aluminium used is recycled, and the whole Eco 50 Joist can be recycled multiple times in the future.
- Long-lasting; naturally rust-resistant, and doesn't require regular maintenance or treatment beyond simple cleaning and checking fixings.
- Coated with QUALICOAT seven-stage powder coating finish for additional protection and longevity.
- All RAL colour options are available.
- Fire Rating: A2-s1, d0.
- Will not crack, warp or swell.
- 30-year warranty.
- 60-year life expectancy.
General information
Color | Clear Beige Black Brown Green |
Finish | Mill Powder-coated |
Material | Aluminium |
Shape | Rectangle |
Length | 6000 mm Bespoke |
Width | 80 mm |
Height | 50 mm |
Warranty description | 30 year |
SKU Code | AD-LOJ2-06 |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
Product certifications
UK Conformity Assessed (UKCA)
Alcumus ISOQAR Certificate of Registration (UKCA)
CE Marking
EC Certificate of Conformity
Literature

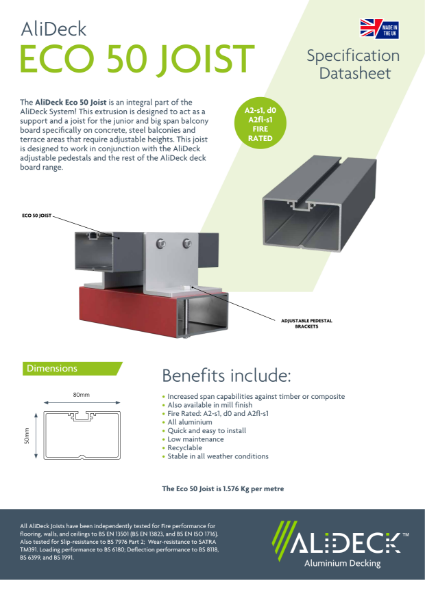

Eco 50 Joist Data Sheet
