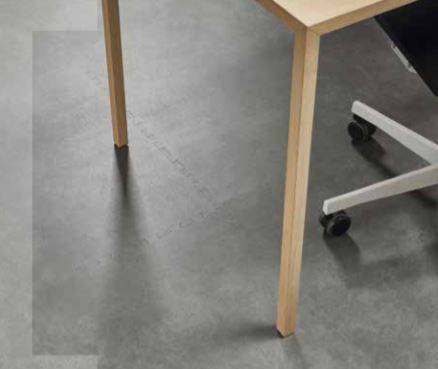

Allura Puzzle - Luxury vinyl tile
Verified by manufacturer 1 month ago
EPD
Certificate type
HPDC Certification
Certificate type
Certificate of Conformity
Certificate type
Allura Puzzle has a unique puzzle tile shape with which strong connections can be made.
Application
Internal use. All busy commercial and public sector locations.
Description
Completely adhesive free collection of large interlocking vinyl tiles, available in 12 wood and material designs.
Features and benefits:
- Puzzle solution for any single area without transition of up to 500 m².
- Minimal subfloor preparation.
- Designed to fit into each other on all sides, and once laid, can be walked on immediately - no need for adhesives or subfloor preparation.
- Provides speed and ease of installation, as well as the opportunity to replace tiles when needed, and the ability to cover existing floors with Allura Puzzle whilst business continues.
- CE marked to EN 14041.
- Contains up to 60% recycled content in the backing.
- As part of Forbo’s Fast Fit collection, it can reduce installation time by over 50%.
General information
Color | Grey Brown Black Manufacturer guidance12 options available. |
Finish | Embossed Guidance for specification option: Embossed PU. Manufacturer guidancePUR Pearl® finish. |
Material | Vinyl |
Shape | Square |
Length | 960 mm |
Width | 960 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | M50/120 Interlocking resilient floor tiling M50/10 Resilient floor tiling |
Specification data - Polyvinyl chloride (PVC) tiles
Standard | To BS EN 14041 and BS EN ISO 10582 for Heterogeneous PVC tiles. |
Use class | Class 23/ 34/ 43. |
Slip potential | |
Slip resistance value (SRV) (minimum)/ Pendulum test value (PTV) (minimum) | DIN 51130: R10; EN 13893; DS: ≥0.30, PTV dry >50. |
Recycled content | 18.5%. |
Size | 960 x 960 mm. |
Thickness | 5 mm. |
Colour and pattern | 60280PZ7 grey giant oak.60284PZ7 natural giant oak.60065PZ7 honey elegant oak.62522PZ7 natural concrete.62418PZ7 charcoal concrete.63651PZ7 light twine.63655PZ7 dark twine.63673PZ7 corroded strata.63675PZ7 oxidized strata.63658PZ7 grigio twine.63634PZ7 sand cement.63636PZ7 canyon cement.63470PZ7 lead stone. |
Weight | 7900 g/m². |
Reaction to fire (to BS EN 13501) | Bfl-s1, L, NCS. |
Electrical resistance (to BS EN 1815) | ≤2.0 kV. |
Impact sound reduction | 7 dB. |
Lightfastness (to ISO 105-B02) | ≥6. |
Dimensional stability (to BS EN ISO 23999) | ≤0.05%. |
Chemical resistance (to EN-ISO 26987) | Very good. |
Thermal conductivity (to BS EN 12524) | 0.25 W/m·K. |
Castor chair continuous use (to ISO 4918) | Superior. |
Wear layer | 0.7 mm. |
Residual indentation (to ISO 24343-1) | Standard: ≤0.10 mm. , Typical: ~0.05 mm. |
Edging | Not required. As per 740. |
Skirtings | Not required. As per 770. |
Stair nosings | Not required. As per 750. |
Sustainability data
Contains Red List materials | Yes |
Country of material origin | Netherlands |
Country of product manufacture | Netherlands |
Material | Vinyl |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 28.60 kg CO₂ eq/m² |
Recyclability | Yes Guidance for specification option: Via Forbo's 'Back to the Floor' Scheme. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 18 % |
Third party certifications
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 3 |
 IFC | - | 2 |
Third party certifications
EPD

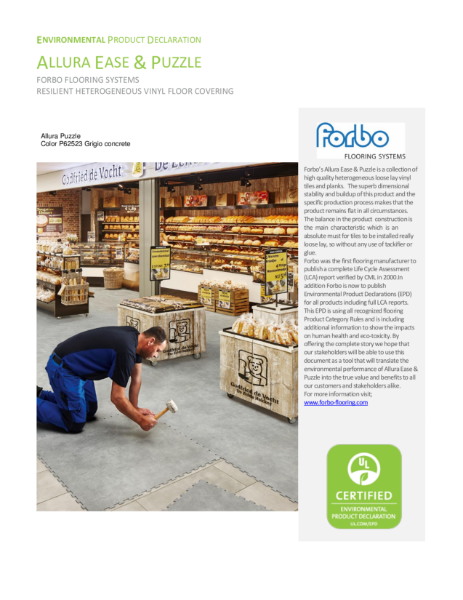

Allura Puzzle Independent Environmental Product Declaration
HPDC Certification
Allura Health Product Declaration
Certificate of Conformity
SA8000 Management System Certification Certificate
Literature
Forbo Product Portfolio 2022
Forbo Allura LRV and DSDC Accreditation Overview
