Altro Zodiac™ - Smooth Vinyl Floor

Verified by manufacturer 6 months ago

Altro Third party certifications:
  • EPD

    EPD

    Certificate type

Resilient PVC flooring.

Jump to:
+44 (0)1462 480480 Website

Application

Hospital / care home communal and circulation areas Schools / universities communal and circulation areas Retail Hotel / leisure public and dining areas Office circulation and communal areas Home adaptations / social housing communal areas.

Description

Features and benefits:

  • Resilient, heterogeneous PVC sheet with Easyclean PUR surface protection.
  • Manufactured in accordance with BS EN ISO 10582.
  • The flooring is easy to maintain and can be welded to provide a hygienic surface.
  • Fire rating (to BS EN 13501-1): Class Bfl-s1 (≥8 kW/m² pass).
  • Electrical behaviour (to BS EN 1815): <2 kV antistatic.

General information

Color

Grey

Blue

Black

Finish

Smooth

Material

Polyvinyl chloride (PVC)

Shape

Rectangle

Length

20000 mm

Width

2000 mm

Height

2 mm

Warranty description

Ten year

Uniclass

Pr_35_57_71_67 Polyvinyl chloride (PVC) sheetsPrimary

CAWS

M50/150 Sheeting

M50/20 Sheeting

Specification data - Polyvinyl chloride (PVC) sheets

Standard

To BS EN ISO 10582 for heterogeneous PVC sheet.

Use class

To BS EN ISO 10874, class 34/ 43.

Slip potential

-

Slip resistance value (SRV) (minimum)/ Pendulum test value (PTV) (minimum)

≥ 0.30 / DS.

Width

2000 mm.

Thickness

2.0 mm.

Colour and pattern

Capricorn – ZD2004.

Comet – ZD2003.

Hologram – ZD2001.

Oxygen – ZD2007.

Flexibility

To BS EN 435, Pass; EN ISO 24344.

Weight

To BS EN ISO 23997, 2.66 g/m².

Lightfastness

To BS EN 20 105-B02, ≥6.

Sound insulation

To EN ISO 10140-3 ca. 4 dB.

Wear resistance

To BS EN 660-2, Group T.

Residual indentation

To BS EN ISO 24343-1, ≤0.10 mm.

Chemical resistance

EN ISO 26987, Good.

Castor chair rating

Yes, type W.

Slip resistance

To EN 13893 ≥ 0.30 / DS R10

Sustainability data

Country of product manufacture

Germany

Material

Polyvinyl chloride (PVC)

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

7.27 kg CO₂ eq/m²

Recyclability

100% pre installation

Third party certifications

Third party certifications

EPD

EPD

Altro Zodiac EPD

Literature

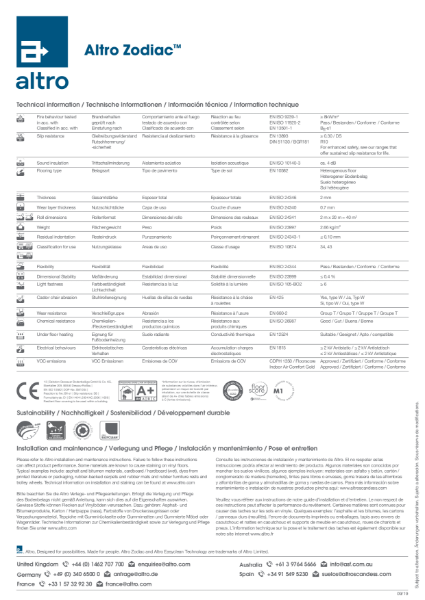

Altro Zodiac Technical Data Sheet

Altro Zodiac Technical Data Sheet

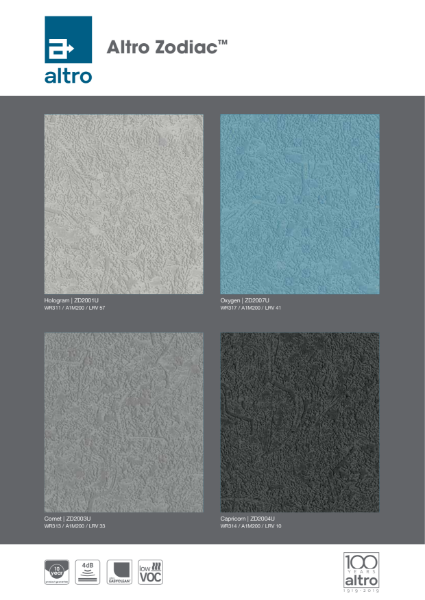

Altro Zodiac Sample Card

Altro Zodiac Sample Card

Altro Zodiac Light Reflectance Values (LRV)

Altro Zodiac Light Reflectance Values (LRV)

Altro Hospitals Sector Brochure

Altro Hospitals Sector Brochure

Altro Housing Brochure

Altro Housing Brochure

Altro Kitchens, Floors and Walls Guide Product Brochure

Altro Kitchens, Floors and Walls Guide Product Brochure

4064_Altro_Zodiac_sustainability_overview_v5

4064_Altro_Zodiac_sustainability_overview_v5

Case studies

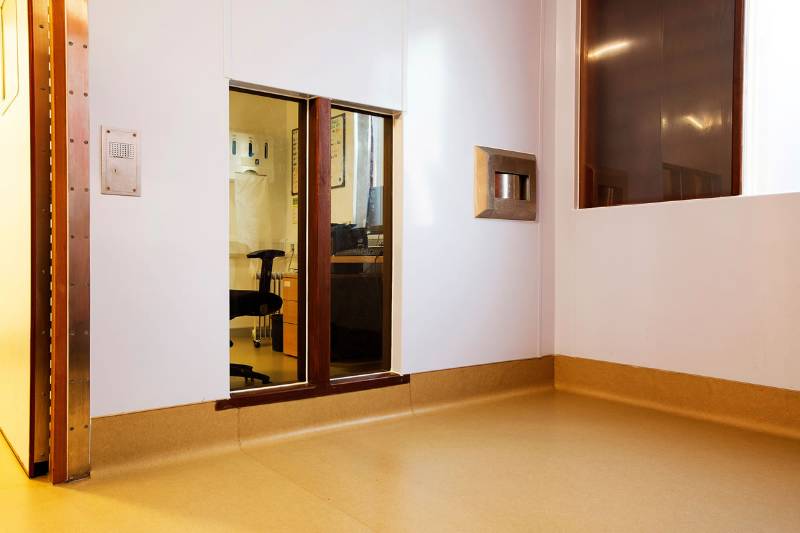

Springfield University Hospital, UK
