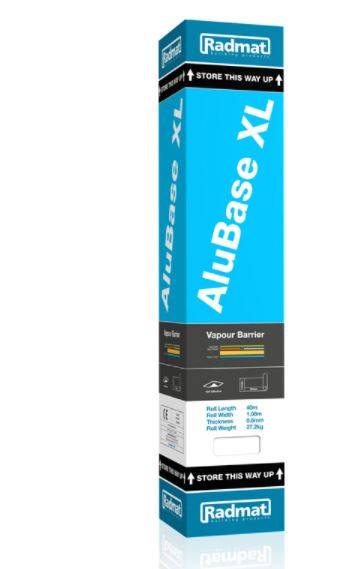

AluBase XL - Bituminous Waterproofing Membrane

Verified by manufacturer 1 month ago

Radmat Building Products Ltd Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

A self-adhesive bituminous waterproofing membrane that forms a barrier against vapour and gases.

Jump to:
+44 (0)1858 410372 Website

Application

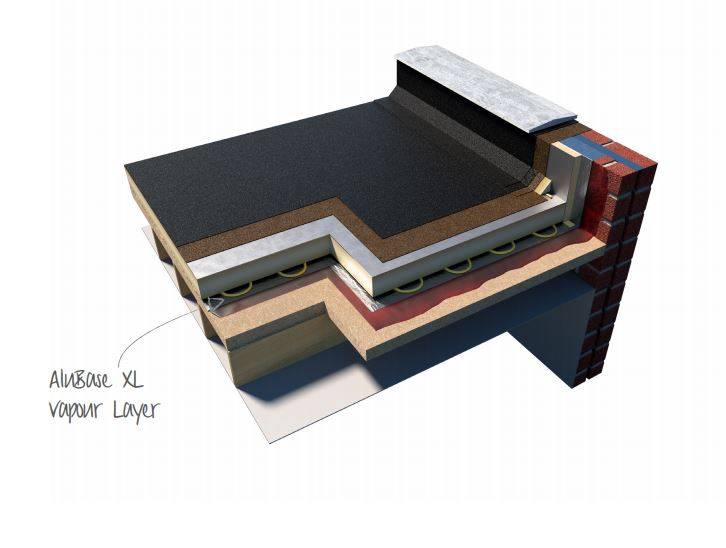

  • Suitable for use over profiled metal decking where resistance to worksite traffic is essential in order to maintain integrity of the vapour barrier.
  • Prior to installation, surfaces must be dry, clean, smooth and free of impurities.
  • If the surface is porous, apply a coat of Radmat Red Primer as per instructions.
  • The use of Primer where application is to new, clean and oil free metal is generally not required.
  • A wrong use of primer can influence the membrane efficiency.
  • To achieve the best result, proceed as follows: always start by laying the rolls from the lowest point and work upwards, being careful not to create counter-gradient overlaps.

Description

AluBase XL is a self-adhesive bituminous waterproofing membrane that forms a barrier against vapour and gases.


Features and benefits:

  • Consisting of a self-adhesive low-thickness bituminous compound self protected by a glass fibre and a reinforced aluminium film.
  • The glass fibre and polyester reinforcement provides excellent resistance to puncture and the effects of work site foot traffic.
  • The polyester coating on the aluminium top surface not only provides protection from alkalis that may be present in concrete and screeds but also provides a surface on to which most polyurethane adhesives will adhere.
  • The high tensile strength and puncture resistance of AluBase XL makes it suitable for use over profiled metal decking where resistance to worksite traffic is essential in order to maintain integrity of the vapour barrier.
  • AluBase XL provides a fast and easy means of waterproofing a roof structure prior to the installation of insulation and waterproofing whilst also providing an effective vapour barrier without the need for hot works or naked flame in its application.

General information

Color

Silver

Guidance for specification option:

Top side.

Material

Bitumen

Shape

Other

Guidance for specification option:

Roll.

Length

40000 mm

Width

1080 mm

Height

0.6 mm

Uniclass

Pr_25_57_08_75 Reinforced bitumen roofing sheetsPrimary

CAWS

J31/330 Air and vapour control layer

J41/395 Air and vapour control layer

J42/395 Air and vapour control layer

Specification data - Reinforced bitumen roofing sheets

Standard

To BS EN 13707.

Third-party certification

British Board of Agrément (BBA) certificate.

Performance characteristics

Reaction to fire: to BS EN 13501-1, Class E.

Recycled content

None.

Material

-

Carrier material

Glass-fibre and a reinforced aluminium film.

Bitumen modification

Polymeric.

Thickness (minimum)

0.6 mm.

Other.

Guidance for specification option:

Other thickness available, consult manufacturer and insert requirements.

Manufacturer guidance

To EN 1849-1.

Weight (minimum)

28 kg per roll.

Manufacturer guidance

To EN 1848-1.

Surface finish

-

Top

Metal foil.

Underside

Self-adhesive backing.

Colour

Silver.

Guidance for specification option:

Top side.

Roll length

40 m.

Manufacturer guidance

To EN 1848-1.

Roll width

1.08 m.

Manufacturer guidance

To EN 1848-1.

Water vapour resistance

To ISO EN 12572, ≥1500 m.

TensileStrength

To EN 12311-1, >600 N/50mm.

Elongation at break

To EN12311-1, >5%.

Tear resistance

To EN 12310-1, 190 N.

Manufacturer guidance

Nail shank.

Peel resistance

To BS EN 12316-1, 50 N/50 mm.

Shear resistance of joints (to EN 12317-2)

To EN 12317, ≥400 N/50 mm.

Radon transmittance

0.47 x 10-9 m/s.

Guidance for specification option:

SP Swedish Nat. Testing & Research Institute.

Radon permeability

0.56 x 10-12 m²/s.

Guidance for specification option:

SP Swedish Nat. Testing & Research Institute.

Methane permeability

<5 cc/m² x 24h x atm.

Guidance for specification option:

CSI Method.

Watertightness

To EN 1928, ≥60 kPa.

Application temperature

+5 to +30°C.

Service temperature

-30 to +80°C.

Sustainability data

Country of material origin

Europe

Country of product manufacture

Europe

Material

Bitumen

Recyclability

0

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

BBA-15-5282 PS1-EshaFlex Total Roof Waterproofing Systems

BBA Agrément Certificate

BBA Agrément Certificate

BBA-15-5282 PS2-EshaFlex Total Green Roof Waterproofing Systems
