Alumasc Rainwater Aluminium Heritage Beaded Half Round Gutter

Name: Alumasc Rainwater Aluminium Heritage Beaded Half Round Gutter
Brand: Alumasc Water Management Solutions
SKU: wk8ZaTzG1kCRpJ8bG6tTmx

Verified by manufacturer 19 days ago

Beaded Half Round BHR5 - 113 mm

Alumasc Water Management Solutions

Third party certifications:

BBA Agrément Certificate
Certificate type
UKAS
Certificate type

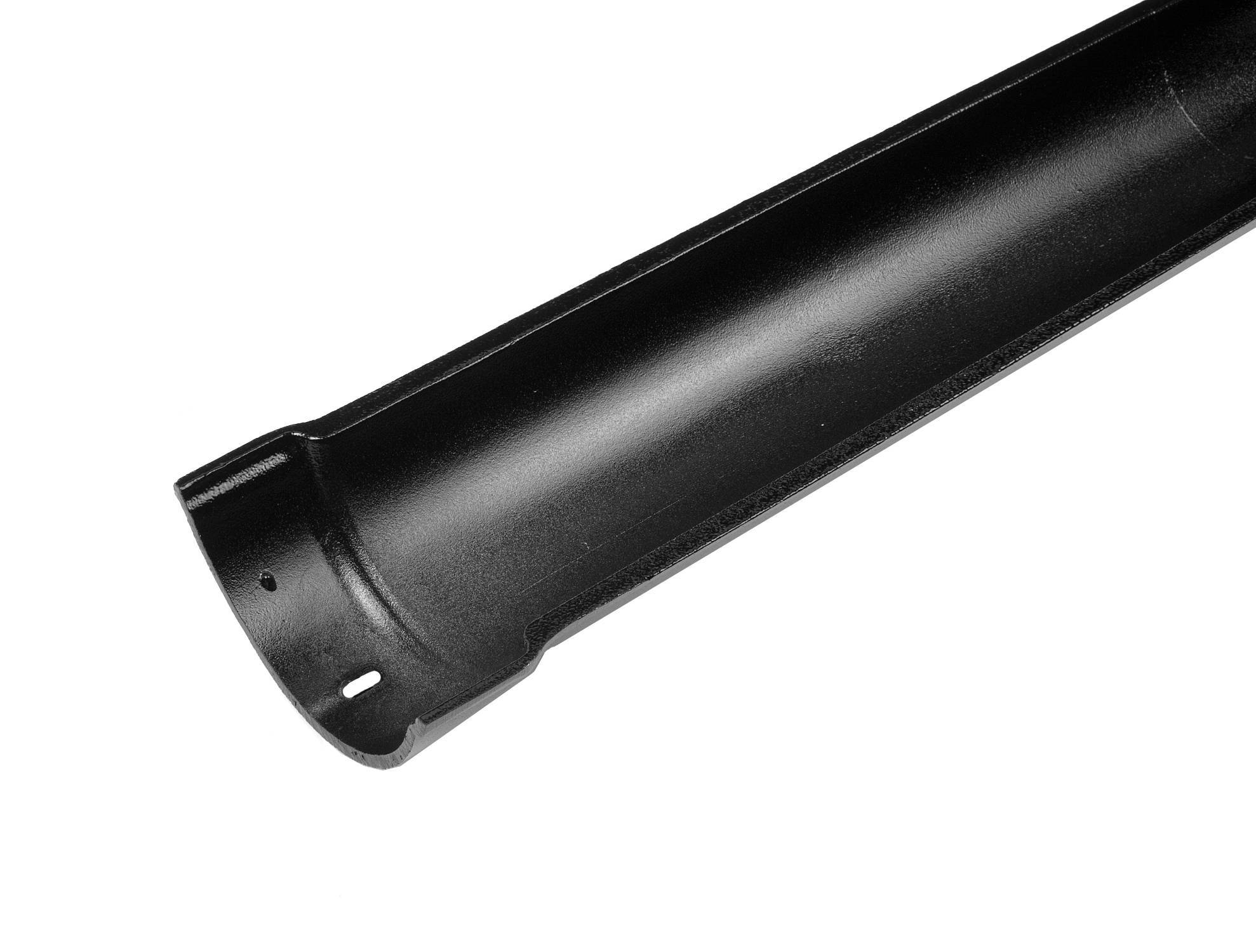

Traditional Cast Aluminium Beaded Half Round Gutter Profile

Jump to:

+44 (0)1536 383810 Website

Application

Designed to provide all the essential architectural features appropriate to traditionally designed buildings, the Heritage range is also fully in tune with modern fast track building contracts.

Ideal for traditionally designed buildings, in both new build and refurbishment applications
Can be used as a direct replacement of cast iron
For both flush and projecting eaves applications

Description

Heritage Beaded Half Round cast aluminium gutters are available in two sizes and two gutter lengths, together with a complete range of fittings. A classic socketed system, which can be finished to replicate cast iron or with BBA certificated powder coatings in a choice of colours.

Features and Performance:

Lightweight, durable and noncorrodible.
Life expectancy of aluminium:
40 years (rural/suburban areas); up to 25 years (industrial/marine areas).
Easy to handle and fix.
BBA approved.
Aluminium is 100% recyclable.

General information

Finish	Powder-coated
Material	Aluminium
Shape	Crescent
Length	1830 mm
Width	131 mm 143 mm
Height	52 mm 56 mm

Uniclass	Pr_65_50_35_06 Aluminium eaves guttersPrimary
CAWS	R10/11 Aluminium gutters R10/311 Aluminium gutters

Product range	Alumasc Rainwater / Aluminium Heritage

Specification data - Aluminium eaves gutters

Form	Cast.
Third party product certification	BBA Approval, BS 8530:2010.

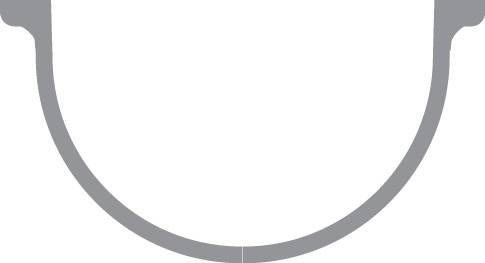

Profile	Beaded half round.
Size (nominal width)	113 mm.
Thickness or gauge	4 mm.
Finish	Polyester powder coated. Mill.
Colour	BLACK/TEXT Textured Black. RAL 2002M Vermillion. RAL 3003M Ruby Red. RAL 3005M Wine Red. RAL 5003M Sapphire Blue. RAL 5010M Flower Blue. RAL 6005M Moss Green. RAL 6018M Yellow Green. RAL 7005M Mouse Grey. RAL 7006M Beige Grey. RAL 7012M Basalt Grey. RAL 7015M Slate Grey. RAL 7016M Anthracite Grey. RAL 7024M Graphite Grey. RAL 7036M Platinum Grey. RAL 7037M Dusty Grey. RAL 7038M Agate Grey. RAL 8017M Chocolate Brown. RAL 8019M Grey Brown. RAL 9006G Metallic Silver. RAL 9006M Metallic Siver. RAL 9016M White. RAL 9017M Black. Bespoke. Guidance for specification option: Contact manufacturer for details.
Film thickness (minimum)	60-80 Microns. 120-160 Microns (Marine).
Integral accessories	Angles. Fascia brackets. Outlets. Stop ends. Unions.
