Alumasc Rainwater Aluminium Heritage Square Pipe Downpipe
Verified by manufacturer 2 months ago
Square RW33 - 72 mm
Square RW33 - 72 mm

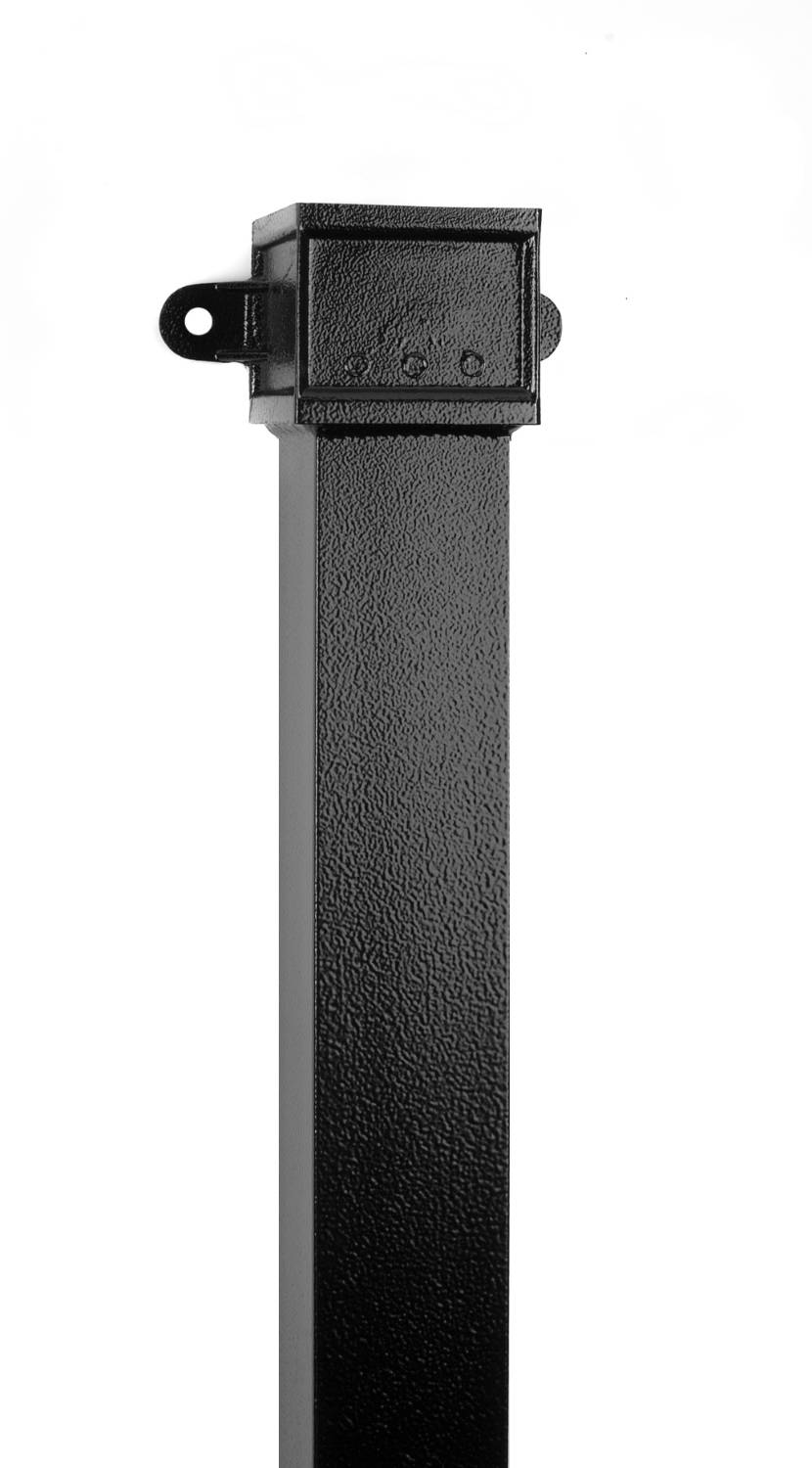

Traditional Cast Aluminium Socketed Square Downpipe
Application
Designed to provide all the essential architectural features appropriate to traditionally designed buildings, the Heritage range is also fully in tune with modern fast track building contracts.
- Ideal for traditionally designed buildings, in both new build and refurbishment applications
- Can be used as a direct replacement of cast iron
- For both flush and projecting eaves applications
Description
Heritage square and rectangular pipes are available in three pipe diameters and three pipe lengths, together with a complete range of fittings included rainwater hoppers, which all can be finished to replicate cast iron or with BBA certificated powder coatings in a choice of colours.
Features and Performance:
- Lightweight, durable and noncorrodible.
- Life expectancy of aluminium:
- 40 years (rural/suburban areas); up to 25 years (industrial/marine areas).
- Easy to handle and fix.
- BBA approved.
- Aluminium is 100% recyclable.
General information
Color | Brown Beige White Yellow Red |
Finish | Powder-coated |
Material | Aluminium |
Shape | Square |
Length | 3000 mm |
Width | 72 mm 102 mm |
Uniclass | |
CAWS | R10/30 Aluminium pipework R10/370 Aluminium pipework |
Product range |
Specification data - Aluminium rainwater pipes and fittings
Standard | To BS 8530:2010, BS EN 13501:2018. |
Third-party product certification | BBA Approval, BS 8530:2010. |
Form | Cast. |
Section | Square. |
Size (nominal) | 72 x 72 mm. |
Minimum thickness or gauge | 2 mm. |
Finish and colour | |
Finish | Polyester powder coated.Mill finish. |
Colour | BLACK/TEXT Textured Black.RAL 2002M Vermillion.RAL 3003M Ruby Red.RAL 3005M Wine Red.RAL 5003M Sapphire Blue.RAL 5010M Flower Blue.RAL 6005M Moss Green.RAL 6018M Yellow Green.RAL 7005M Mouse Grey.RAL 7006M Beige Grey.RAL 7012M Basalt Grey.RAL 7015M Slate Grey.RAL 7016M Anthracite Grey.RAL 7024M Graphite Grey.RAL 7036M Platinum Grey.RAL 7037M Dusty Grey.RAL 7038M Agate Grey.RAL 8017M Chocolate Brown.RAL 8019M Grey Brown.RAL 9006G Metallic Silver.RAL 9006M Metallic Siver.RAL 9016M White.RAL 9017M Black.Bespoke.Guidance for specification option: Contact manufacturer for details. |
Film thickness (minimum) | 60-80 Microns.120-160 Microns (Marine). |
Integral accessories | Access pipes.Bends.Branches.Hopper heads.Offsets.Pipe clips.Shoes.Sockets. |
Fire rating (to BS EN 13501) | A2. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Aluminium |
Recyclability | 100% |
Expected Life | 40 year |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Case studies
Former Holmlea Primary School, Glasgow - Alumasc Rainwater Heritage Cast Aluminium
