Alumasc Rainwater Apex Heritage Cast Iron Victorian Ogee Gutter
Verified by manufacturer 19 days ago
Victorian Ogee OG50 - 125 mm
Victorian Ogee OG50 - 125 mm
UKAS
Certificate type

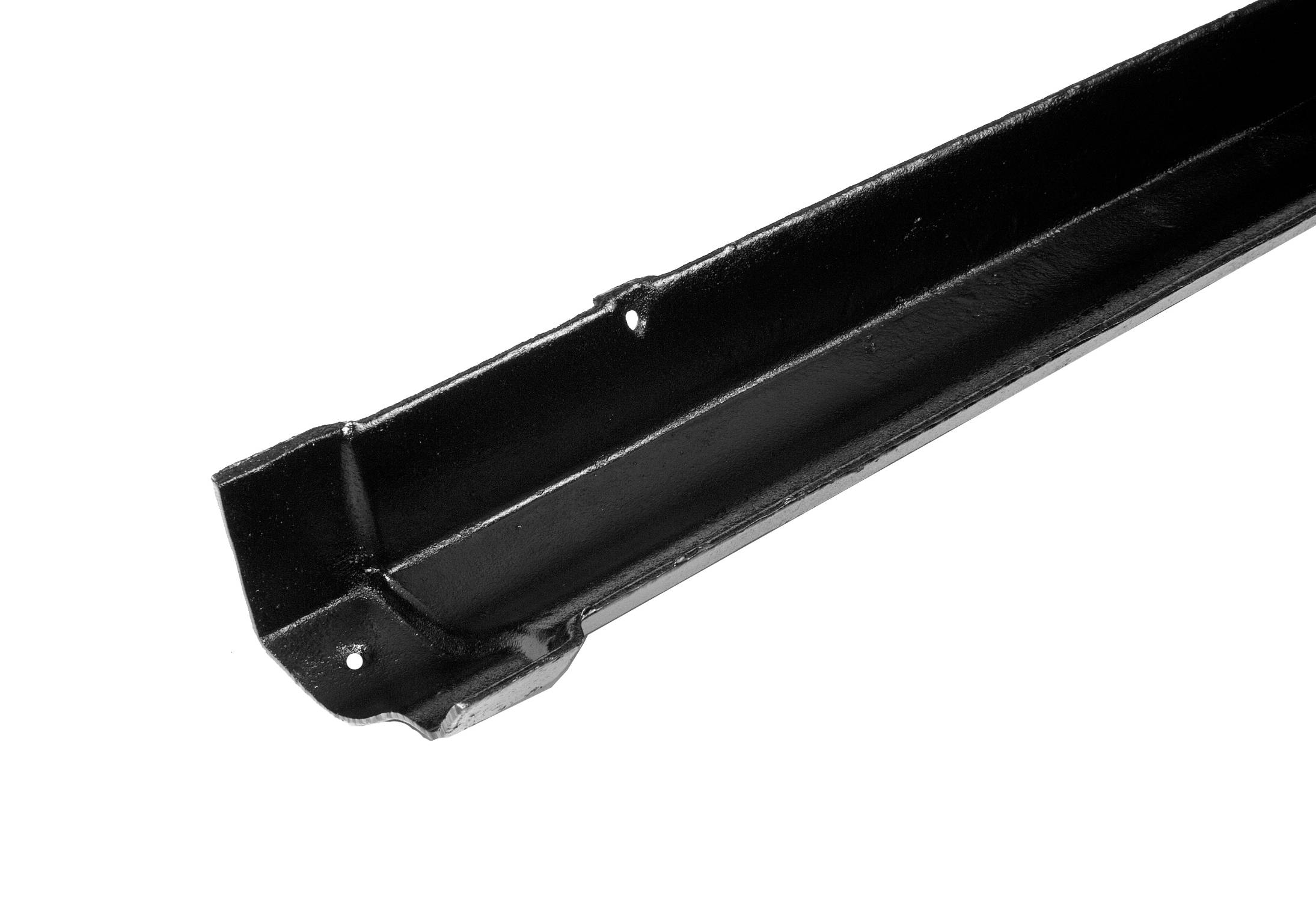

Traditional Cast Iron Victorian Ogee Gutter Profile
Application
Designed to provide all the essential architectural features appropriate to traditionally designed buildings.
- Suited to traditional craft based contracts
- Closely replicates historic styles
- For both flush and projecting eaves applications
Description
Apex Heritage Victorian Ogee socketed cast iron gutters are available in two sizes. A traditional profile with the unmistakable character and appearance of sand cast iron. There is a range of fittings also.
Features and Performance:
- Extremely strong, durable and vandal resistant.
- Dimensionally accurate and stable.
- Life expectancy in excess of 40 years.
- Cast iron is 100% recyclable.
General information
Color | Red Blue Green Grey Brown |
Finish | Coated |
Material | Cast iron |
Shape | Other |
Length | 1830 mm |
Width | 114 mm 127 mm |
Height | 54 mm 63 mm |
Uniclass | |
CAWS | R10/12 Cast iron gutters R10/315 Cast iron gutters |
Product range |
Specification data - Cast iron eaves gutters
Standard | To BS 460:2002. |
Profile | Victorian ogee gutter. |
Size (nominal) | 125 mm. |
Finish | Primed.Factory certified paint finish. |
Colour | RAL 3009m Oxide Red.RAL 3020m Traffic Red.RAL 5010m Flower Blue.RAL 6005m Moss Green.RAL 7016m Anthracite Grey.RAL 8015m Chestnut Brown.RAL 9005m Black.RAL 9016m White.Primed.Bespoke.Guidance for specification option: Contact manufacturer for details. |
Integral accessories | Angles.Fascia brackets.Outlets.Stop ends.Unions. |
Fire rating (to BS EN 13501) | A2. |
Sustainability data
Contains Red List materials | No |
Material | Cast iron |
Recyclability | 100% |
Expected Life | 60 year |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
UKAS
ISO 14001 - Burton Latimer site
UKAS
ISO 9001 - Burton Latimer site
Literature
Alumasc Rainwater - Cast Iron White paper
Case studies
Duke Street Apartments, London - Alumasc Heritage Cast Aluminium & Apex Cast Iron
Lancaster's London - Alumasc Apex Heritage Cast Iron
Royal Albert Hall - Alumasc Apex Heritage Cast Iron
St Pancras International, London - Alumasc Rainwater Apex Cast Iron
