Application

  • For use in commercial, healthcare, public sector and residential settings.
  • Suitable for traditional and modern buildings in both new build and refurbishment applications.

Description

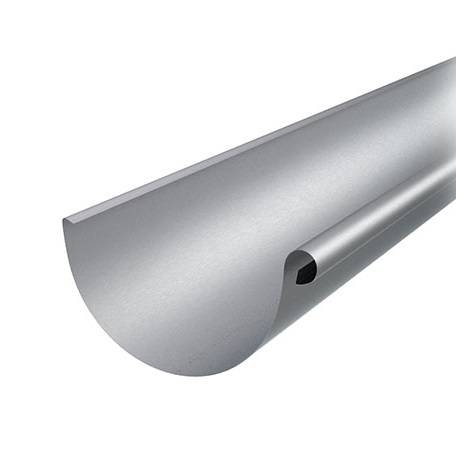

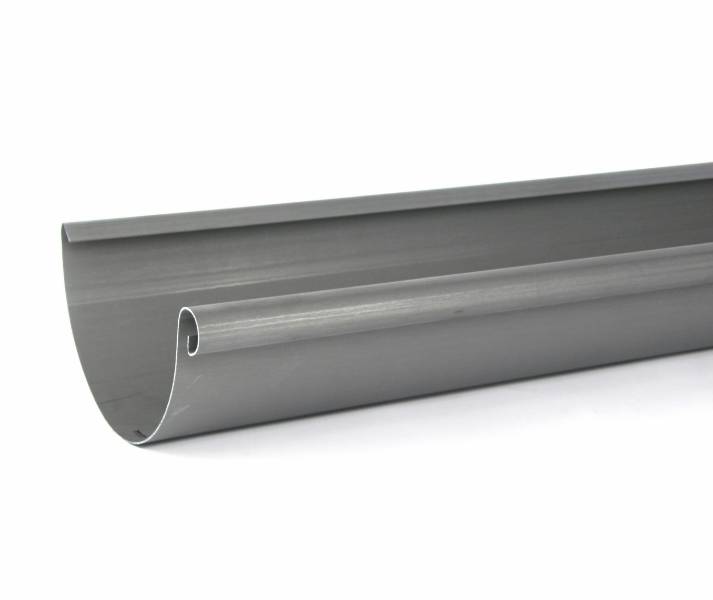

Natural zinc half round gutter are available in three sizes and one length, together with a complete range of fittings. Lightweight range of contemporary, eco friendly and cost effective alternative to plastic gutters, without the risk of shrinking, leaking or colour fading. The Natural Zinc shade is already pre-weathered therefore will maintain its colour finish.


Features and performance:

  • Available in three sizes.
  • Complete with range of fittings.
  • Lightweight, durable and non-corrodible.
  • Plain end with external union.
  • Quick and easy installation.
  • Life expectancy in excess of 25 years.
  • Low maintenance.
  • Manufactured to ISO 9001: 2008.
  • All gutter widths are deep half round providing maximum flow rates.
  • Higher flow capacity on outlets due to larger inlet funnels.
  • Gutter angle is 'deep drawn' and one piece giving greater flow capacity.
  • Quick and easy installation.
  • Fascia bracket has a larger back plate for installation ease and six fixing points compared to two on other systems.

General information

Color

Silver

Finish

Metallic

Material

Zinc

Shape

Other

Guidance for specification option:

Half round.

Length

3000 mm

Width

115 mm

125 mm

150 mm

Height

70 mm

80 mm

90 mm

Warranty description

15 year

Uniclass

Pr_65_50_35_98 Zinc eaves guttersPrimary

CAWS

R10/355 Zinc gutters

Product range

Alumasc Rainwater / Infinity Natural Zinc

Specification data - Zinc eaves gutters

Standard

To BS 9101: 2017.

Profile

Half round.

Size (nominal)

115 x 70 mm.

Finish

Natural zinc.

Integral accessories

Angles.

Brackets.

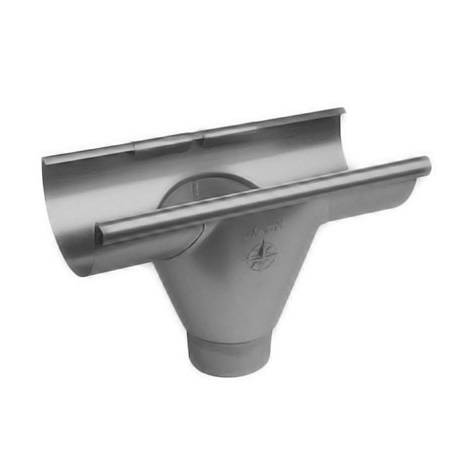

Outlets.

Stop Ends.

Unions.

Fire rating (to BS EN 13501)

A2.

Type

Plain end with external union.

Protection

Corrosion protection.

Bonding primer

Primer bonding coat.

Top coat

Polyester top coat.

Third party product certification

ISO 9001, ISO 14001; EN10169-2.

Form

Rolled.

Sustainability data

Contains Red List materials

No

Country of product manufacture

Germany

Material

Zinc

Recyclability

100%
