Application

  • For use in commercial, healthcare, public sector and residential settings.
  • Suitable for traditional and modern buildings in both new build and refurbishment applications.

Description

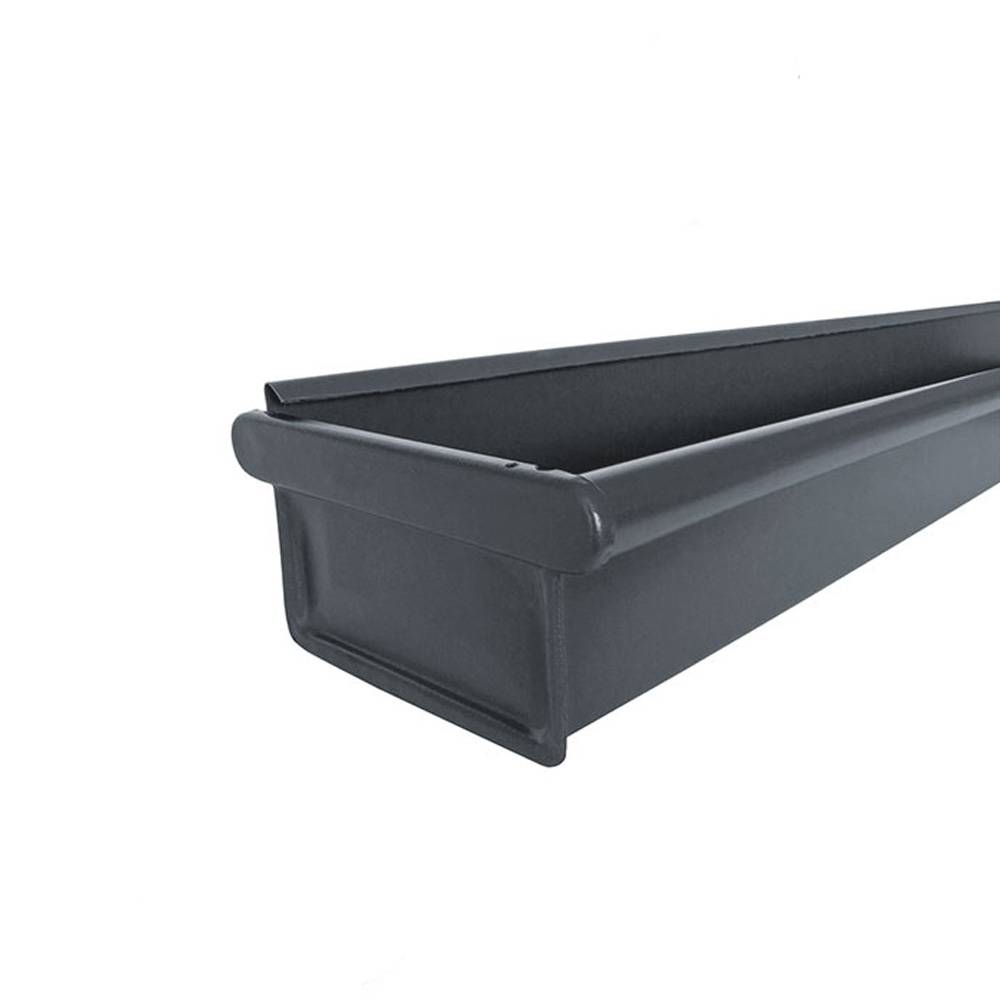

Discover the durability and versatility of steel box gutters. Alumasc's solutions seamlessly blend functionality and aesthetics, offering rainwater management for residential, commercial, and industrial structures. Lightweight range of contemporary, eco friendly and cost effective alternative to plastic gutters, without the risk of shrinking, leaking or colour fading.


Features and performance:

  • Complete with range of fittings.
  • Lightweight, durable and non-corrodible.
  • Plain end with external union.
  • Quick and easy installation.
  • Life expectancy in excess of 25 years.
  • Low maintenance.
  • Box gutters are deep providing maximum flow rates.
  • Higher flow capacity on outlets due to larger inlet funnels.
  • Gutter angle is 'deep drawn' and one piece giving greater flow capacity.
  • Quick and easy installation.

General information

Color

Black

Grey

Silver

Finish

Galvanized

Coated

Material

Steel

Shape

Other

Guidance for specification option:

Box

Length

3000 mm

Width

120 mm

Height

75 mm

Warranty description

15 year

Uniclass

Pr_65_50_35_29 Galvanized steel combined fascias, soffits and guttersPrimary

CAWS

R10/335 Galvanized steel gutters

Product range

Alumasc Rainwater / Infinity Steel

Specification data - Galvanized steel combined fascias, soffits and gutters

Form

Rolled.

Third-party product certification

ISO 9001, ISO 14001; EN10169-2.

Gutters

-

Profile

Rectangular box.

Finish

Galvanized.

Pre-coated.

Colour

Galvanized steel.

Black anthracite.

Integral accessories

Angles.

Brackets.

Outlets.

Stop Ends.

Unions.

Fire rating (to BS EN 13501)

A2.

Type

Plain end with external union.

Standard

To BS9101: 2017.

Protection

Corrosion protection.

Bonding primer

Primer bonding coat.

Top coat

Polyester top coat.

Sustainability data

Contains Red List materials

No

Country of product manufacture

Germany

Material

Steel

Recyclability

100%

Literature

Alumasc Rainwater - Technical Brochure

Alumasc Rainwater - Technical Brochure
