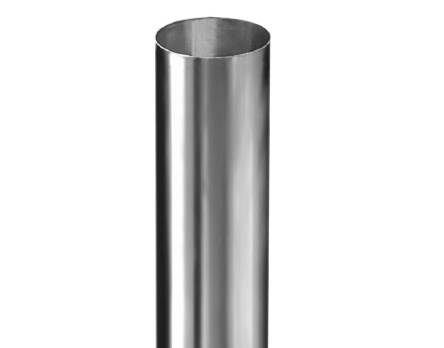

Alumasc Rainwater Infinity Steel Circular Downpipe
Verified by manufacturer 1 month ago
SRW0
SRW0
Galvanized steel downpipe system.
Application
- For use in commercial, healthcare, public sector and residential settings.
- Suitable for traditional and modern buildings in both new build and refurbishment applications.
Description
Steel circular pipes are available in three pipe diameters and one pipe length, together with a complete range of fittings including rainwater hoppers. Lightweight range of contemporary, eco-friendly and cost-effective alternative to plastic downpipes, without the risk of shrinking, leaking or colour fading.
Features and performance:
- Available in three sizes.
- Complete with range of fittings including rainwater hoppers.
- Lightweight, durable and non-corrodible.
- Quick and easy installation (socketed system).
- Life expectancy in excess of 25 years.
- Low maintenance.
- Manufactured to ISO 9001:2008.
General information
Color | Black Grey Brown Silver White |
Finish | Galvanized Coated |
Material | Steel |
Shape | Circle |
Length | 3000 mm |
Width | 60 mm 80 mm 100 mm |
Height | 60 mm 80 mm 100 mm |
Warranty description | 15 year |
Uniclass | |
CAWS | R10/395 Continuously hot dip coated steel pipework - pressed |
Product range |
Specification data - Galvanized steel rainwater pipes and fittings
Material | Steel. |
Section | Round. |
Size (nominal) | DN 60. |
Minimum thickness or gauge | 0.6 mm. |
Finish and colour | |
Finish | Galvanized steel.Pre-coated. |
Colour | RAL 7016m Anthracite Grey.RAL 9005m Black. |
Integral accessories | Bends.Branches.Sockets.Access pipes.Offsets.Shoes.Pipe clips.Hopper heads. |
Fire rating (to BS EN 13501) | A2. |
Form | Downpipe. |
Type | Socketed system. Guidance for specification option: Integral socket at the top of the pipe to allow faster installation and secure connection between fittings. |
Protection | Corrosion protection layer. |
Bonding primer | Primer bonding coat. |
Top coat | Polyester top coat. |
Third party product certification | ISO 9001, ISO 14001, EN 10169-2. |
Standard | To BS 9101:2017. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Germany |
Material | Steel |
Recyclability | 100% |
Expected Life | 50 year |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
Infinity Rainwater Systems
