Alumasc Skyline Aluminium Column Casing Semi Square Profile
Verified by manufacturer 18 days ago
CS25H
CS25H
BBA Agrément Certificate
Certificate type
UKAS
Certificate type

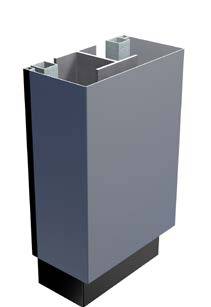

A half-square column casing manufactured from 3 mm aluminium sheet.
Application
Suitable for internal and internal column casing applications in the industrial, commercial, healthcare, residential and public sector industries.
Description
The standard column casing range consist of circular casings, from 300 mm up to 1000 mm diameter, and square casings, from 250 x 250 mm up to 1000 x 1000 mm square. All casings are manufactured using 3 mm aluminium sheet.
Features and benefits:
- Square, Semi-Square, Circular and Semi-Circular options available (each specified separately).
- Bespoke shapes and sizes also available on request.
- Elegantly concealing unsightly structural elements and services.
- Suitable for exterior or interior applications.
- Ideal for any structure.
- 3000 mm height.
- One colour or dual colour options.
General information
Color | Beige Black Blue Brown Grey |
Finish | Powder-coated Mill Textured |
Material | Aluminium |
Shape | Rectangle Guidance for specification option: Semi-Square. |
Length | 3000 mm |
Width | 250 mm 350 mm 450 mm 550 mm 650 mm |
Height | 125 mm 175 mm 225 mm 275 mm 325 mm |
Uniclass | |
CAWS | P20/170 Proprietary P20/30 Proprietary |
Product range |
Specification data - Preformed casings
Material | Aluminium. |
Finish as delivered | Powder-coated.Mill.Textured. |
Colour | RAL 1011m Brown Beige.Textured Black.RAL 5003m Sapphire Blue.RAL 7012m Basalt Grey.Guidance for specification option: Also available in a textured finish. RAL 7038m Agate Grey.RAL 1013m Pearl White.RAL 9017m Black (60% Gloss).RAL 5010m Flower Blue.RAL 7015m Slate Grey.Guidance for specification option: Also available in a textured finish. RAL 8017m Chocolate.RAL 1021m Cadmium Yellow.RAL 6005m Moss Green.RAL 7016m Anthracite Grey.Guidance for specification option: Also available in a textured finish. RAL 8019m Grey Brown.RAL 2002m Vermilion.RAL 6018m Yellow Green.RAL 7024m Graphite Grey.RAL 9006g Metallic Silver.RAL 3003m Ruby Red.RAL 7036m Platinum Grey.RAL 7005m Mouse Grey.RAL 9006m Metallic Silver.RAL 3005m Wine Red.RAL 7037m Dusty Grey.Guidance for specification option: Also available in a textured finish. RAL 7006m Beige Grey.RAL 9016m White.Guidance for specification option: Also available in a textured finish. |
Profile | Semi-Square. |
Size | 250 x 250 mm.Guidance for specification option: Bespoke sizes on request, insert requirement. |
Colour options | UniColour. DuoColour. |
Water resistance | Weathered Column Casing. |
Sustainability data
Contains Red List materials | No |
Material | Aluminium |
Recyclability | 100% |
Expected Life | 40 year |
Third party certifications
BBA Agrément Certificate
BBA Powder Coating Certificate
UKAS
ISO 14001 - Burton Latimer site
UKAS
ISO 9001 - Burton Latimer site
Literature
Skyline Column Casings 2021
Skyline Technical Brochure
