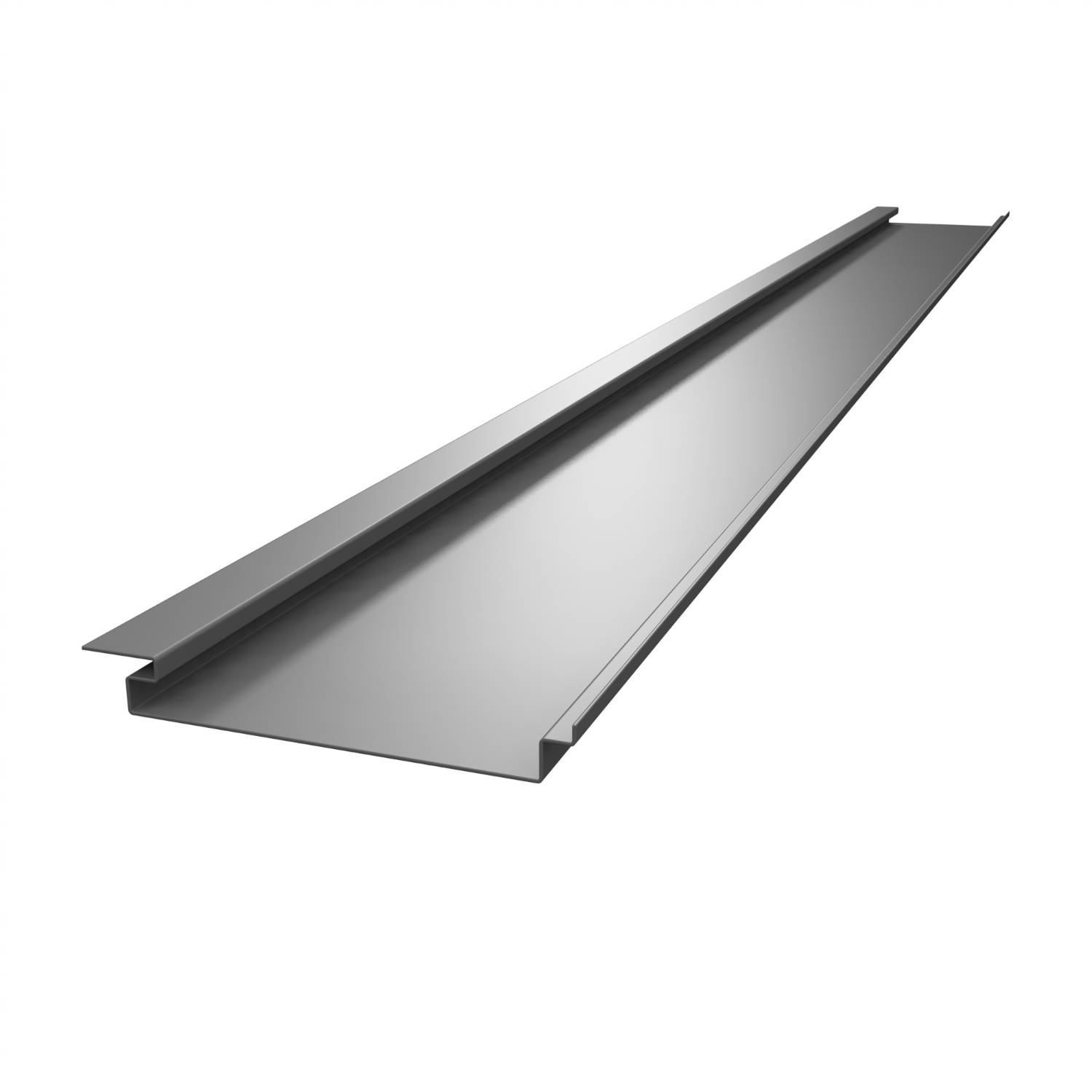

Alumasc Skyline Aluminium Soffit Standard Profile

Verified by manufacturer 19 days ago

SOF7

Alumasc Water Management Solutions Variant:
Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • UKAS

    UKAS

    Certificate type

Folded Sheet Aluminium Soffit System.

Jump to:
+44 (0)1536 383810 Website

Application

  • Complete new build designs utilizing standard components.
  • Wherever overhanging soffits are a feature of the roofline and as a finishing beneath canopies.
  • Often combined with standard fascia system.
  • Compatible with Alumasc Rainwater System.

Description

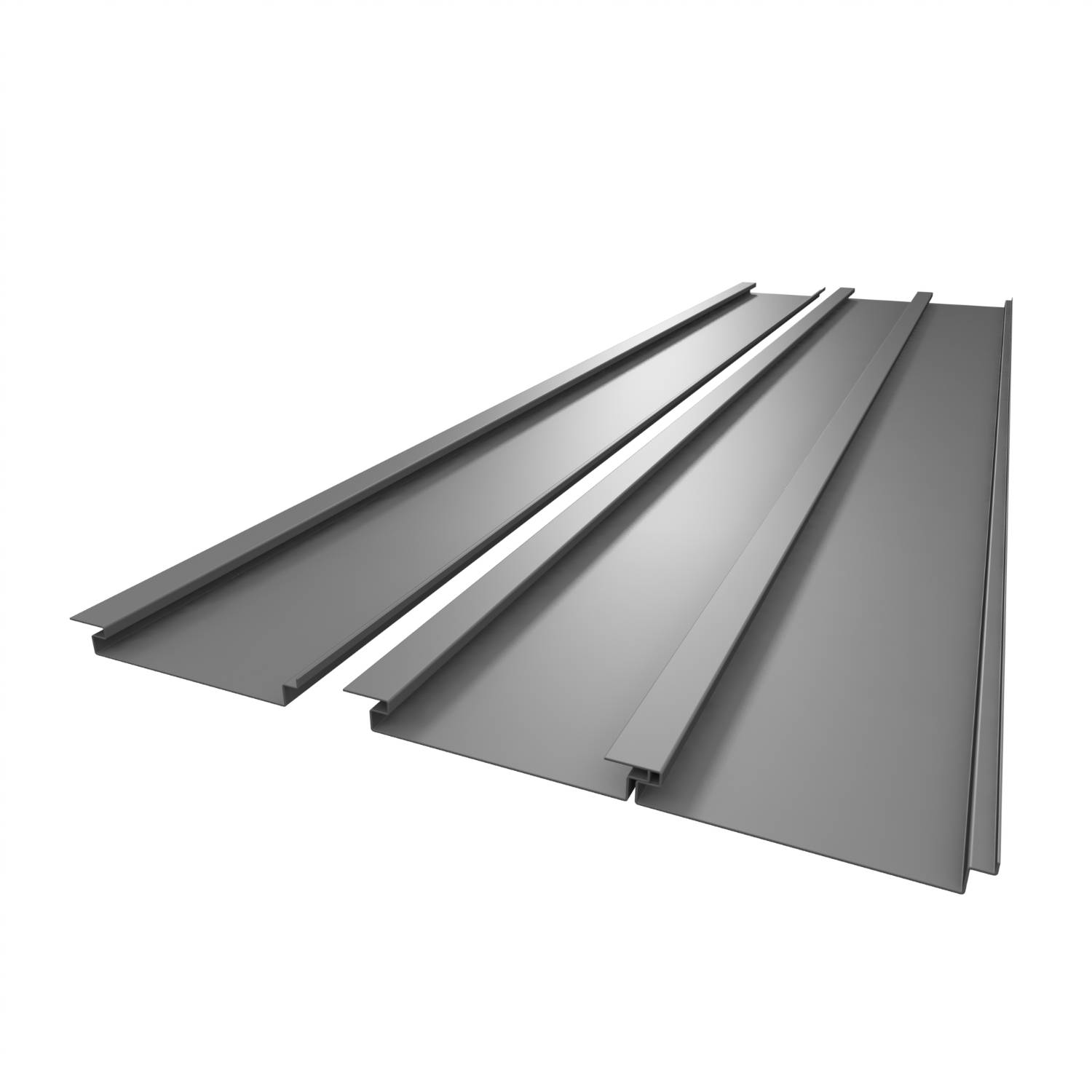

The Skyline soffit system is based on three profiles in a range of sizes to connect onto the Skyline fascia system, engineered to the highest standard on a project by project basis to suit any architectural requirements.


Features and benefits:

  • Standard components are lightweight, durable and corrosion resistant.
  • Entirely weatherproof.
  • Easy to handle.
  • Life expectancy of aluminium: 40 years (rural/ suburban areas); up to 25 years (industrial/ marine areas).
  • Aluminium is 100% recyclable.

General information

Color

Beige

Black

Blue

Cream

Green

Show more

Finish

Mill

Powder-coated

Material

Aluminium

Shape

Other

Uniclass

Pr_65_50_35_02 Aluminium combined fascias, soffits and guttersPrimary
Pr_35_90_30_01 Aluminium flashings

CAWS

G20/950 Fascias/ barges/ soffits

G20/99 Fascias/ barges/ soffits

Product range

Alumasc Skyline Architectural Aluminium / Aluminium Soffits

Specification data - Aluminium combined fascias, soffits and gutters

Form

Soffit.

Fascias

-

Profile

Seven times bent.

Soffits

-

Profile

Flat sheet.

Size

-

Manufacturer guidance

Various options available, from 0-200 mm girth to 900-1000 mm girth. Insert requirements.

Thickness or gauge

2 mm.

3 mm.

Colour

Mill finish.

RAL 1011m Brown Beige.

Guidance for specification option:

Polyester powder-coated.

RAL 1013m Pearl White.

Guidance for specification option:

Polyester powder-coated.

RAL 1021m Cadmium Yellow.

Guidance for specification option:

Polyester powder-coated.

RAL 2002m Vermilion.

Guidance for specification option:

Polyester powder-coated.

RAL 3003m Ruby Red.

Guidance for specification option:

Polyester powder-coated.

RAL 3005m Wine Red.

Guidance for specification option:

Polyester powder-coated.

RAL 5003m Sapphire Blue.

Guidance for specification option:

Polyester powder-coated.

RAL 5010m Flower Blue.

Guidance for specification option:

Polyester powder-coated.

RAL 6005m Moss Green.

Guidance for specification option:

Polyester powder-coated.

RAL 6018m Yellow Green.

Guidance for specification option:

Polyester powder-coated.

RAL 7005m Mouse Grey.

Guidance for specification option:

Polyester powder-coated.

RAL 7006m Beige Grey.

Guidance for specification option:

Polyester powder-coated.

RAL 7012m Basalt Grey.

Guidance for specification option:

Polyester powder-coated; also available in a textured finish.

RAL 7015m Slate Grey.

Guidance for specification option:

Polyester powder-coated; also available in a textured finish.

RAL 7016m Anthracite Grey.

Guidance for specification option:

Polyester powder-coated; also available in a textured finish.

RAL 7024m Graphite Grey.

Guidance for specification option:

Polyester powder-coated; also available in a textured finish.

RAL 7036m Platinum Grey.

Guidance for specification option:

Polyester powder-coated.

RAL 7037m Dusty Grey.

Guidance for specification option:

Polyester powder-coated.

RAL 7038m Agate Grey.

Guidance for specification option:

Polyester powder-coated; also available in a textured finish.

RAL 8017m Chocolate Brown.

Guidance for specification option:

Polyester powder-coated.

RAL 8019m Grey brown.

Guidance for specification option:

Polyester powder-coated.

RAL 9006m Metallic Silver.

Guidance for specification option:

Polyester powder-coated.

RAL 9006g Metallic Silver (80% Gloss).

Guidance for specification option:

Polyester powder-coated.

RAL 9016m White.

Guidance for specification option:

Polyester powder-coated; also available in a textured finish.

RAL 9017m Black (60% Gloss).

Textured Black.

Bespoke, RAL or BS.

Guidance for specification option:

Polyester powder-coated. Consult literature for details and insert requirements.

Manufacturer guidance

Standard aluminium RAL colour range.

Fire rating (to BS EN 13501)

A2.

Film thickness (minimum)

2 mm.

3 mm.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Aluminium

Recyclability

100%

Expected Life

40 year

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

BBA Powder Coating Certificate

UKAS

UKAS

ISO 14001 - Burton Latimer site

UKAS

UKAS

ISO 9001 - Burton Latimer site
