Aluminium Box Gutter - System 75 - Gutter
Verified by manufacturer 6 days ago
J57S UP (Anodized Finish)
J57S UP (Anodized Finish)
ISO 9001 Quality Management
Certificate type
Independent sustainability assessment
Certificate type
EN 13501-1 (Efectis)
Certificate type
R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041
Certificate type
Aluminium box gutter, 140 x 90 mm.
Application
- Residential.
- Education.
- Healthcare.
- Commercial.
- Leisure.
- Mixed Use.
- Infrastructure.
- Retail.
Description

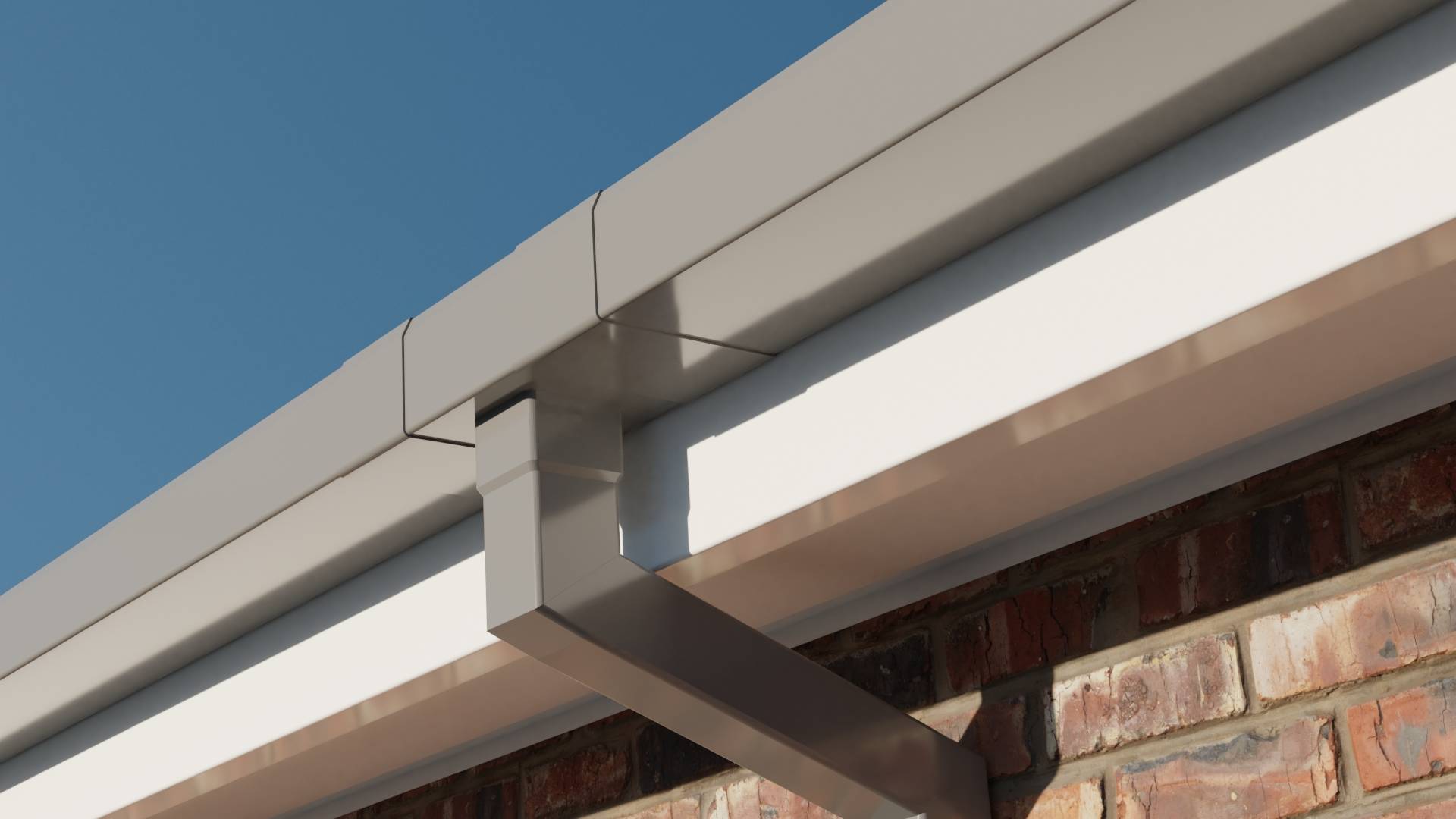

Dales Box range of heavy-duty gutters are free of visible fixings to front and bottom faces. Dales over-strap joint system with silicon sealant allows for aluminium's high coefficient of expansion. This ensures leak-free joints whatever the temperature.
Features and benefits:
- Polyester powder coated to BS 12206-1:2004.
- Available in gloss, matt and satin (subject to availability).
- Also available anodized.
- A wide range of standard components are available.
- Purpose-made components can be manufactured to suit individual projects.
General information
Color | Beige Black Blue Bronze Brown Manufacturer guidanceManufacturers website for available colour choices. |
Finish | Powder-coated Guidance for specification option: PPC - Matt PPC - Satin PPC - Gloss Metallic Guidance for specification option: PPC - Metallic Anodized |
Material | Aluminium |
Shape | Square Rectangle |
Length | 3000 mm |
Width | 140 mm |
Height | 90 mm |
Warranty description | 25 year Guidance for specification option: Contact manufacturer for further details. |
Uniclass | |
CAWS | R10/11 Aluminium gutters R10/311 Aluminium gutters |
Product range |
Specification data - Aluminium eaves gutters
Form | Pressed (Complies to BS 9101:2017). |
Profile | Box. |
Size (nominal width) | 140 mm. |
Thickness or gauge | 2 mm. |
Finish | Anodized. |
Colour | ANOLOK BRONZE 541.ANOLOK BRONZE 543.ANOLOK BRONZE 545.ANOLOK BRONZE 547.ANOLOK BRONZE 549.ANOLOK BRONZE 54B.ANOLOK II BLUE-GREY B711.ANOLOK II BLUE-GREY B713.ANOLOK II BLUE-GREY B715.ANOLOK II BLUE-GREY B717.ANOLOK II STONE GREY.UA 100-0.Guidance for specification option: Lime green. UA 100-1.Guidance for specification option: Yellow. UA 100-2.Guidance for specification option: Dark grey / black. UA 100-A.Guidance for specification option: White / beige. UA 120-0.Guidance for specification option: Yellow / brown. UA 120-1.Guidance for specification option: Light brown. UA 120-2.Guidance for specification option: Brown. UA 130-0.Guidance for specification option: Light red. UA 130-1.Guidance for specification option: Red. UA 130-2.Guidance for specification option: Red /brown. UA 140-0.Guidance for specification option: Dark red. UA 140-1.Guidance for specification option: Pink. UA 150-0.Guidance for specification option: Light blue. UA 150-1.Guidance for specification option: Dark blue. UA 150-2.Guidance for specification option: Metallic. UA 160-1.Guidance for specification option: Dark blue. UA REGENCY GOLD 1.UA REGENCY GOLD 2.UA REGENCY GOLD 3. |
Film thickness (minimum) | 60 microns. |
Texture | Gloss. Guidance for specification option: Subject to availability: https://www.dales-eaves.co.uk/finishes/ Matt. Guidance for specification option: Subject to availability: https://www.dales-eaves.co.uk/finishes/ Satin. Guidance for specification option: Subject to availability: https://www.dales-eaves.co.uk/finishes/ |
Corners | Not required. ST-05-090-E 90° external corner. ST-05-090-I 90° internal corner. ST-05-135-E 135° external corner. ST-05-135-I 135° internal corner. Manufacturer guidanceFittings. |
Outlets | ST-04-076-D 76.2 mm round outlet. ST-04-076-S 76.2 mm square outlet. ST-04-101-D 101.6 mm round outlet. ST-04-101-S 101.6 mm square outlet. As drawing ___. Manufacturer guidanceFittings. |
Stop end | ST-03-000-L left hand stop end. ST-03-000-R right hand stop end. As drawing ___. Contractor's choice. Manufacturer guidanceFittings. |
Joint strap | ST-02-000-X. Manufacturer guidanceFittings. |
Length | 3 m. Manufacturer guidanceGutter length. |
Size | 140 x 90 mm. Manufacturer guidanceProfile size. |
Capacity | 3.31 L/s. Guidance for specification option: Gutter. 2.25 L/s. Guidance for specification option: 76.2 mm round outlet. 2.81 L/s. Guidance for specification option: 76.2 mm square outlet. 3.31 L/s. Guidance for specification option: 101.6mm round outlet 4.1 L/s. Guidance for specification option: 101.6mm square outlet |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 2 |
Third party certifications
ISO 9001 Quality Management
ISO 9001:2015 Quality Assurance
Independent sustainability assessment
CLOSED LOOP RECYCLING SCHEME (CAB)
EN 13501-1 (Efectis)
INTERPON-D PPC: EN 13501-1:2018 REACTION TO FIRE CLASSIFICATION
R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041
SYNTHA PULVIN PPC: EN 13501-1:2018 REACTION TO FIRE CLASSIFICATION
