Aluminium CF 68 Sliding and Folding Door System

Verified by manufacturer 21 hours ago

Double glazed

Reynaers Aluminium Variant:
Third party certifications:
  • BM Trada

    BM Trada

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

Highly insulated aluminium folding & sliding (bifolding) door in a choice of colour and finish.

Jump to:
+44 (0)121 4211999 Website

Application

Standalone highly insulated sliding and folding door system. For domestic use, available as a functional profile with flush, low- and high-performance thresholds.

Description

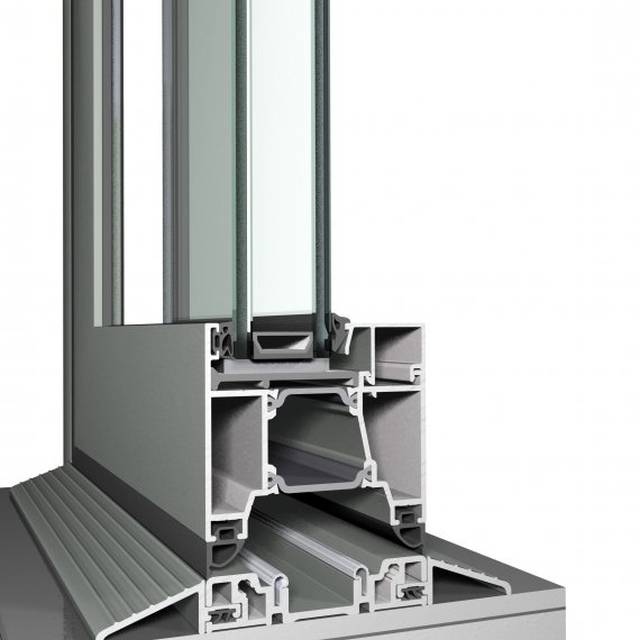

CF 68 Concept Folding system is a standalone highly insulated sliding and folding door system with exclusive features that meets the highest requirements with regard to insulation, stability and safety.

Available as Functional Style with flush, low and high performance thresholds.


Features and benefits:

  • Window or door functionality for the first vent.
  • Multiple panel arrangements of up to seven panels opening in or opening out.
  • Flat, low and high performance threshold options.
  • Accommodates leaf weights of up to 90 kg.
  • Integrated and centrally built-in bottom rolling system.
  • Drained and ventilated glazing with EPDM synthetic rubber gaskets.
  • Choose from a full range of polyester powder coat colours and anodized finishes.
  • Dual colour available offering a different colour inside and out.
  • Weather stripped profiles with polyamide thermal breaks.
  • Ten-ear systems guarantee provided as standard.
  • Meets the very stringent requirements to be awarded the Secured by Design accreditation.
  • CAD and BIM details available on request.


Thermal insulation (to EN 10077-2:2012):

  • Double glazing: 1.6 W/m²K (Ud value depending on the frame/ vent combination and glass unit specification).
  • Triple glazing: 1.4 W/m²K (Ud value depending on the frame/ vent combination and glass unit specification).

General information

Color

-

Manufacturer guidance

Reynaers offers more than 450 colour AAMA finishes for their frames, including natural, champagne, bronze, and black 12. The AAMA classifications refer to durability and humidity exposure resistance, with higher numbers indicating longer-lasting finishes 2. Please contact us direct for further information.

Finish

Anodized

Powder-coated

Material

Aluminium

Glass

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Guidance for specification option:

Frame width 68 mm.

Height

Bespoke

Warranty description

Ten year

Manufacturer guidance

Reynaers offers a ten-year system guarantee. Please get in touch with Reynaers directly for further information.

Uniclass

Pr_30_59_24_81 Sliding folding doorsetsPrimary

CAWS

L20/530 Sliding folding external doors

L20/60 Doors

Specification data - Sliding folding doorsets

Grade

Insulated.

Format

Bi-fold, inward opening.

Bi-fold, outward opening.

Manufacturer guidance

See Configuration below for door leaf arrangements.

Track system

Manufacturer's standard.

Door leaf

-

Construction

Manufacturer's standard.

Guidance for specification option:

See manufacturer's literature and Profile for guidance.

Finish

Powder coating to BS EN 12206-1.

Powder coating to APA Qualicoat standard.

Anodized to EWAA/ EURAS-Qualanod standard.

Anodized to BS 3987.

Manufacturer guidance

Colour details specified separately below.

Insert details if different finish is required internally and externally.

Operation

Manual.

Hardware

Horizon handles, anodized.

Horizon handles, powder coated.

Guidance for specification option:

Insert requirements; available in one of 400+ RAL colours.

Orchid handles, black.

Guidance for specification option:

Powder coated.

Orchid handles, white.

Guidance for specification option:

Powder coated.

Orchid handles, powder coated.

Guidance for specification option:

Insert requirements; available in one of 400+ RAL colours.

Shield handles, unpolished natural anodized.

Standard handles.

Profile

CF 68 Functional Folding and Sliding Door.

Guidance for specification option:

A thermally improved three-chamber system for doors.

CF 68-HI Functional Folding and Sliding Door.

Guidance for specification option:

A highly insulated version.

Manufacturer guidance

  • Profiles shall be extruded from EN AW-6060 (AlMgSi0.5 F22) aluminium alloy to comply with EN 573 – parts 3 and 4.
  • Designed and manufactured to comply with BS 4873.
  • Outer frame members shall be 68 mm front to back and square cut. All corner joints to be assembled with screwed corner joints and glued. All joints shall be sealed during fabrication against water entry.
  • Profiles are insulated with glass fibre reinforced polyamide strips, separating the internal and external faces, mechanically jointed and glued to form a single compound profile.
  • Dry glazed to accommodate a wide range of single, double and triple glazing units with internal clip-in aluminium glazing beads.
  • Weather-stripping to be EPDM extruded synthetic rubber gaskets to DIN 7863 and ISO 3934, set in undercut grooves in the frame and vent.
  • CE Marking fully compliant with the EU Construction Products Directive (CPD) to the relevant product standard BS EN 14351-1 for windows and doors and BS EN 13830 for curtain walls.
  • Manufactured and supplied under the requirements of ISO 14001, the internationally accepted standard that outlines an effective environmental management system.
  • Manufactured and supplied under a quality system certified to BS EN ISO 9001: 2000.
  • The manufacturer guarantees that the system meets the technical specifications and standards of the country and the product in question. The current processing and maintenance regulations mentioned in the manufacturer's catalogues determine the extent of this ten-year guarantee (five-year guarantee for wearing parts).

Configuration

Folding type 2-0-2.

Folding type 3-0-3.

Folding type 3-1-2.

Folding type 4-0-4.

Folding type 4-1-3.

Show more

Manufacturer guidance

Consult manufacturer's literature for further details.

External colour

-

Manufacturer guidance

Insert requirements based on finish(es) specified.

Profiles can be finished with different internal and external colours, powder coated or anodized (specify finish above; internal colour details below):

  • Powder coating available in a range of RAL or ‘Coatex’ colours; consult manufacturer for details.
  • Anodized: Satin or bronze colours; consult manufacturer for details.

Internal colour

-

Manufacturer guidance

Insert requirements based on finish(es) specified.

Profiles can be finished with different internal and external colours, powder coated or anodized (specify finish above; external colour details also above):

  • Powder coating available in a range of RAL or ‘Coatex’ colours; consult manufacturer for details.
  • Anodized: Satin or bronze colours; consult manufacturer for details.

Threshold

-

Manufacturer guidance

Insert requirements for threshold performance level (consult manufacturer for options).

Installation fasteners

-

Manufacturer guidance

Insert requirements.


Fixings must ensure the door is retained securely within the opening without damage or distortion to the window frame.

Generally, fasteners should be positioned 150 mm from each corner and each mullion/ transom, and at centres not exceeding 600 mm.

Glazing details

Double glazed.

Guidance for specification option:

Insert details of glazing unit including, spacer type and dimension, glass type (emissivity, safety, solar, G-value and energy factors) and thickness (12–55 mm).


Glass to be set against extruded EPDM rubber gaskets retained in undercut grooves within the aluminium profile and clip-in glazing beads.

Thermal

1.6 W/m²K.

Guidance for specification option:

Ud value dependent on the frame/ vent combination and glass unit specification.

Air permeability

Up to 600 Pa (class 4).

Guidance for specification option:

Refer to manufacturer's product CE Passport certificates for clarification.

Watertightness

Up to 600 Pa (class 9A).

Guidance for specification option:

Refer to manufacturer's product CE Passport certificates for clarification.

Resistance to wind load

Up to 1200 Pa (class B3).

Guidance for specification option:

Refer to manufacturer's product CE Passport certificates for clarification.

Acoustic performance

Rw (C;Ctr) = 35 (-1;-4) to 40 (-2;-4) dB.

Guidance for specification option:

Depending on the glazing type specified.

Security level

PAS 24:2012 (UK Secured by Design standard) and RC2/ WK2 (European standard EN(V)1627–EN(V)1630 (windows).

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Material

Aluminium

Glass

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

-

Manufacturer guidance

On a project specific basis Reynaers can offer 75% + post-consumer scrap. Please contact Reynaers direct for further information.

Recyclability

-

Manufacturer guidance

Aluminium is one of the most recycled materials on Earth and can be recycled endlessly into itself. It is 100% recyclable and retains its properties indefinitely.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

Due to the global limited availability of recycled aluminium, the objective to increase recycled content to 75% doesn't have any environmental benefit. Increasing recycled content for 1 project or product only means other projects/products contain less.

However, Reynaers Aluminium works closely together with its suppliers to ensure a correct % of recycled content. As there is a variation between the recycled content provided by these suppliers, we communicate the annual averages.


For specific projects, Reynaers Aluminium can select a supplier with high recycled content, possibly with price impact and extended delivery times.


To improve the environmental impact of aluminium, Reynaers Aluminium focusses on following important aspects:

•   Use recycled content: work together with suppliers to ensure the use of recycled content.

•   Purchase low carbon primary aluminium: decrease the CO2 impact of the primary aluminium, which is necessary to produce extrusion billets, by using low carbon primary aluminium, produced by green electricity (primarily hydro power).

•   Work closely together with European Aluminium to improve the global impact of aluminium production and improve sorting and recycling.

This approach has the most impact as it combines short term with long term improvements of the aluminium industry, to make a clear environmental shift.
