Aluminium Click-on Battens

Verified by manufacturer 3 months ago

Sculptform Ltd

Acoustic battens for feature walls, ceilings and facades available in a range of aluminium finishes including powder coat, anodised, wood finish and real timber veneer.

Jump to:
+44 (0)300 1100 888 Website

Application

External applications:

  • Soffits
  • Walls (horizontal and vertical installation)
  • Facades
  • Screens


Internal applications:

  • Suspended ceilings
  • Direct fixed ceilings
  • Walls (horizontal and vertical install)
  • Curved Walls
  • Screening

Description

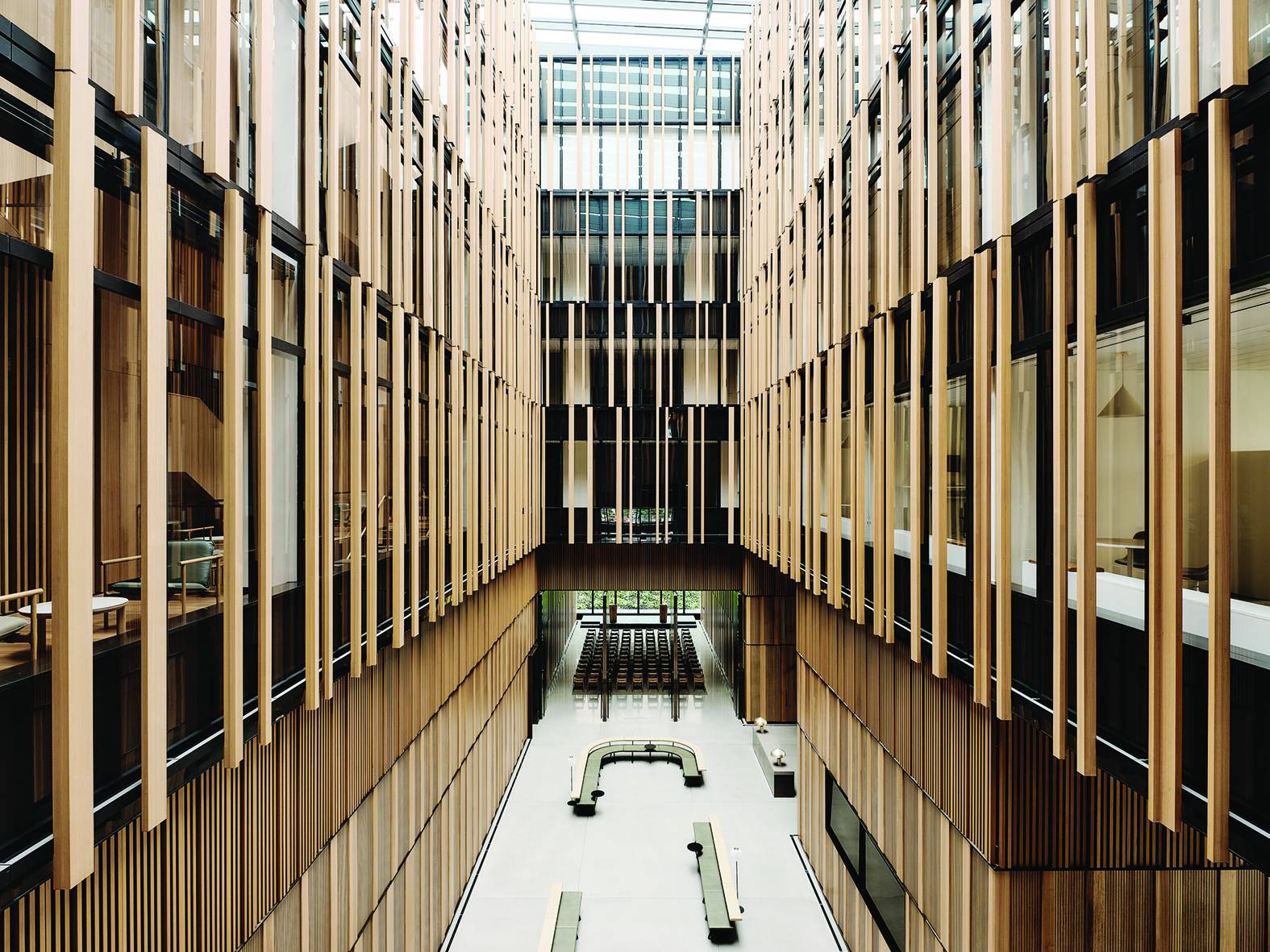

Aluminium battens can be used to create feature walls and ceilings in both interior and exterior applications. Providing clean, linear textures in a huge range of sizes and finishes, aluminium battens offer designers endless possibilities for their architectural projects.


Pre-finished 100% Aluminium Click-on Battens are lightweight and available in lengths up to 6 metres. Plus, they achieve excellent fire rating results due to being non-combustible.


Aluminium profiles are fixed to mounting tracks with clips allowing for fast click-on installation, without the hassle of screw fixing. This simplicity decreases site time, providing value to the overall cost of the project. There are a range of clip options depending on site requirements and the design intent, also a variety of mounting tracks to suit.

General information

Color

Brown

Gold

Silver

Bronze

Black

Show more

Finish

Veneered

Anodized

Powder-coated

Woodgrain

Material

Aluminium

Shape

Rectangle

Crescent

Circle

Square

Other

Length

Bespoke

Width

Height

50 mm

60 mm

100 mm

20 mm

30 mm

Warranty description

15 year

Uniclass

Ss_25_25_75_05 Acoustic panel lining systemsPrimary

CAWS

K40/115 Unit/ modular suspended ceiling system

K40/10 Unit/ modular suspended ceilings

K13/170 Acoustic panel lining

K13/170 Acoustic panel lining

Specification data - Acoustic panel lining systems

Battens

Aluminium mounting tracks - 45 x 25 mm Std Track.

Aluminium mounting tracks - 25 x 25 mm Slim Line.

Aluminium mounting tracks- 45 x 32 mm Ceiling Track.

Acoustic insulation

PET acoustic panel.

Guidance for specification option:

7mm thick, 50% recycled, thermally bonded.

Fire properties: SMOGRArc < 0.6 m2/s2 in accordance with AS ISO 9705:2003 (R2016). Ref. Branz Test Report: FI13078-002. Issued: 14/10/2020.

Panelling

-

Type

Aluminium battens.

Surface finish

Wood finish aluminium (Olefin Embossed Film).

Real timber veneer.

Guidance for specification option:

For internal only applications.

Anodized.

Powder-coating.

Guidance for specification option:

Dulux and Interpon.

Manufacturer guidance

Over 85 colours/ finishes are available. Consult manufacture's literature and insert requirements.

Fasteners

Clip/spring connection system.

Guidance for specification option:

Zamak EZDA 3 (Zinc Alloy 3) injection cast with ALZIN ESP-SF Clear coating.

System accessories

None.

Suspended Ceiling Connector Clip and Joiner.

Profiles

Block 50 x 50 mm.

Block 50 x 100 mm.

Block 50 x 150 mm.

Block 100 x 25 mm.

Block 25 x 50 mm.

Show more

FireRating

Exterior: To AS 1530.1:1994, Non-combustible; Interior: AS/NZS 3837:1998, Group 1.

Sustainability data

Country of material origin

Australia

Country of product manufacture

Australia

Material

Aluminium

Recyclability

Yes

Expected Life

15 year
