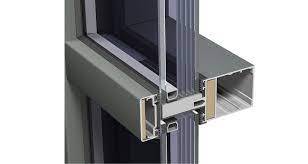

Stick curtain wall facade system. Mullion drained stick curtain wall facade with multiple options for capping. Fire resistant solutions EI30 and EI60
50 mm facade and roof system available in several design and glazing variants, including different technical variants to comply with specified levels of fire-resistance and thermal insulation.
The design variants offer solutions for both the exterior and the interior of the building. The glazing variants range from using standard pressure plates, to structurally glazed and structurally clamped solutions.
Curtain Wall CW 50 is a 50 mm facade and roof system that offers unlimited design freedom and allows maximum transparency. Innovative solutions contribute towards the tendency of big heavy and high insulated glass panes.
The system is available in several design and glazing variants, but also includes different technical variants to comply with specified levels of fire-resistance and thermal insulation, along with blast resistance as options.
The design variants offer solutions for both the exterior and the interior of the building. The glazing variants range from using standard pressure plates, to structurally glazed and structurally clamped solutions.
Features and benefits:
Color | Manufacturer guidanceReynaers offers more than 450 colour AAMA finishes for their frames, including natural, champagne, bronze, and black 12. The AAMA classifications refer to durability and humidity exposure resistance, with higher numbers indicating longer-lasting finishes 2. Please contact us direct for further information. |
Finish | Anodized Powder-coated |
Material | Aluminium Glass |
Length | Bespoke |
Width | Bespoke Guidance for specification option: Frame width 50 mm. |
Height | Bespoke |
Warranty description | Ten year Guidance for specification option: Standard system guarantee (five-year guarantee for wearing parts). Manufacturer guidanceReynaers guarantees that its systems meet the highest technical specifications and standards. We therefore issue a 10-year system guarantee. This is an insurance on the aluminium profiles, lacquer or anodisation layer, as well as on the insulation. On the accessories, we grant a 5-year system guarantee. |
Uniclass | |
CAWS | H11/110 Curtain walling |
Framing | |
Frame members | Aluminium curtain wall frame sections, colour/ finish.Guidance for specification option: Colour/ finish:
Consult manufacturer and insert requirements. |
Fasteners | Manufacturer's standard. |
Cladding units | |
Glass units | Double glazed.Guidance for specification option: Insert requirements; 6–62 mm. Include details of spandrel and/ or vision panels as required. Triple glazed.Guidance for specification option: Insert requirements; 6–62 mm. Include details of spandrel and/ or vision panels as required. Single glazed.Guidance for specification option: Insert requirements; 6–62 mm. Include details of spandrel and/ or vision panels as required. Manufacturer guidanceGlazing units: Gaskets, cover plate fixed. Contact the glass supplier for details of the glazing unit including, spacer type and dimension, glass type (emissivity, safety, solar, G-value and energy factors), thickness and weight. Glass to be set against extruded EPDM rubber gaskets retained in undercut grooves within the aluminium profile. |
Panels and facings | |
Material | Manufacturer guidanceInsert requirements, including: Panel type, external material/ finish/ colour and core insulation. Finish/ colour:
|
Thermal insulation | Manufacturer guidanceInsert requirements. |
Internal linings | Manufacturer guidanceInsert requirements (internal material/ finish/ colour). Can be powder coated in a range of RAL or ‘Coatex’ colours to APA Qualicoat standard or BS EN 12206-1:2004, or anodized in satin or bronze colours to EWAA/ EURAS-Qualanod standard or BS 3987:1991. |
Fasteners | Manufacturer guidanceInsert requirements. |
Perimeter seals | None.Perimeter flashings. |
External cover cap | Aluminium, colour/ finish. Guidance for specification option: Colour/ finish:
Insert 'As Framing members.' or consult manufacturer and insert requirements. |
Incorporated components | None. Doors. Guidance for specification option: Consult manufacturer for options and insert requirements. Opening lights. Guidance for specification option: Consult manufacturer for options and insert requirements. Sun screens. Guidance for specification option: Sun screen systems from a range of Brise Soleil components; consult the manufacturer and insert requirements. Manufacturer guidanceCW 60 concealed inserts, top hung, parallel opening options available. Consult the manufacturer for details and insert requirements. |
Air permeability | Up to 1200 Pa (class AE1200). Guidance for specification option: Refer to manufacturer’s product CE Passport certificates for clarification. |
Watertightness | Up to 1200 Pa (class RE1200). Guidance for specification option: Refer to manufacturer’s product CE Passport certificates for clarification. |
Resistance to wind load | Up to 2000 Pa (class 5). Guidance for specification option: Refer to manufacturer’s product CE Passport certificates for clarification. |
Acoustic performance | Rw (C;Ctr) = 33 (-1;-3) to 60 (-2;-6) dB. Guidance for specification option: Depending on the glazing type specified. |
Security | RC2/ WK2 and RC3/ WK3 (European standard EN 1627–EN 1630). |
Third-party certification | Tested and certified in accordance with the relevant BS EN and Centre for Window and Cladding Technology (CWCT) Curtain Wall Standards (tested and certified to the CWCT Standard Sequence B). |
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Material | Aluminium Glass |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | Manufacturer guidanceOn a project specific basis Reynaers can offer 75% + post-consumer scrap. Please contact Reynaers direct for further information. |
Recyclability | Manufacturer guidanceAluminium is one of the most recycled materials on Earth and can be recycled endlessly into itself. It is 100% recyclable and retains its properties indefinitely. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidanceDue to the global limited availability of recycled aluminium, the objective to increase recycled content to 75% doesn't have any environmental benefit. Increasing recycled content for 1 project or product only means other projects/products contain less. However, Reynaers Aluminium works closely together with its suppliers to ensure a correct % of recycled content. As there is a variation between the recycled content provided by these suppliers, we communicate the annual averages. For specific projects, Reynaers Aluminium can select a supplier with high recycled content, possibly with price impact and extended delivery times. To improve the environmental impact of aluminium, Reynaers Aluminium focusses on following important aspects: • Use recycled content: work together with suppliers to ensure the use of recycled content. • Purchase low carbon primary aluminium: decrease the CO2 impact of the primary aluminium, which is necessary to produce extrusion billets, by using low carbon primary aluminium, produced by green electricity (primarily hydro power). • Work closely together with European Aluminium to improve the global impact of aluminium production and improve sorting and recycling. This approach has the most impact as it combines short term with long term improvements of the aluminium industry, to make a clear environmental shift. |
