Verified by manufacturer 6 months ago
Alloy 1050 (Powder Coating or Mill Finish)
EN 13501-1 (Efectis)
Certificate type
Independent sustainability assessment
Certificate type
R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041
Certificate type
ISO 9001 Quality Management
Certificate type

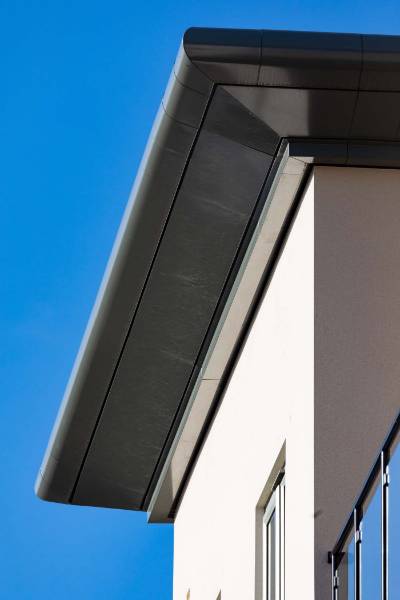

Aluminium Fascia - Bullnose Fascia Soffit & Optional Hidden Gutter
Aluminium Fascia suitable for:
Dales Fabrications Ltd design and manufacture a range of architectural systems incorporating aluminium soffits and fascias. In addition to the standard systems, they can also design and manufacture bespoke systems to suit individual project requirements.
Features and benefits:
Color | Beige Black Blue Bronze Brown Manufacturer guidanceDependent on finish; consult manufacturer and insert requirements. |
Finish | Anodized Mill Powder-coated Manufacturer guidancePVF2 also available. |
Material | Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 25 year |
Uniclass | |
CAWS | G20/950 Fascias/ barges/ soffits G20/99 Fascias/ barges/ soffits R10/321 Combined fascia, soffit and gutter |
Product range |
Material | Aluminium.Guidance for specification option: To BS EN 485, BS EN 515 and BS EN 573, Grade 1050 AH14. |
Finish | |
Coating | Mill.Syntha Pulvin powder coating to BS 6496.Timber effect powder coating. |
Colour | Standard (PPC).Guidance for specification option: Contact manufacturer and insert requirements. RAL & BS (PPC).Guidance for specification option: Contact manufacturer and insert requirements. Metallic (PPC).Guidance for specification option: Contact manufacturer and insert requirements. Anodite (PPC).Guidance for specification option: Contact manufacturer and insert requirements. Special (PPC).Guidance for specification option: Contact manufacturer and insert requirements. |

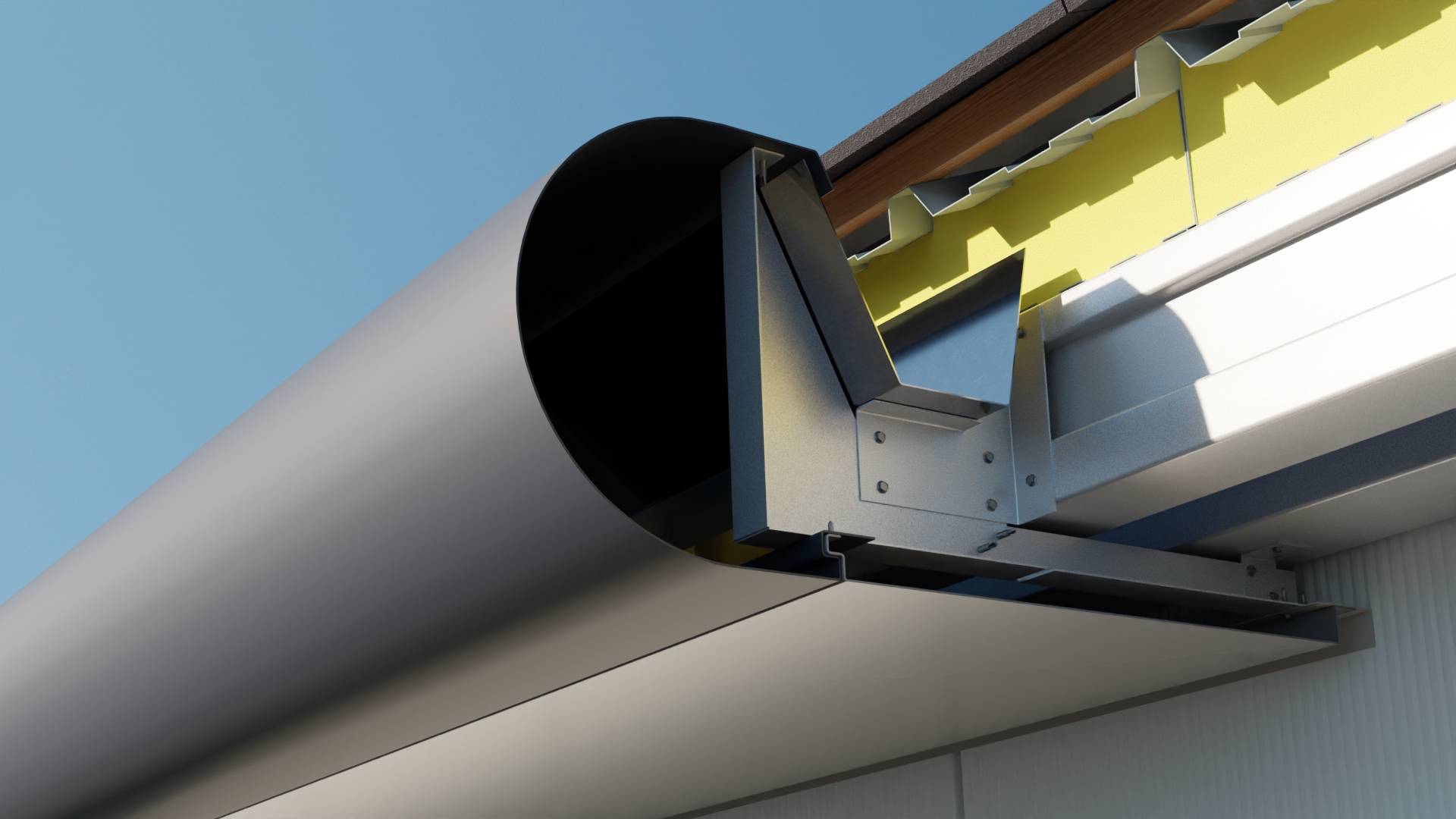

Fixing | Direct fix. Guidance for specification option: Can be fixed directly to timber or steel primary supports. Plexus carcass system. Guidance for specification option: A secondary support system may consist of only one or two pieces of galvanized steel angle, designed to incorporate appropriate tolerances and positioned to provide a straight and level substructure onto which the eaves system can be installed. |
Hidden gutter | Required. Not required. |
Depth | 225–400 mm. Manufacturer guidanceFascia depth. |
Width | 50–180 mm. Manufacturer guidanceFascia width. |
Profile | 1500 mm. Guidance for specification option: Maximum. Manufacturer guidanceFascia Profile. |
Gauge | 14. Guidance for specification option: 2 mm. Manufacturer guidanceFascia gauge. |
Joint | Butt joint. Guidance for specification option: Method of jointing fascia: Butt jointed with 3 mm expansion gap, secured with 3 mm pop rivet through pre-punched slot into profiled butt strap. |
Type | Kwikfix planks. Perpendicular Kwikfix planks. Secret fix panels. Standard panels. Manufacturer guidanceSoffit type. |
Accessories | Not required. Pre-formed ventilation slots. Joint straps. Stop ends. Internal and external corners. |
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
Platform | Compatible | Version |
---|---|---|
- | 1 | |
- | 1 |
EN 13501-1 (Efectis)
DALES SFX PPC CLADDING PANELS: EN 13501-1:2018 REACTION TO FIRE CLASSIFICATION
Independent sustainability assessment
CLOSED LOOP RECYCLING SCHEME (CAB)
EN 13501-1 (Efectis)
INTERPON-D PPC: EN 13501-1:2018 REACTION TO FIRE CLASSIFICATION
R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041
SYNTHA PULVIN PPC: EN 13501-1:2018 REACTION TO FIRE CLASSIFICATION
ISO 9001 Quality Management
ISO 9001:2015 Quality Assurance
