Aluminium Fascia - Elliptical Fascia Profile - Metal Trims
Verified by manufacturer 11 days ago
Alloy 1050 (Powder Coating or Mill Finish)
Alloy 1050 (Powder Coating or Mill Finish)
Independent sustainability assessment
Certificate type
EN 13501-1 (Efectis)
Certificate type
R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041
Certificate type
ISO 9001 Quality Management
Certificate type

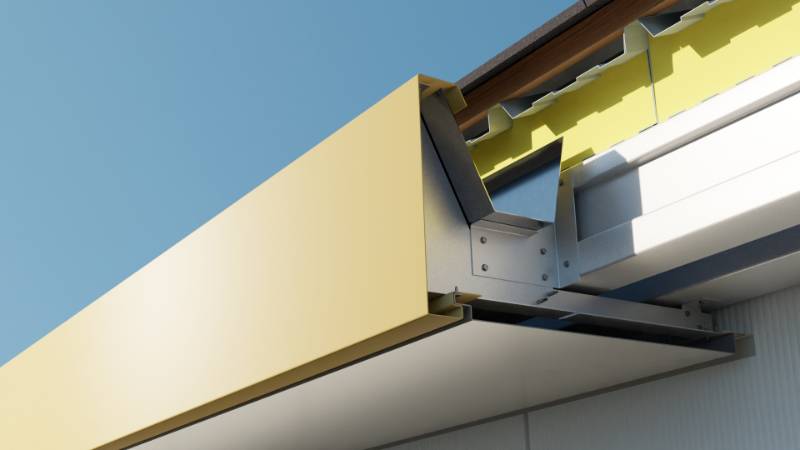

Elliptical fascias provide a modern and sleek eaves profile whilst keeping the leading edge of the system to a minimum.
Application
Aluminium Fascia suitable for:
- Residential.
- Education.
- Healthcare.
- Commercial.
- Leisure.
- Mixed Use.
- Infrastructure.
- Retail.
Description
Dales Fabrications Ltd design and manufacture a range of architectural systems incorporating aluminium soffits and fascias. In addition to the standard systems, they can also design and manufacture bespoke systems to suit individual project requirements.

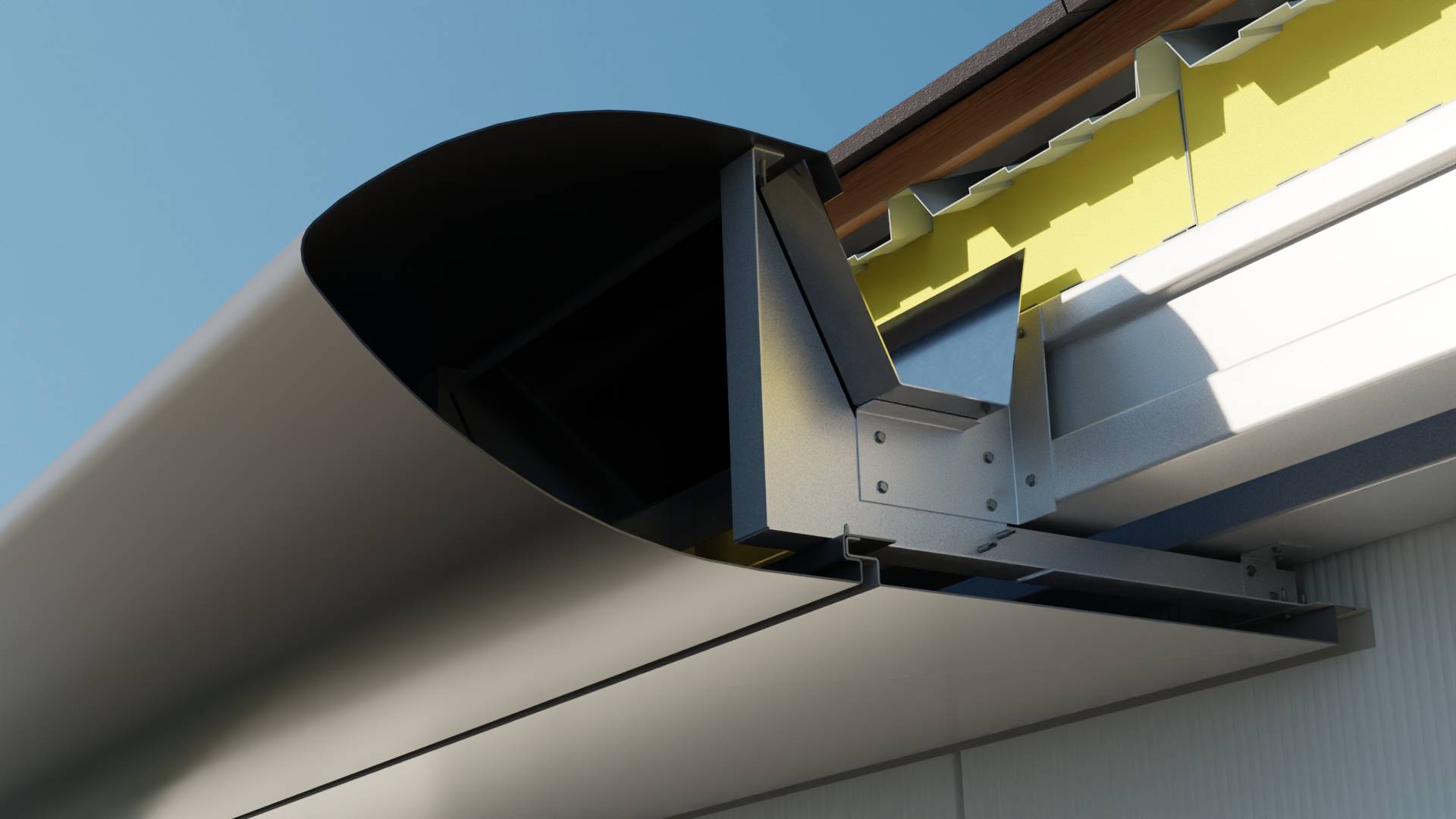

Elliptical fascias provide a modern and sleek eaves profile whilst keeping the leading edge of the system to a minimum. This can be very useful if you wish to minimize the appearance of a deep roof construction.
Features and benefits:
- Sleek profile.
- Sustainable.
- Low maintenance.
- 100% recyclable.
- 25-year guarantee.
General information
Color | Beige Black Blue Bronze Brown |
Finish | Powder-coated Mill Anodized Manufacturer guidanceIncludes timber and PVF2 finish. |
Material | Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 25 year |
Uniclass | |
CAWS | G20/99 Fascias/ barges/ soffits G20/950 Fascias/ barges/ soffits R10/321 Combined fascia, soffit and gutter |
Product range |
Specification data - Metal finishing trims
Material | Aluminium sheet to BS EN 485, BS EN 515 and BS EN 573, Grade 1050 AH14. |
Finish | |
Coating | Mill.Syntha Pulvin polyester powder coating.Guidance for specification option: To BS 6496. Timber effect powder coating. |
Colour | Standard (PPC).Guidance for specification option: Contact manufacturer and insert requirements. RAL & BS (PPC).Guidance for specification option: Contact manufacturer and insert requirements. Metallic (PPC).Guidance for specification option: Contact manufacturer and insert requirements. Anodite (PPC).Guidance for specification option: Contact manufacturer and insert requirements. Special (PPC).Guidance for specification option: Contact manufacturer and insert requirements. |
Profiles | Elliptical fascia. |
Size | 1500 mm (maximum). |
Fixing | Direct fix. Guidance for specification option: Can be fixed directly to timber or steel primary supports. Plexus carcass system. Guidance for specification option: A secondary support system may consist of only one or two pieces of galvanized steel angle, designed to incorporate appropriate tolerances and positioned to provide a straight and level substructure onto which the eaves system can be installed. Manufacturer guidanceButt jointed with 3 mm expansion gap, secured with 3 mm pop rivet through pre-punched slot into profiled butt strap. |
Hidden gutter | Required. Guidance for specification option: Consult manufacturer for details of sizes, fixing etc. Not required. |
Other requirements | Required. Guidance for specification option: Consult manufacturer and insert requirements. Not required. Manufacturer guidancePreformed ventilation slots, slots sized to stop the ingress of nesting or winged insects, pre-cut holes for items such as waste vents can be incorporated into panels to eliminate site cutting. This can also be used with off-site assembly to integrate LED lighting or other components. Consult manufacturer for more information. |
Accessories | Not required. Pre-formed ventilation slots. Joint straps. Stop ends. Internal and external corners. |
Steel thickness | Fascia: 14 gauge (2 mm). |
Depth | 225–400 mm. |
Width | 50–180 mm. |
Type | Kwikfix planks. Perpendicular Kwikfix planks. Secret fix panels. Standard panels. Manufacturer guidanceSoffit. |
Finish | Anodized. Mill finish. PVF2. Syntha Pulvin polyester powder coating. Guidance for specification option: To BS 6496. Timber effect powder coating. Manufacturer guidanceSoffit. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
Independent sustainability assessment
CLOSED LOOP RECYCLING SCHEME (CAB)
EN 13501-1 (Efectis)
INTERPON-D PPC: EN 13501-1:2018 REACTION TO FIRE CLASSIFICATION
R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041
SYNTHA PULVIN PPC: EN 13501-1:2018 REACTION TO FIRE CLASSIFICATION
EN 13501-1 (Efectis)
DALES SFX PPC CLADDING PANELS: EN 13501-1:2018 REACTION TO FIRE CLASSIFICATION
ISO 9001 Quality Management
ISO 9001:2015 Quality Assurance
Literature
Aluminium Fascia Soffits & Complete Eaves Systems
Case studies

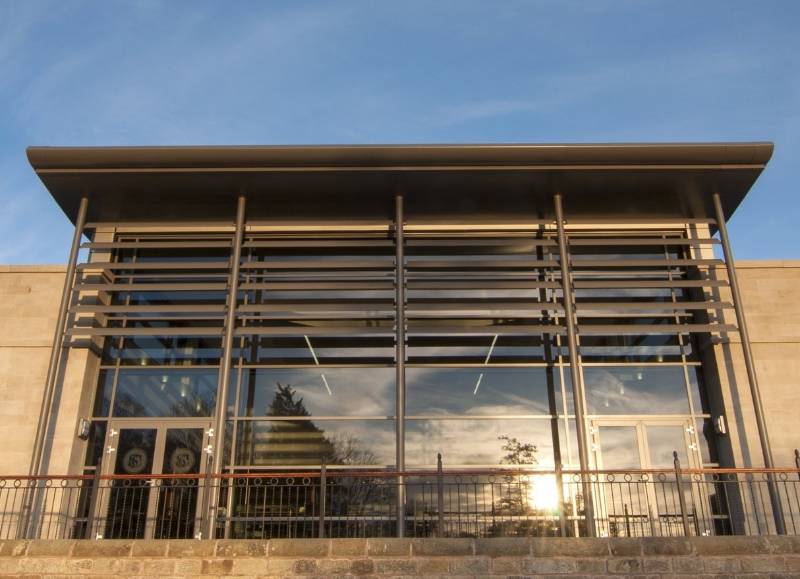

Stonyhurst College’s New Refectory Keeps cool with Solar Shades from Dales
