Aluminium Green Roof Inspection Chambers (Deck Version)
Verified by manufacturer 3 days ago
Aluminium inspection chamber for roof outlets.
Application
For green roofs.
Description

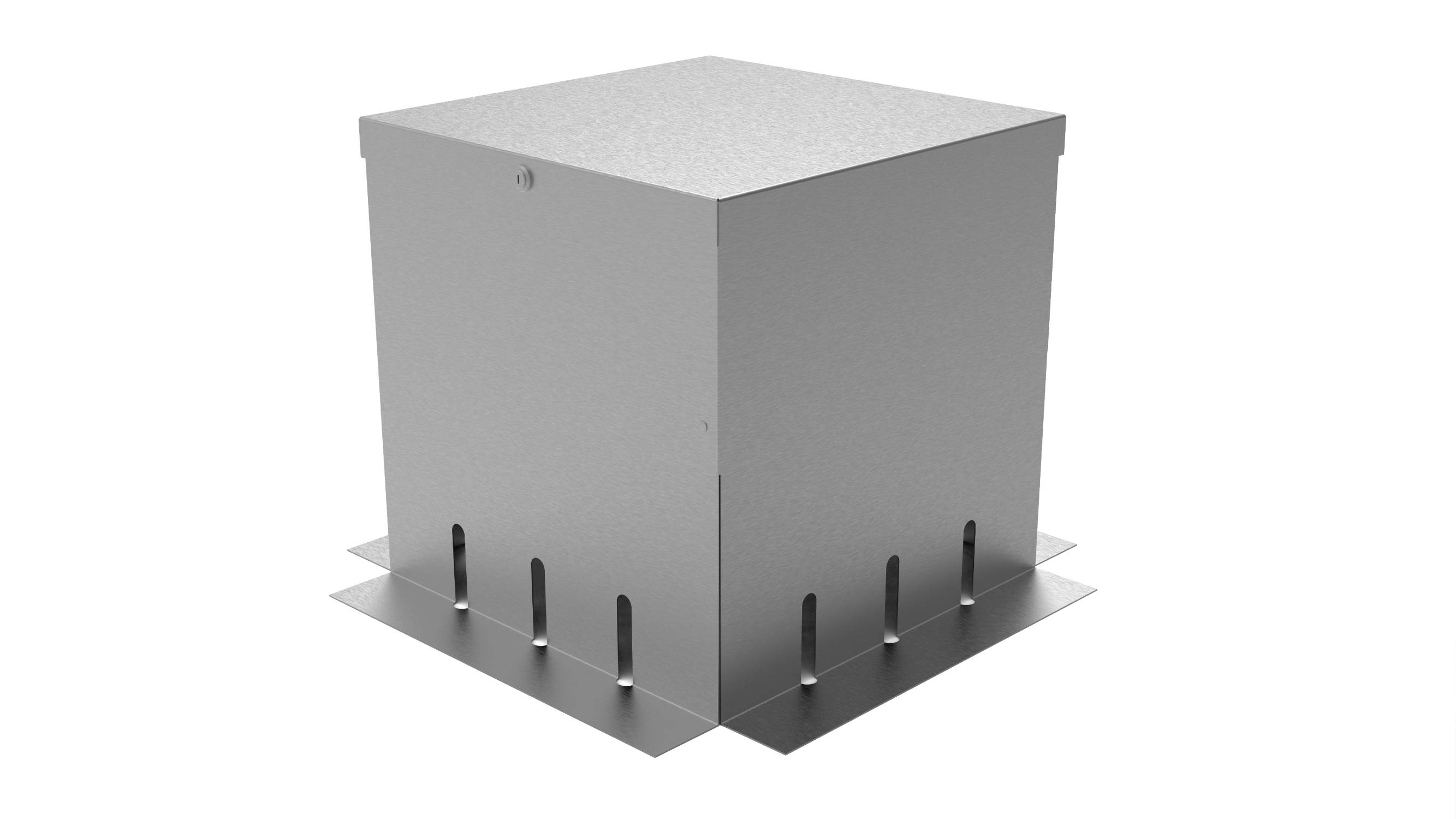

Aluminium Green Roof Inspection Chambers are water-permeable boxes designed to fit around roof outlets on living roofs.
The inspection chambers help to contain mass materials, such as the growing substrate and border pebbles, from entering the drainage system while allowing for simple inspection and water flow.
The base chambers are manufactured in two standard sizes, with corresponding interlocking mid-sections to cater for different levels of build-up and a lockable lid section.
General information
Color | Silver |
Finish | Mill |
Material | Aluminium |
Shape | Square |
Length | 300 mm 450 mm |
Width | 300 mm 450 mm |
Height | 150 mm 200 mm 250 mm 350 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | Q37/430 Inspection chambers |
Specification data - Access covers, gratings and frames
Configuration | Inspection chamber. |
Finish | Mill finish aluminium.Guidance for specification option: Thickness: 1.5 mm. |
Clear opening (minimum) | 300 x 300 mm.450 x 450 mm.Manufacturer guidanceBase. |
Integral accessories | Lockable lid. |
Height | 150 mm. 200 mm. 250 mm. 350 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Aluminium |
Manufacturing plant location | |
Recyclability | 100% Recyclible |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Expected Life | 25 year |
Literature
Metal Profiles - 1050A Aluminium TDS
Metal Profiles - Aluminium Inspection Chamber TDS
Metal Profiles Powdercoating RAL & BS Colour Chart
