Aluminium Gutter - Classic - Gutter

Verified by manufacturer 11 days ago

J57S UP (Anodised Finish)

Dales Fabrications Ltd - Aluminium Eaves Products Variant:
Third party certifications:
  • Independent sustainability assessment

    Independent sustainability assessment

    Certificate type

  • EN 13501-1 (Efectis)

    EN 13501-1 (Efectis)

    Certificate type

  • R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041

    R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041

    Certificate type

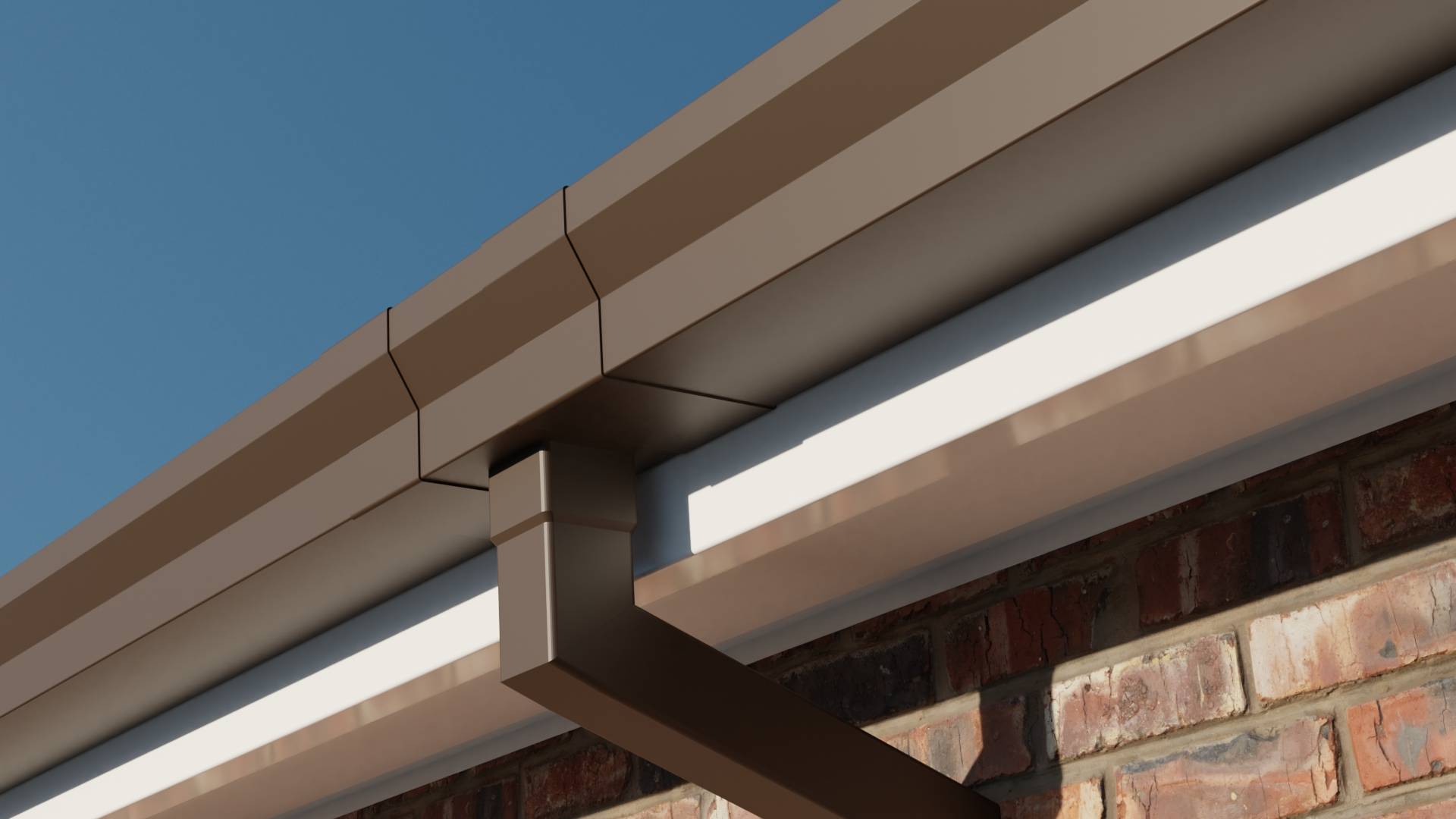

Aluminium box gutter, profiled front face, 155 x 131 mm.

Jump to:
BOS
 +44 (0)115 9301521 Website

Application

  • Residential.
  • Education.
  • Healthcare.
  • Commercial.
  • Leisure.
  • Mixed Use.
  • Infrastructure.
  • Retail.


Description

Dales Classic gutter has been adapted to suit a variety of situations. An increasingly popular method of support is the top fix, internal gutter bracket. This has now been adopted as a standard and is usually referred to as the ‘New Classic’.


Features and benefits:

  • Polyester powder coated to BS 6496.
  • Available in satin, gloss and matt.
  • A wide range of standard components are available.
  • Dales Fabrications Ltd are able to offer purpose made components to suit individual project requirements.

General information

Color

Beige

Black

Blue

Bronze

Brown

Show more

Manufacturer guidance

Available in a range of colours, contact manufacturer for details.

Finish

Powder-coated

Guidance for specification option:

Polyester powder coated to BS 6496 available in matt, gloss and satin.

Material

Aluminium

Shape

Square

Rectangle

Length

3000 mm

Width

154 mm

Height

120 mm

Uniclass

Pr_65_50_35_06 Aluminium eaves guttersPrimary

CAWS

R10/11 Aluminium gutters

R10/311 Aluminium gutters

Product range

Gutters / Classic gutters

Specification data - Aluminium eaves gutters

Form

Pressed to BS 9101:2017.

Size (nominal width)

154 mm.

Thickness or gauge

2.0 mm.

Finish

Anodized.

Colour

ANOLOK BRONZE 541.

ANOLOK BRONZE 543.

ANOLOK BRONZE 545.

ANOLOK BRONZE 547.

ANOLOK BRONZE 549.

ANOLOK BRONZE 54B.

ANOLOK II BLUE-GREY B711.

ANOLOK II BLUE-GREY B713.

ANOLOK II BLUE-GREY B715.

ANOLOK II BLUE-GREY B717.

ANOLOK II STONE GREY.

UA 100-0.

Guidance for specification option:

Lime green.

UA 100-1.

Guidance for specification option:

Yellow.

UA 100-2.

Guidance for specification option:

Dark grey / black.

UA 100-A.

Guidance for specification option:

White / beige.

UA 120-0.

Guidance for specification option:

Yellow / brown.

UA 120-1.

Guidance for specification option:

Light brown.

UA 120-2.

Guidance for specification option:

Brown.

UA 130-0.

Guidance for specification option:

Light red.

UA 130-1.

Guidance for specification option:

Red.

UA 130-2.

Guidance for specification option:

Red /brown.

UA 140-0.

Guidance for specification option:

Dark red.

UA 140-1.

Guidance for specification option:

Pink.

UA 150-0.

Guidance for specification option:

Light blue.

UA 150-1.

Guidance for specification option:

Dark blue.

UA 150-2.

Guidance for specification option:

Metallic.

UA 160-1.

Guidance for specification option:

Dark blue.

UA REGENCY GOLD 1.

UA REGENCY GOLD 2.

UA REGENCY GOLD 3.

Film thickness (minimum)

60 microns.

Texture

Gloss.

Guidance for specification option:

Available at standard rate for most colours.

Matt.

Guidance for specification option:

Available at standard rate for many colours. Consult manufacturer for details.

Satin.

Guidance for specification option:

Non-standard for most colours; a surcharge will usually apply. Consult manufacturer for details.

Corners

Not required.

NC-05-090-E 90° external corner.

NC-05-090-I 90° internal corner.

NC-05-135-E 135° external corner.

NC-05-135-I 135° internal corner.

Show more

Manufacturer guidance

Fitttings.

Outlets

NC-04-076-D 76.2 mm round outlet.

NC-04-076-S 76.2 mm square outlet.

NC-04-101-D 101.6 mm round outlet.

NC-04-101-S 101.6 mm square outlet.

As drawing ___.

Show more

Manufacturer guidance

Fittings.

Stop end

NC-03-000-L left hand stop end.

NC-03-000-R right hand stop end.

As drawing ___.

Contractor's choice.

Manufacturer guidance

Fittings.

Joint strap

NC-02-000-X.

Manufacturer guidance

Fittings.

Brackets

NC-06-000-X top fix internal bracket.

Manufacturer guidance

Fittings.

Length

3 m.

Manufacturer guidance

Gutter length.

Size

155 x 131 mm.

Manufacturer guidance

Profile size.

Capacity

5.36 L/s.

Guidance for specification option:

Gutter.

2.68 L/s.

Guidance for specification option:

76.2 mm round outlet.

3.35 L/s.

Guidance for specification option:

76.2 mm square outlet.

4.86 L/s.

Guidance for specification option:

101.6 mm round outlet.

5.98 L/s.

Guidance for specification option:

101.6 mm square outlet.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Recyclability

100%

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
 -

1

Revit
 -

2

Third party certifications

Independent sustainability assessment

Independent sustainability assessment

CLOSED LOOP RECYCLING SCHEME (CAB)

EN 13501-1 (Efectis)

EN 13501-1 (Efectis)

INTERPON-D PPC: EN 13501-1:2018 REACTION TO FIRE CLASSIFICATION

R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041

R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041

SYNTHA PULVIN PPC: EN 13501-1:2018 REACTION TO FIRE CLASSIFICATION
