Aluminium Gutter - Derwent - Gutter
Verified by manufacturer 14 days ago
Alloy 1050 (Powder Coating)
Alloy 1050 (Powder Coating)
ISO 9001 Quality Management
Certificate type
Independent sustainability assessment
Certificate type
EN 13501-1 (Efectis)
Certificate type
R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041
Certificate type

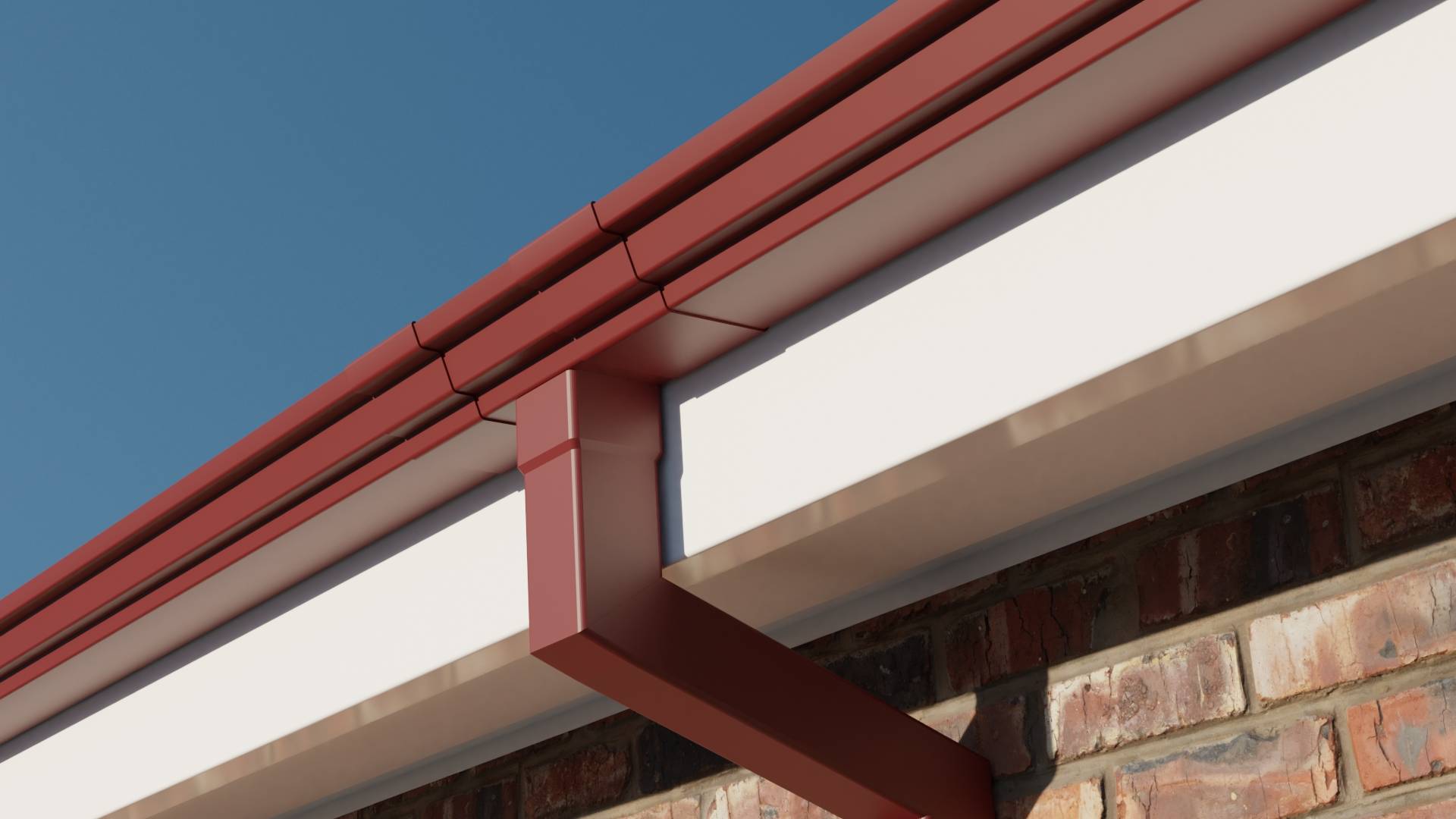

Aluminium contemporary ogee profile gutter, 130 x 75 mm.
Application
- Residential.
- Education.
- Healthcare.
- Commercial.
- Leisure.
- Mixed Use.
- Infrastructure.
- Retail.
Description
Dales River range of aluminium gutters were developed in response to customer demand for a contemporary version of the ogee gutter profile. The systems are direct fixed to the fascia, eliminating the need for support brackets. Dales over-strap joint system with silicon sealant allows for aluminium’s high coefficient of expansion. This ensures leak-free joints whatever the temperature. There are four profiles in the range, of which Derwent is the smallest.
Features and benefits:
- Polyester powder coated to BS 12206-1:2004.
- Available in gloss, matt and satin (subject to availability).
- Also available anodized.
- A wide range of standard components are available.
- Purpose-made components can be manufactured to suit individual projects.
General information
Color | Beige Black Blue Bronze Brown Manufacturer guidanceAvailable in a range of colours, contact manufacturer for details. |
Finish | Powder-coated Guidance for specification option: PPC - Matt PPC - Satin PPC - Gloss Also available in special effect: PPC - Timber grain. PPC - Corten. PPC - Simulated anodized. Metallic Guidance for specification option: PPC - Metallic. Anodized |
Material | Aluminium |
Shape | Other Guidance for specification option: Ogee. |
Length | 3000 mm |
Width | 130 mm |
Height | 75 mm |
Warranty description | 25 year Guidance for specification option: Contact manufacturer for further details. |
Uniclass | |
CAWS | R10/11 Aluminium gutters R10/311 Aluminium gutters |
Product range |
Specification data - Aluminium eaves gutters
Form | Pressed to BS 9101:2017. |
Profile | Ogee. |
Size (nominal width) | 130 mm. |
Thickness or gauge | 2.0 mm. |
Finish | Powder coating to BS EN 12206-1:2004. |
Colour | Standard (PPC).Guidance for specification option: Contact manufacturer and insert requirements. RAL & BS (PPC).Guidance for specification option: Contact manufacturer and insert requirements. Metallic (PPC).Guidance for specification option: Contact manufacturer and insert requirements. Anodite (PPC).Guidance for specification option: Contact manufacturer and insert requirements. Special (PPC).Guidance for specification option: Contact manufacturer and insert requirements. |
Film thickness (minimum) | 60 microns. |
Texture | Gloss. Matt. Guidance for specification option: Subject to availability: www.dales-eaves.co.uk/finishes/ Satin. Guidance for specification option: Subject to availability: www.dales-eaves.co.uk/finishes/ |
Corners | Not required. DE-05-090-E 90° external corner. DE-05-090-I 90° internal corner. DE-05-135-E 135° external corner. DE-05-135-I 135° internal corner. |
Outlets | DE-04-076-D 76.2 mm round outlet. DE-04-076-S 76.2 mm square outlet. ___ mm round outlet. ___ mm square outlet. As drawing ___. |
Stop end | DE-03-000-L left hand stop end. DE-03-000-R right hand stop end. As drawing ___. Contractor's choice. |
Joint strap | DE-02-000-X. |
Length | 3 m. |
Size | 130 x 75 mm. |
Capacity | 1.36 L/s. Guidance for specification option: Gutter. 1.61 L/s. Guidance for specification option: 76.2 mm round outlet. 2.02 L/s. Guidance for specification option: 76.2 mm square outlet. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 2 |
Third party certifications
ISO 9001 Quality Management
ISO 9001:2015 Quality Assurance
Independent sustainability assessment
CLOSED LOOP RECYCLING SCHEME (CAB)
EN 13501-1 (Efectis)
INTERPON-D PPC: EN 13501-1:2018 REACTION TO FIRE CLASSIFICATION
R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041
SYNTHA PULVIN PPC: EN 13501-1:2018 REACTION TO FIRE CLASSIFICATION
