Aluminium Gutter - Torent 1 - Gutter
Verified by manufacturer 4 days ago
Alloy 1050 (Powder Coating)
Alloy 1050 (Powder Coating)
ISO 9001 Quality Management
Certificate type
Independent sustainability assessment
Certificate type
EN 13501-1 (Efectis)
Certificate type
R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041
Certificate type

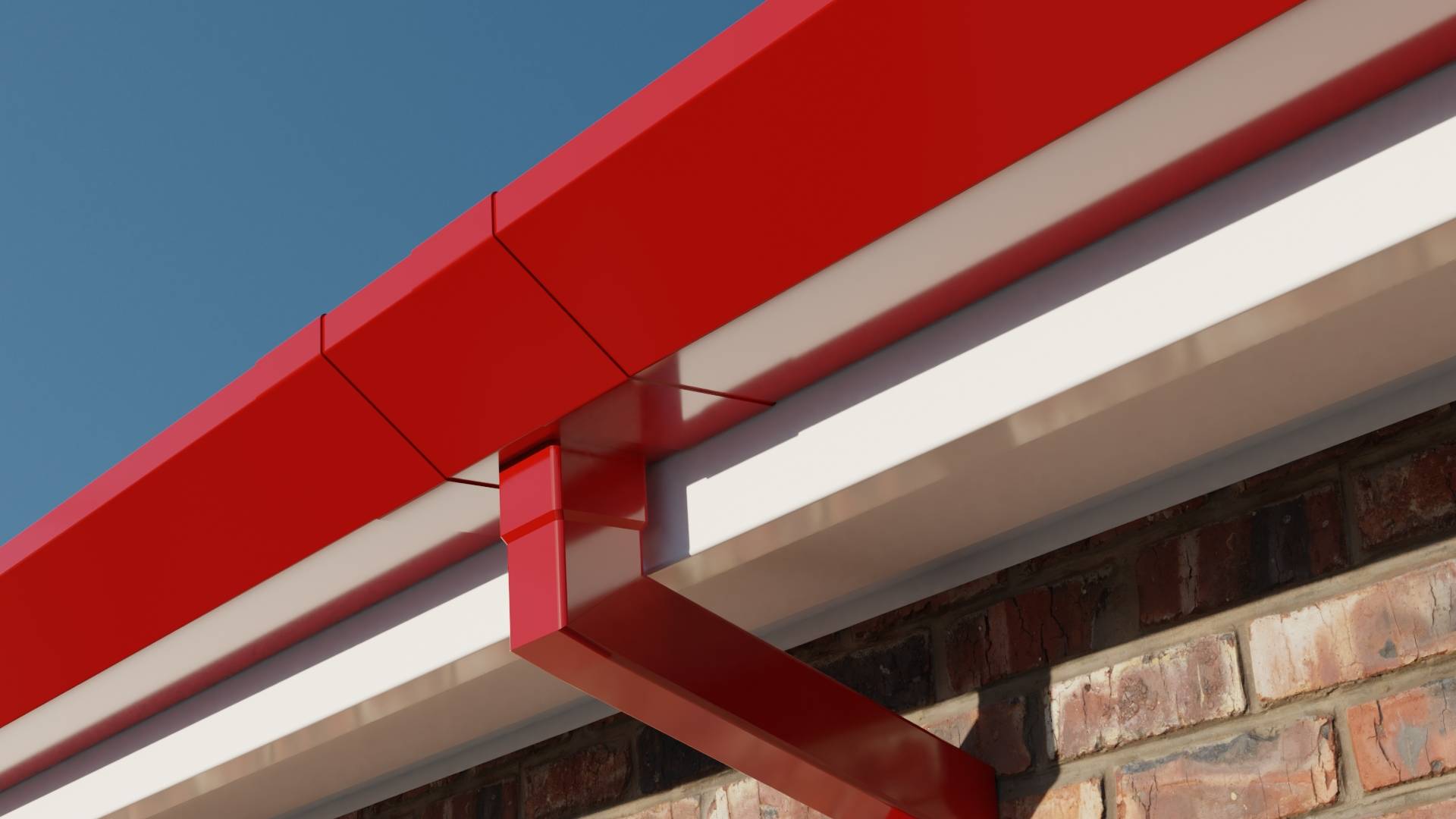

Aluminium angled profile gutter, 200 x 100 mm.
Application
- Residential.
- Education.
- Healthcare.
- Commercial.
- Leisure.
- Mixed Use.
- Infrastructure.
- Retail.
Description
Dales Torent range of aluminium gutters were developed in response to customer demand for an elegant alternative to box or ogee type gutters. Torent systems internal top fix gutter brackets allow an uninterrupted line to the eaves profile. Dales over-strap joint system with silicon sealant allows for aluminium’s high coefficient of expansion. This ensures leak-free joints whatever the temperature.
Features and benefits:
- Polyester powder coated to BS 12206-1:2004.
- Available in gloss, matt and satin (subject to availability).
- Also available anodized.
- A wide range of standard components are available.
- Purpose-made components can be manufactured to suit individual projects.
General information
Color | Beige Black Blue Bronze Brown Manufacturer guidanceAvailable in a range of colours, contact manufacturer for details. |
Finish | Powder-coated Guidance for specification option: PPC - Matt. PPC - Satin. PPC - Gloss. Also available in special effect: PPC - Timber grain. PPC - Corten. PPC - Simulated anodized. Metallic Guidance for specification option: PPC - Metallic. Anodized |
Material | Aluminium |
Shape | Square Rectangle |
Length | 3000 mm |
Width | 200 mm |
Height | 100 mm |
Warranty description | 25 year Guidance for specification option: Contact manufacturer for further details. |
Uniclass | |
CAWS | R10/11 Aluminium gutters R10/311 Aluminium gutters |
Product range |
Specification data - Aluminium eaves gutters
Form | Pressed complies to BS 9101:2017. |
Profile | Box with angled front |
Size (nominal width) | 200 mm. |
Thickness or gauge | 2.0 mm. |
Finish | Powder coating to BS EN 12206-1:2004. |
Colour | Standard (PPC).Guidance for specification option: Contact manufacturer and insert requirements. RAL & BS (PPC).Guidance for specification option: Contact manufacturer and insert requirements. Metallic (PPC).Guidance for specification option: Contact manufacturer and insert requirements. Anodite (PPC).Guidance for specification option: Contact manufacturer and insert requirements. Special (PPC).Guidance for specification option: Contact manufacturer and insert requirements. |
Film thickness (minimum) | 60 microns. |
Corners | Not required. T1-05-090-E 90° external corner. T1-05-135-E 135° external corner T1-05-135-I 135° internal corner. As drawing ___. Manufacturer guidanceFittings. |
Outlets | T1-04-076-D 76.2 mm round outlet. T1-04-076-S 76.2 mm square outlet. T1-04-101-D 101.6 mm round outlet. T1-04-101-S 101.6 mm square outlet. As drawing ___. Manufacturer guidanceFittings. |
Stop end | T1-03-000-L left hand stop end. T1-03-000-R right hand stop end. As drawing ___. Contractor's choice. Manufacturer guidanceFittings. |
Joint straps | T1-02-000-X. Manufacturer guidanceFittings. |
Brackets | T1-06-000-X top fix internal bracket. Manufacturer guidanceFittings. |
Length | 3 m. Manufacturer guidanceGutter length. |
Size | 200 x 100 mm. Manufacturer guidanceProfile. |
Texture | Gloss. Guidance for specification option: Subject to availability: www.dales-eaves.co.uk/finishes/ Matt. Guidance for specification option: Subject to availability: www.dales-eaves.co.uk/finishes/ Satin. Guidance for specification option: Subject to availability: www.dales-eaves.co.uk/finishes/ |
Capacity | 4.93 L/s. Guidance for specification option: Gutter. 2.56 L/s. Guidance for specification option: 76.2 mm round outlet. 3.20 L/s. Guidance for specification option: 76.2 mm square outlet. 4.65 L/s. Guidance for specification option: 101.6 mm round outlet. 5.71 L/s. Guidance for specification option: 101.6 mm square outlet. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 2 |
Third party certifications
ISO 9001 Quality Management
ISO 9001:2015 Quality Assurance
Independent sustainability assessment
CLOSED LOOP RECYCLING SCHEME (CAB)
EN 13501-1 (Efectis)
INTERPON-D PPC: EN 13501-1:2018 REACTION TO FIRE CLASSIFICATION
R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041
SYNTHA PULVIN PPC: EN 13501-1:2018 REACTION TO FIRE CLASSIFICATION
Literature
Torent Gutter Range
Syntha Pulvin Fire Certificate
