Aluminium Handrail - Slot Tube Handrail

Verified by manufacturer 3 months ago

Silver

Pure Vista Ltd Variant:

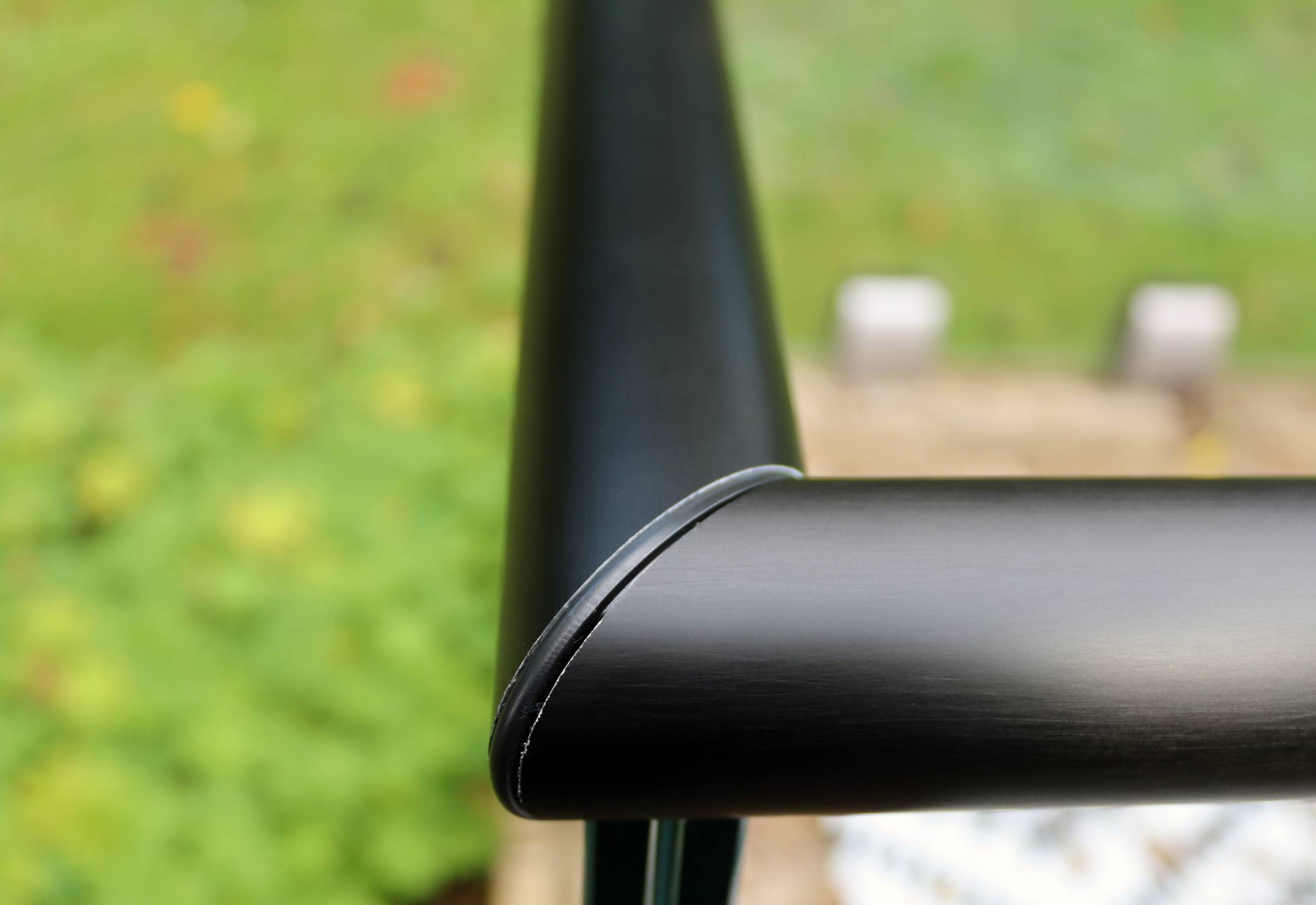

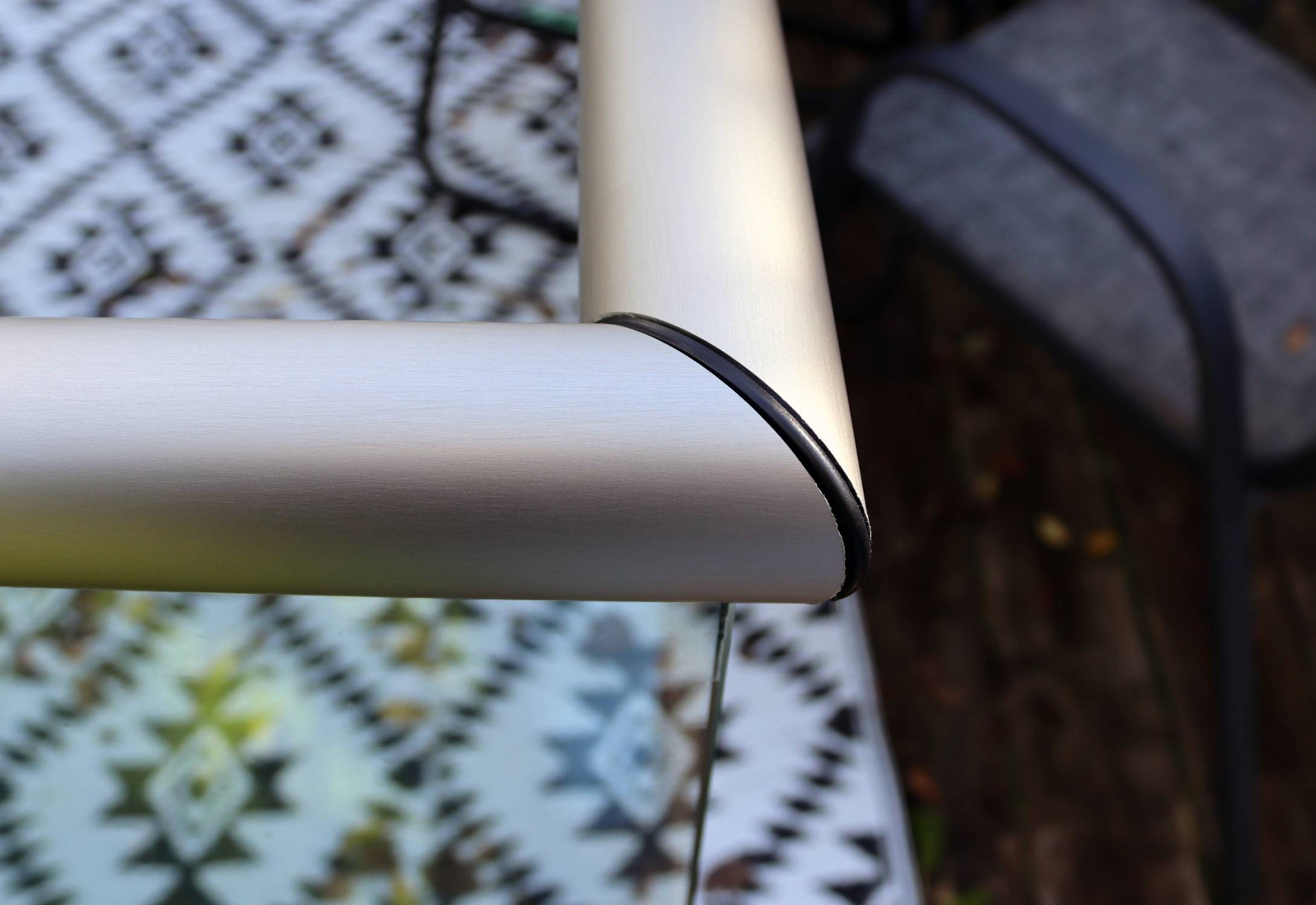

Aluminium Slot Tube Handrail available in silver and black brushed to match the colours of the Pure Vista balustrade channels.

Jump to:
BOS
+44 (0)1208 261040 Website

Application

Slot tube handrail to be used on glass balustrade.

Description

Aluminium Slot Tube Handrail available in silver and black brushed to match the colours of the Pure Vista balustrade channels.

Please note that the stainless steel handrail accessories and joiners will not fit this channel.


Product compatibility

This handrail can be used with any of Pure Vista’s balustrade systems, please see the product variations for glass thickness compatibility.

Glass compatibility

Compatible with glass thicknesses between 12 mm and 21.5 mm.

Please select the glass thickness that you will be using with the handrail so a compatible handrail can be supplied.

Product variations

This handrail is available in 3-metre and 6-metre lengths.


Features and benefits:

  • Tested to 1.5 kN with BS EN 6180:2011.
  • More cost-effective than stainless steel.
  • Anodised to 25 microns.
  • 6 m and 3 m available.
  • Durable black plastic accessories.

General information

Color

Black

Silver

Finish

Brushed

Material

Aluminium

Shape

Circle

Length

3000 mm

6000 mm

Width

42.4 mm

Manufacturer guidance

Diameter.

Uniclass

Pr_25_30_36_03 Aluminium handrailsPrimary

CAWS

L30/70 Proprietary handrails

L30/580 Proprietary handrails

Specification data - Aluminium handrails

Diameter

42.4 mm.

Cross section

Circular.

Finish

-

Requirement

Anodized.

Colour

Silver.

Film thickness (minimum)

25 micrometres.

Accessories

-

Materials generally

Black plastic.

Adapters and panel clips

Not required.

Straight Connector.

End caps

Not required.

End caps required.

Angles and tees

Not required.

Corner Connector 90 degrees.

Adjustable Corner Connector.

Glass thickness

12 mm.

13.5 mm.

15 mm.

17.5 mm.

19 mm.

Show more

Load

To BS 6180:2011, 1.5 kN (point load), 0.74 kN (horizontal line load).

Length

3000 mm.

6000 mm.

Sustainability data

Contains Red List materials

No

Recyclability

Aluminium can be 100% recycled

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

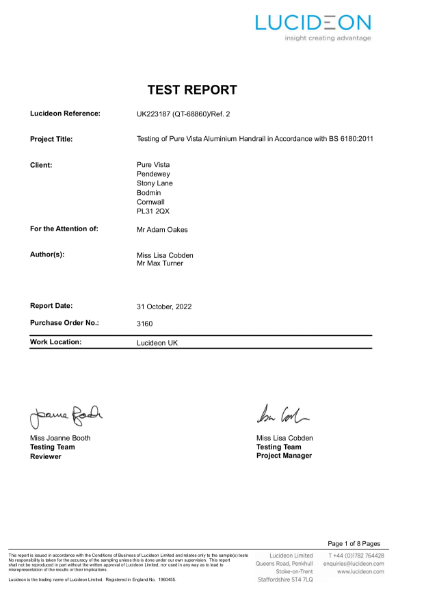

Test Report

Test Report
