Kalzip® FC rainscreen is a non-penetrative façade system that incorporates a fast-to-install lightweight flat rainscreen panel, suitable for both new build and refurbishment projects
Application
Kalzip FC Facade Rainscreen is suitable for new build and refurbishment projects; can be used with all existing support structures and wall constructions.
Sophisticated and leading installation systems
- Time-saving installation by latching the system components in - this is especially cost effective
- Freely selectable installation direction from top to bottom or from bottom to top as well as - surface related - independent of adjacent panels. The benefit: The installation is in sync with the construction progress, connections and fit components can be installed retroactively - for example, it is possible to delay entire facade fields in the traffic area until the outside systems have been completed.
- Easy latching in of the accessories for fixed point, bend part bracket, etc., in the raster click rail Logistikzentrum SBF Poing, München Architects: io-consultants GmbH & Co. KG
- Suitable for the installation on all substructures - therefore always the most economic and constructions-physical best solution
Exchanging instead of complete dismantling
- Easy and fast exchange of damaged panels using the FC tool kit
- Removal of entire facade surfaces with low time and cost expenditures
- Guarantee of the optical appearance of the facade at any time
High design flexibility for expressive character
- Level geometric impression with delicate groove raster
- Multi-directional installation offers variable design options for architects and planers
- Optimized production tolerances based on advanced roll-forming technology.
- Maximum design flexibility due to a variety of construction widths
- Emphasizing the metallic building enclosure through expressive colors and surfaces
- As a standard, all panels with head bending at no extra costs
For a sustainable and economic planning
- Reduced material use through optimized panel geometry.
- If required, cost-saving exchange of individual panels - a benefit for the building insurance
Description

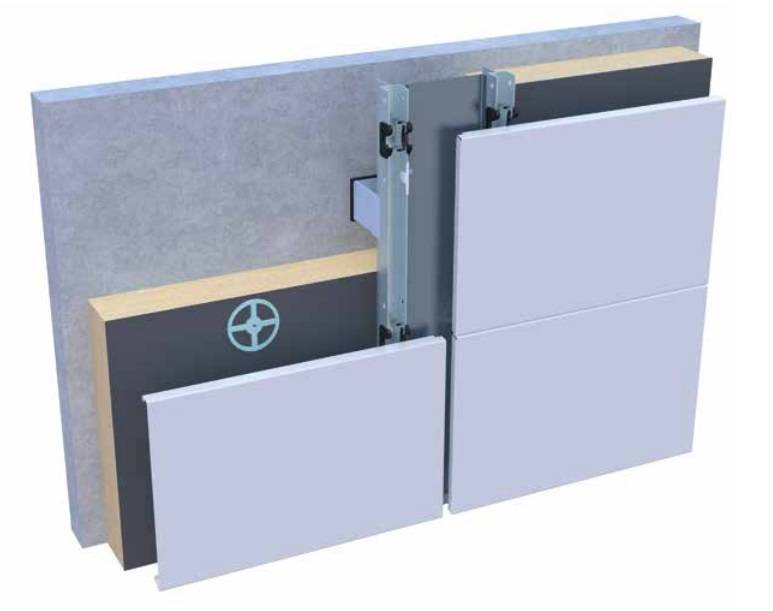

Non-penetrative facade rainscreen system, which incorporates a fast-to-install, lightweight flat rainscreen panel, suitable for both new build and refurbishment projects.
The system is highly flexible, allowing the installation of the profiles to be carried out in two directions, either from the top down or from the bottom up. This allows for easier and faster installation compared to conventional panel systems, but also allows scaffolding or subsequent construction work to be coordinated independently from the installation process.
Features and benefits
- Contemporary, visually appealing aesthetics.
- Various standard profile widths are available, providing flexibility and scope for design.
- Highly cost-effective through simple and fast installation.
- Panels can be installed horizontally and vertically.
- Supported by the proprietary modular click rail or mono-click bracket without the need for screws or rivets.
- Optimized panel geometry means low inherent weight and reduced use of materials.
- A wide range of colour and surface finishes with edge folding are available.
- Internal and external corner panels can be integrated if required.
- High structural performance.
- Creation of fixed point with a specially designed fixed point clamp, which allows panel adjustment after installation.
- In case of damage, the Kalzip® FC rainscreen allows the replacement of individual panels without having to dismantle the entire facade. A panel can be removed quickly and simply using the specially developed tools from the Kalzip® FC tool kit - consult manufacturer for details.
- The Kalzip FC rainscreen façade system has been tested at the BRE in accordance with the BS 8414 Part 1 test standard and satisfies the requirements of BR 135.
General information
Color | Other Manufacturer guidanceKalzip roof and cladding systems are available in a host of finishes and materials. In addition to aluminium, the system is offered in special finishes like AluPlusPatina as well as coated finishes such as PVDF or HPC. |
Finish | PVdF Guidance for specification option: Aluminum PVDF Coated. Coated Guidance for specification option: Aluminum High Performance Coating (HPC). Other Guidance for specification option: Aluminum AluPlusPatina. Metallic Bronze Manufacturer guidanceA wide range of surface finishes are available. See product literature. |
Material | Aluminium |
Shape | Rectangle Square Other |
Length | Bespoke Manufacturer guidanceTo suit project parameters maximum 6000mm |
Width | 250 mm 300 mm 350 mm 400 mm 450 mm Manufacturer guidanceAs per product literature 250mm up to 800mm |
Height | Bespoke Manufacturer guidanceVarious options available refer to published literature |
Warranty description | Other Manufacturer guidanceWarranty periods subject to review depending on finish and project location. Please contact Kalzip for more information. |
Uniclass | |
CAWS | H92/120 Rainscreen cladding |
Product range |
Specification data - Drained and back-ventilated rainscreen cladding systems
Breather membrane | |
Material | Contractor's choice (project specific). |
Fasteners | Manufacturer guidanceTo suit project requirements. |
Secondary support structure | Supported by the proprietary modular click rail or mono-click bracket. |
Cavity fire barriers | |
Horizontal | To be determined by project fire engineer.Manufacturer guidanceTo suit project requirements. |
Vertical | To be determined by project fire engineer.Manufacturer guidanceTo suit project requirements. |
Cladding panels | |
Material | Manufacturer's standard.Guidance for specification option: EN AW-3004, EN-AW-3005 or EN AW-6025 subject to finish selected. Consult manufacturer for details. Manufacturer guidanceTo suit project requirements. |
Panel joints | Open joints, guidance snapper to be used to ensure joint consistency. |
Reveals | A/CAD details available. |
System accessories | FC Facade Rainscreen accessories to suit project requirements: |
Type | FC Rainscreen 30/250. FC Rainscreen 30/300. FC Rainscreen 30/350. FC Rainscreen 30/400. FC Rainscreen 30/450. |
Thickness | 1.0 mm (nominal). 1.2 mm (nominal). 1.5 mm (nominal). 1.6 mm (nominal). |
Finish | Aluminium AluPlusPatina. Aluminium, with a polyester paint coating. Aluminium, with a PVDF paint coating. Aluminium, with an HPC paint coating. |
Panel options | Not required. Edge returns - removal. Guidance for specification option: Supplied as standard with edge returns on both sides. Can also be manufactured without edge return on enquiry. Micro-ribbed. Guidance for specification option: Available for FC Rainscreen 30/400 profile only. Perforated. Guidance for specification option: Consult manufacturer for perforation options and insert requirements. |
FC rail type | FC SE Rail. Guidance for specification option: Self-supporting rail that can be used as load-bearing profile and can be fastened to a sub-construction independent of the joint position. FC SEL Rail. Guidance for specification option: A load-bearing rail and can be fastened directly to L wall holders thanks to the 50 mm long web. A further support profile is not necessary. |
Corner panels | Internal and External Corner panels to suit project requirements. Guidance for specification option: Different angles are available; consult manufacturer for details. |
Dimensions | Manufacturer guidanceFlexible to suit project requirements. |
Installation | Installation of the Kalzip FC façade is carried out using proprietary system support rails fixed to an adjustable subconstruction suitable for rainscreens. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Aluminium |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 9.61 kg CO₂ eq/kg Manufacturer guidanceRefer to EPD certificate. |
Recyclability | Excellent |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % Guidance for specification option: Recycled aluminium weather sheet. |
