Aluminium Rainwater Pipe - Square Contemporary - Downpipe
Verified by manufacturer 25 days ago
Alloy 6063 (PPC or Mill Finish)
Alloy 6063 (PPC or Mill Finish)
ISO 9001 Quality Management
Certificate type
Independent sustainability assessment
Certificate type
EN 13501-1 (Efectis)
Certificate type
R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041
Certificate type

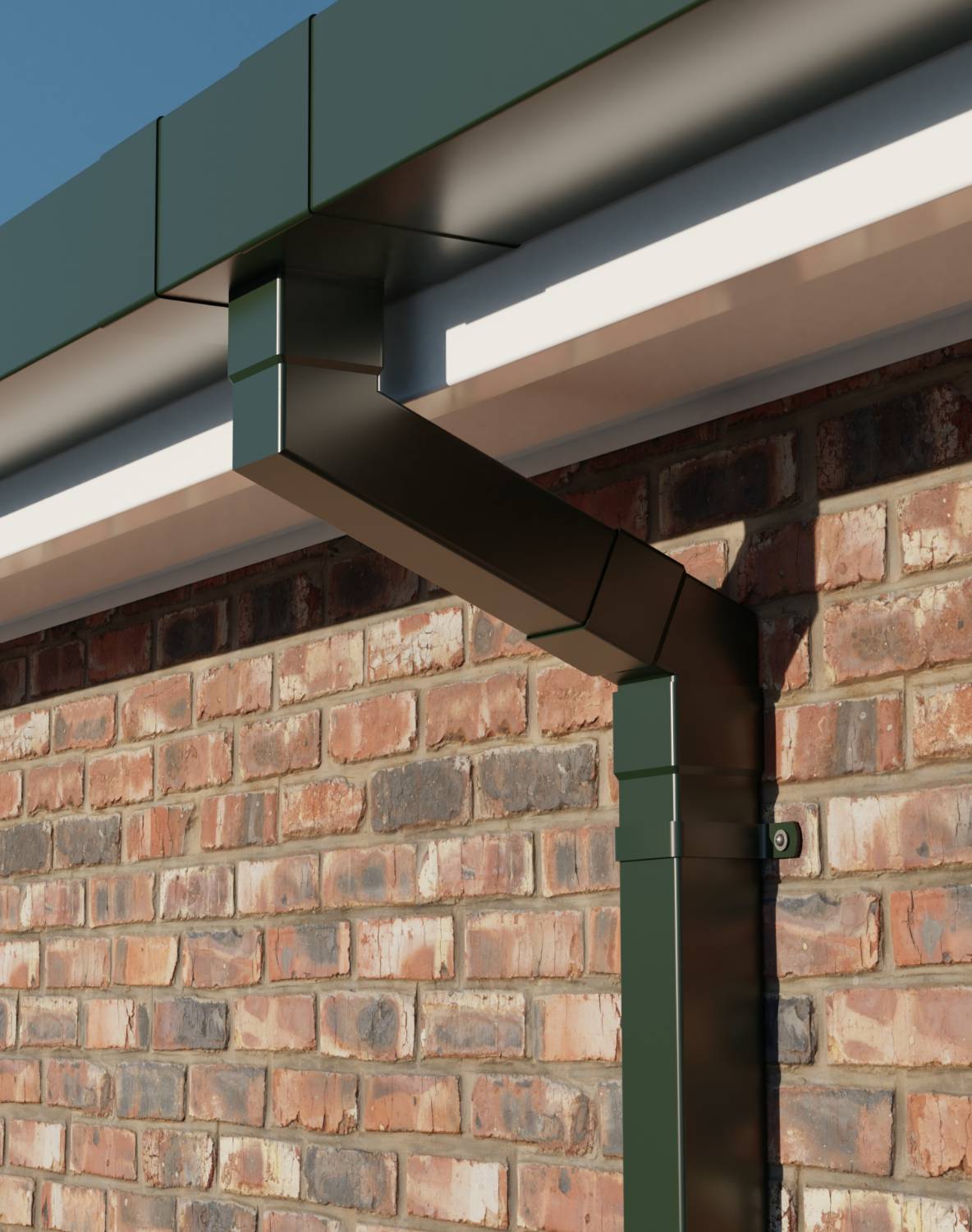

Aluminium Square rainwater pipes.
Application
Suitable where there is need for a square aluminium rainwater pipe.
Description
Dales square aluminium rainwater pipes are available in three standard sizes. Other square pipework can be supplied to order.
Dales standard pipe brackets are designed to fix the pipe very close to the wall and firmly clamp the pipe into position.
Dales standard rainwater pipe systems are of a dry-jointed nature.
Features and benefits:
- The brackets and fixings makes it very difficult for vandals to climb.
- Various non-standard components, e.g. offsets, stand off brackets and special hoppers, are available to suit individual requirements.
- A wide range of standard components are available.
- Dales Fabrications Ltd are able to offer purpose made components to suit individual project requirements.
Secret Fix Pipework:
Dales square pipe is available with secret fixing and internal pipe jointing. This pipework offers improved security and very clean lines, Contact the manufacturer for details.
General information
Color | Beige Black Blue Bronze Brown Manufacturer guidanceRefer to manufacturers website for available colour choices. |
Finish | Powder-coated Anodized Mill Manufacturer guidanceAvailable in Special Effect, consult manufacturer literature: PPC - Timber Grain PPC - Corten PPC - Simulated Anodised |
Material | Aluminium |
Shape | Square |
Length | 1000 mm 1500 mm 2000 mm 3000 mm |
Width | 76.2 mm 101.6 mm 152.4 mm |
Height | 76.2 mm 101.6 mm 152.4 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | R10/30 Aluminium pipework R10/370 Aluminium pipework |
Product range |
Specification data - Aluminium rainwater pipes and fittings
Form | Extruded. |
Section | Square. |
Size (nominal) | 101.6 x 101.6 mm.76.2 x 76.2 mm.152.4 x 152.4mm |
Minimum thickness or gauge | 1.6 mm W.T.Guidance for specification option: 76.2 x 76.2 mm 2 mm W.T.Guidance for specification option: 101.6 x 101.6 mm 3 mm W.T.Guidance for specification option: 152.4 x 152.4 mm |
Finish and colour | |
Finish | Powder coated.Mill. |
Colour | Standard (PPC).Guidance for specification option: Contact manufacturer and insert requirements. RAL & BS (PPC).Guidance for specification option: Contact manufacturer and insert requirements. Metallic (PPC).Guidance for specification option: Contact manufacturer and insert requirements. Anodite (PPC).Guidance for specification option: Contact manufacturer and insert requirements. Special (PPC).Guidance for specification option: Contact manufacturer and insert requirements. |
Film thickness (minimum) | 60 microns. |
Texture | Gloss. Guidance for specification option: Subject to availability: https://www.dales-eaves.co.uk/finishes/ Matt. Guidance for specification option: Subject to availability: https://www.dales-eaves.co.uk/finishes/ Satin. Guidance for specification option: Subject to availability: https://www.dales-eaves.co.uk/finishes/ |
Elbows | Not required. 92.5° elbow. 112.5° elbow. 135° elbow. As drawing ___. Manufacturer guidanceFittings. |
Access pipe | Not required. Rodding pipe. As drawing ___. Contractor's choice. Manufacturer guidanceFittings. |
Pipe connector | Not required. Connector. As drawing ___. Contractor's choice. Manufacturer guidanceFittings. |
Hopper | Not required. As drawing ___. Contractor's choice. Manufacturer guidanceFittings. |
Offsets (adjustable) | Not required. Maximum 400 mm offset. Maximum 600 mm offset. Maximum 800 mm offset. Maximum 1000 mm offset. Manufacturer guidanceFittings. |
Adaptors | Not required. Square to round adaptor. As drawing ___. Contractor's choice. Manufacturer guidanceFittings. |
Brackets | Bracket. Stand off bracket. As drawing ___. Contractor's choice. Manufacturer guidanceFittings. |
Length | 1 m. 1.5 m. 2 m. 3 m. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Material | Aluminium |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 78 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 2 |
Third party certifications
ISO 9001 Quality Management
ISO 9001:2015 Quality Assurance
Independent sustainability assessment
CLOSED LOOP RECYCLING SCHEME (CAB)
EN 13501-1 (Efectis)
INTERPON-D PPC: EN 13501-1:2018 REACTION TO FIRE CLASSIFICATION
R EACTION TO FIRE - CLASSIFICATION REPORT EUI-22-000041
SYNTHA PULVIN PPC: EN 13501-1:2018 REACTION TO FIRE CLASSIFICATION
Literature
Syntha Pulvin Fire Certificate
Rainwater Pipe: Contemporary Square
Case studies
Bingham Methodist Church
Dove Gutter at Village Hotel, Maidstone

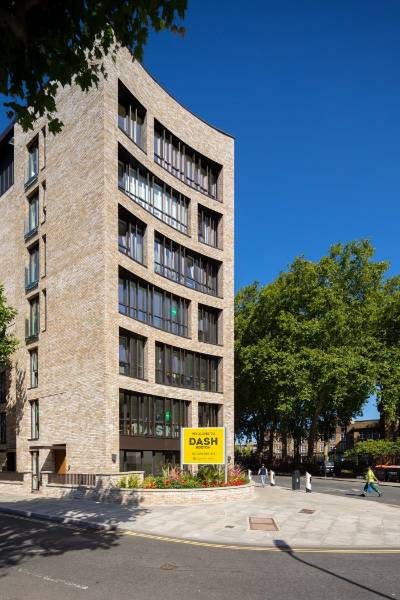

Vertical Solar Shading at Dash, Hoxton
Aluminium Dove Gutter system at Elms Field, Wokingham

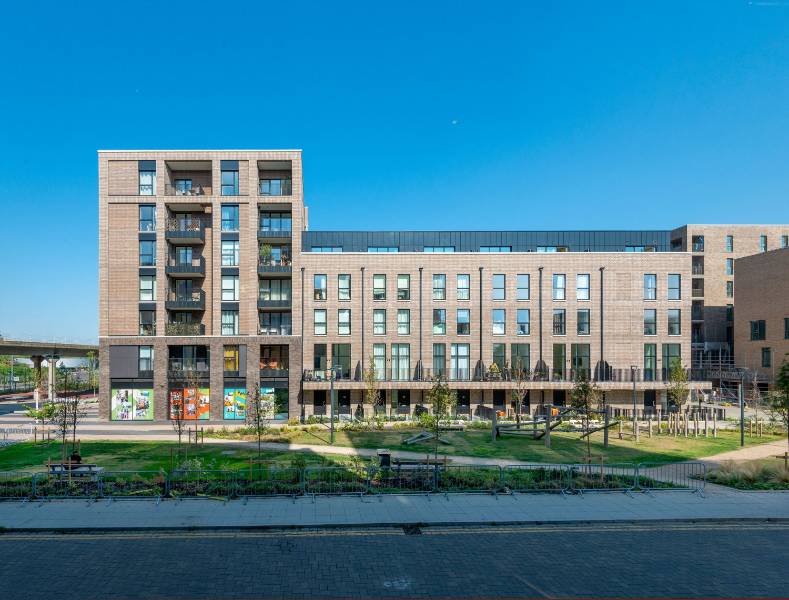

Aluminium Square Contemporary RWP at Gallions Place
