Aluminium Stair Nosings for Ceramics
Verified by manufacturer 3 days ago

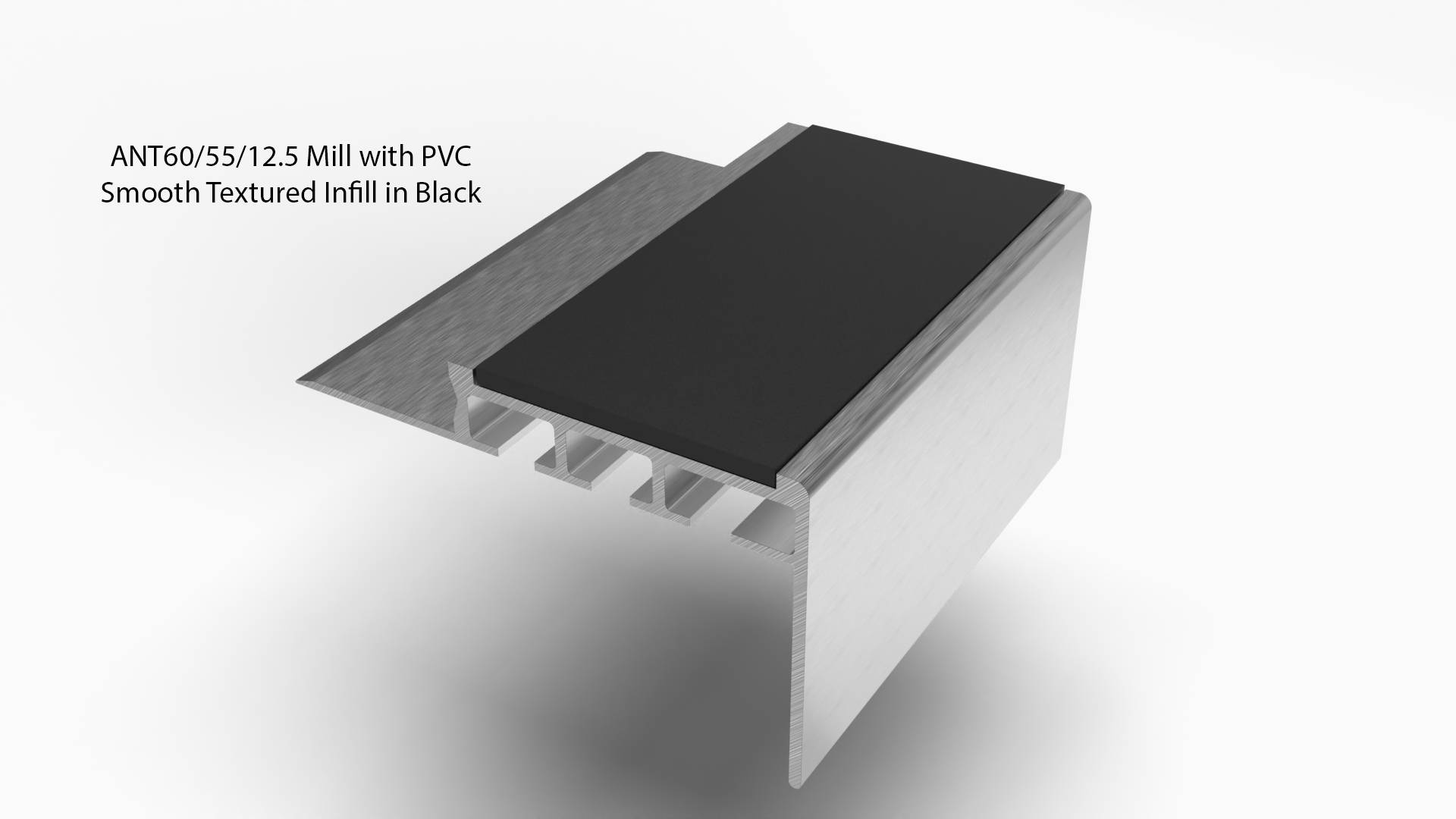

ANT60/55/12.5
A range of aluminium stair nosings with concealed fixings, suitable for use with ceramic flooring.
Application
- Solid aluminium stair nosings designed for use with thicker floor coverings, ceramics, stone and timber.
- ANT60/55/12.5: Drilled through the tail plate for hidden fixing.
Description
A range of aluminium stair nosings with concealed fixings, suitable for use with ceramic flooring.
Features and benefits:
- A wide variety of coloured polyvinyl chloride (PVC) infill options, to offer suitable light reflectance values (LRV) contrasts to the floor covering installed.
- PVC infills are castellated for greater slip resistance value (SRV).
- Solid aluminium inserts are available for a full aluminium concealed fixing installation.
- A wide range of other stair nosings are available, specified separately.
- Interior use (exterior use with selected infills).
General information
Color | Silver Black Grey White Blue |
Finish | Mill Satin Polished Guidance for specification option: AN552 only. |
Material | Aluminium Guidance for specification option:
PVC Guidance for specification option: Insert. |
Length | 2750 mm 3200 mm |
Uniclass | |
CAWS | L30/30 Proprietary stairs L30/310 Proprietary stairs L30/590 Applied stair nosings M51/550 Stair nosings and trims |
Product range |
Specification data - Rigid stair nosings
Profile | Single channel/ square front. |
Base section | |
Material | Aluminium alloy 6063 T6. |
Finish | Mill.Satin.Black anodized.Polished. |
Size | |
Rise x going | 55 x 60 mm.Manufacturer guidanceTail plate 12.5 mm. |
Gauge | 5.5 mm. |
Inserts | |
Material | Aluminium.Guidance for specification option:
PVC.Guidance for specification option:
|
Colour | Black LRV:4.25.Guidance for specification option: Castellated PVC only. White LRV:84.22.Guidance for specification option: Castellated PVC only. Light Grey LRV:12.33.Guidance for specification option: Castellated PVC only. Flint LRV:11.27.Guidance for specification option: Castellated PVC only. Granite LRV:7.02.Guidance for specification option: Castellated PVC only. Rustic LRV:5.52.Guidance for specification option: Castellated PVC only. Fawn LRV:11.27.Guidance for specification option: Castellated PVC only. Ivory LRV:37.42.Guidance for specification option: Castellated PVC only. Spruce LRV:6.38.Guidance for specification option: Castellated PVC only. Jade LRV:7.33.Guidance for specification option: Castellated PVC only. Regency LRV:5.16.Guidance for specification option: Castellated PVC only. Mid Blue LRV:6.53.Guidance for specification option: Castellated PVC only. Nimbus LRV:4.77.Guidance for specification option: Castellated PVC only. Peat LRV:5.88.Guidance for specification option: Castellated PVC only. Yellow LRV:54.91.Guidance for specification option: Castellated PVC only. Poppy LRV:10.01.Guidance for specification option: Castellated PVC only. Claret LRV:5.83.Guidance for specification option: Castellated PVC only. Porth Stone LRV:52.91.Guidance for specification option: Castellated PVC only. Polar Grey LRV:42.53.Guidance for specification option: Castellated PVC only. Polished Aluminium Avg LRV: 75.55.Guidance for specification option: Aluminium ATI Insert only. Satin Aluminium Avg. LRV 65.40.Guidance for specification option: Aluminium ATI Insert only. Mill Aluminium Avg. LRV 71.65.Guidance for specification option: Aluminium ATI Insert only. Black Anodized Avg. LRV 4.80.Guidance for specification option: Aluminium ATI Insert only. Black LRV 4.47.Guidance for specification option: Smooth PVC only. Light Grey LRV 12.74.Guidance for specification option: Smooth PVC only. Polar Grey LRV 42.73.Guidance for specification option: Smooth PVC only. Porth Stone LRV 53.11.Guidance for specification option: Smooth PVC only. Olympic Black LRV: 4.85.Guidance for specification option: Olympic Grip Carborundum only. |
Installation | To be supplied pre-drilled and countersunk in the channel for concealed fixing and on-site retro fitting of the infill. To be supplied undrilled for adhesive fixing using F. Ball & Co. Ltd Stycco Flex Rapid Curing Flexible Adhesive. |
Length | 2750 mm. |
Sustainability data
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Material | Aluminium Guidance for specification option:
PVC Guidance for specification option: Insert. |
Recyclability | 100% recyclable at suitable disposal centres |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Literature

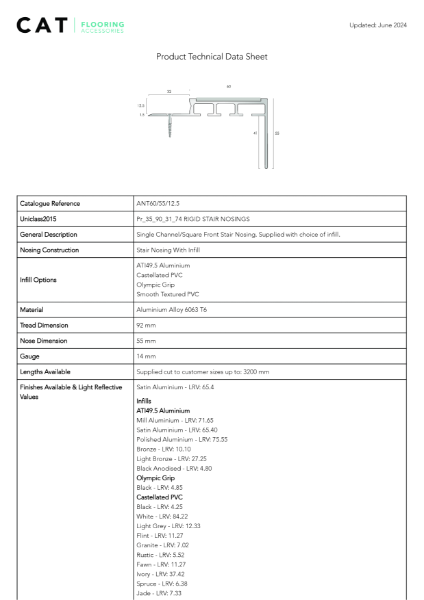

ANT60-55-12 MILL TDS
ANT60-55-12 SATIN TDS
