Aluminum Venetian Blinds - Venetian Blinds
Verified by manufacturer 4 days ago
Classic
Classic
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type
QA Certificate
Certificate type

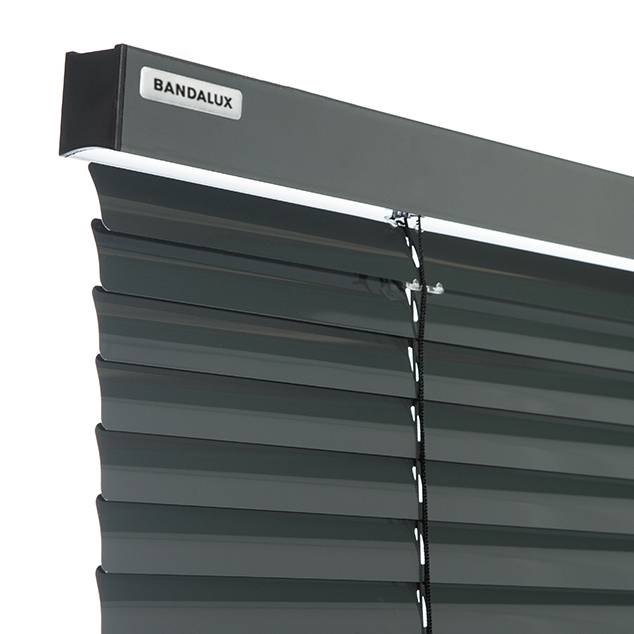

Aluminium venetian blind for optimum privacy and sunlight management.
Application
Suitable for indoor installation, particularly in conference rooms and medical clinics.
Description
Aluminum Venetian blinds allow privacy to be maintained without giving up visibility. For example, in conference rooms and medical clinics. The adjustable slats make it possible to optimize sunlight management. In addition to protecting the room from the direct impact of the sun on large outdoor windows, these systems can be installed between the glasses in large halls to separate the different settings.
Features and benefits:
- Manufactured from 100% high-quality aluminium.
- The horizontal slats are available in three sizes: 15 mm, 25 mm and 50 mm.
- Can be adapted to irregular spaces.
- Wide array of colour, finishing and options.
- 180º turning radius gives and ideal adjustment of sunlight.
- Interlacing system holds the stat avoiding possible hooks with the string ladder when it is activated.
- Similar product: wood Venetian blinds.
- Child safety.
- Three year warranty.
General information
Color | White Black Grey Ivory Brown |
Finish | Lacquered Guidance for specification option: Qualicoat lacquered finish. |
Material | Aluminium |
Shape | Square Rectangle |
Width | Bespoke 210 mm Guidance for specification option: Minimum width - Signum. 340 mm Guidance for specification option: Minimum width - Omega. 300 mm Guidance for specification option: Minimum width - Classic. 3000 mm Guidance for specification option: Maximum width. |
Height | Bespoke 150 mm Guidance for specification option: Minimum height - Signum and Omega. 300 mm Guidance for specification option: Minimum height - Classic. 3500 mm Guidance for specification option: Maximum height - Signum and Omega. 3600 mm Guidance for specification option: Maximum height - Classic. |
Warranty description | Three year |
Uniclass | |
CAWS | N10/70 Blinds N10/240 Blinds |
Specification data - Venetian blinds
Standards | To BS EN 13120. |
Position | Ceiling.Wall. |
Dimensions (minimum width x depth) | 300 x 300 mm.Guidance for specification option:
Manufacturer guidanceWidth x height. |
Slats | |
Width (maximum) | 50 mm. |
Material | Aluminium. |
Finish | Qualicoat lacquered. |
Colour | Manufacturer guidanceNearly 100 different colours in different finishes e.g. matte, gloss, opalescent, etc. Consult manufacturer and insert requirements. |
Headrail | |
Material | Aluminium. |
Colour | Coordinated with the slats. |
Operation | Manual, cord.Manual, chain.Manual, crank.Motor.Manufacturer guidanceConsult manufacturer's literature for details and insert requirements. |
Mechanism endurance | To BS EN 13120, class 3. |
Accessories | Child safety.Safekids.Double drop.Personalization.Trims.Colour combination.Guidance for specification option: CHANGE will be considered each time a different colour to the previous is inserted. It will not depend on the total number of colours used. Not required.Manufacturer guidanceConsult manufacturer. |
Profile | String ladder. Tape. Guidance for specification option: Wide array of tapes available that match or contrast with the aluminium slats - consult manufacturer's literature and insert requirements. |
Guides | Vertical cable guide. Guidance for specification option:
|
Brackets | Reinforced extensible trazer brackets. Guidance for specification option:
Brackets with extension, reinforced (140–230 mm). Guidance for specification option:
|
Stacking | Manufacturer guidanceStacking height. Consult manufacturer's literature. |
Profile colour | White. Black. Grey. Ivory. Brown. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Spain |
Material | Aluminium |
Recyclability | Yes, Aluminum and Stainless Steel Guidance for specification option: Aluminum and Stainless Steel is 100% recyclable, an un-limited number of times, without losing or diminishing its chemical or mechanical characteristics. For this reason, the life cycle of an aluminum or stainless steel product tend to be circular, this concept being called “cradle-to-cradle”, currently used to reach an efficient economy in the use of resources, that takes advantage of all materials at the end of their useful life as raw materials. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 95 % Guidance for specification option: Bandalux’s extruded aluminum profiles and tubes have 95% recycled content. Bandalux’s laminated aluminum has between 45% and 65% recycled content. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
Literature
Aluminum Venetian Blinds
Aluminium Venetian Blinds - Finishes
Case studies
Premium Plus roller blinds and Aluminum Venetian Blinds in Marset HQ
Aluminum Venetian Blinds in Thales HQ
Aluminum Venetian Blinds in Decorato Dental Centre
