Aluprof MB-104 - Door System (PassivHaus Certified)

Name: Aluprof MB-104 - Door System (PassivHaus Certified)
Brand: Aluprof UK
SKU: dbHWdiYf7oVfzttgcDusNb

Verified by manufacturer 6 months ago

Aluprof MB-104 SI - Passiv Haus Certified - high insulation framed system

Aluprof UK

Third party certifications:

Cradle to Cradle Certified
Certificate type
EPD
Certificate type
ISO 14001 Environmental Management Systems
Certificate type
ISO 9001 Quality Management
Certificate type
Passivhaus
Certificate type
Qualicoat approval
Certificate type

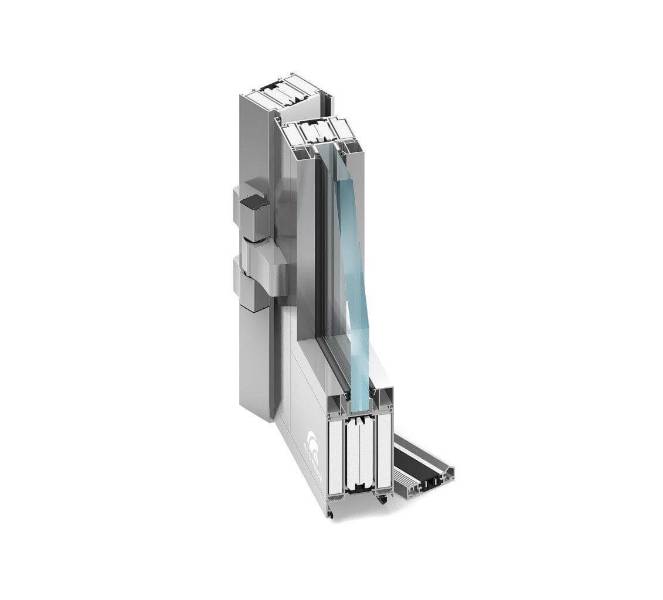

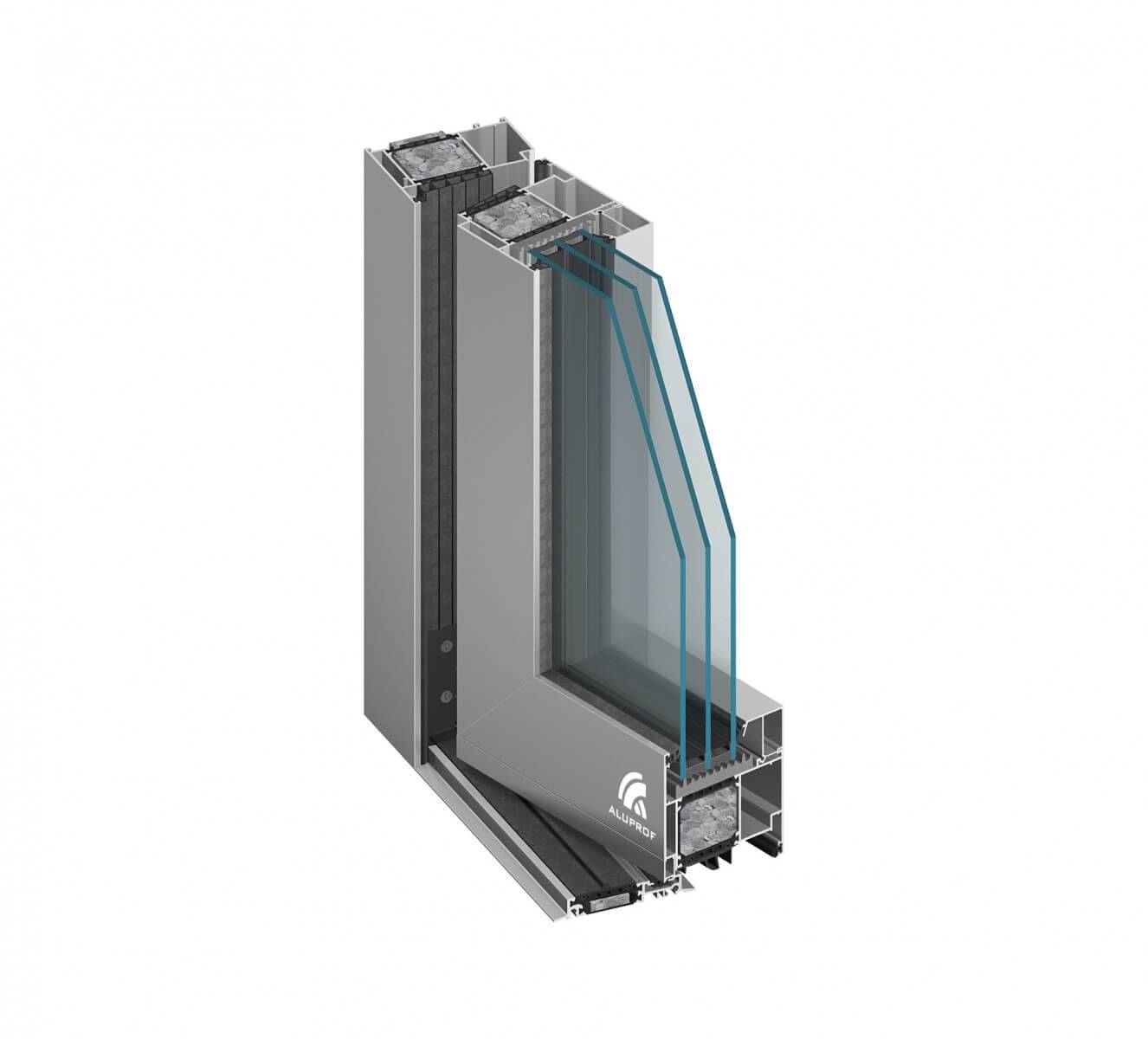

Passive House thermally broken aluminium door system.

Jump to:

+44 (0)161 9414005 Website

Application

New build; refurbishment; low-rise and high-rise buildings; commercial; public sector; industrial; residential; retail; leisure; hospitality; education; Redevelopment.

Description

Thanks to its excellent thermal performances, the thermally broken door system MB-104 Passive meets all the requirements for the components used in passive buildings, confirmed by certificates granted by the Passive House Institute PHI Darmstadt.

This system is intended for fabrication of external structure elements such as various types of windows, doors, shop fronts and spatial structures, which are highly resistant and characterized by excellent water and air tightness, and thermal and acoustic insulation performance.

Features and benefits:

Doors certified by the Passive House Institute PHI Darmstadt.
Excellent weather tightness and thermal insulation performance.
Wide range of glazing, up to 81 mm allowing for triple and fourfold glazing units.
'Euro' grooves allow the fitting of most of the available hardware, both for aluminium and PVC windows.
Can use surface, barrel or concealed hinges.
Expansion joint profiles for the door leaf.
95 mm-wide threshold - the threshold and the frame have the same width.
Anti-burglary doors up to RC3 class.
MB-104 Passive SI windows also available, specified separately.
MB-104 Passive Aero range also available, specified separately.

General information

Color	Other
Finish	Anodized Guidance for specification option: By Aluprof to Qualanod standard, 25 µm film thickness. Powder-coated Guidance for specification option: Polyester powder coated to Qualicoat or Qualideco standards (including 'seaside' standard).
Material	Aluminium
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	Ten year Guidance for specification option: Anodized finish. 25 year Guidance for specification option: Up to 25 years for polyester powder coating finish. Consult manufacturer for details of marine and industrial environments.

Uniclass	Pr_30_59_24_02 Aluminium doorsetsPrimary
CAWS	H11/135 Doors L20/480 Doorsets L20/55 Doorsets

Specification data - Aluminium doorsets

Standard	Non-fire and/ or smoke rated doorsets to EN 14351-1.
Third party accreditation	PASSIV HAUS Institute, CE marked, Q-Mark, Qualicoat/ Qualanod/ Qualideco, ITB - EPD Certification.
Configuration	Single, open in. Single, open out. Double, open in. Double, open out.
Doorset size	- Manufacturer guidance Add dimensions and/ or drawing references as required. Maximum (h x w): 3000 x 1400 mm. Maximum weight: 200 kg.
Performance	-
Strength and durability	Up to Class 4 to EN 1192.
Thermal	From 0.59 W/m²K.
Intruder resistance	-
Minimum requirement	Standard. RC2. RC3.
Application	Manufacturer's standard.
Frame	-
Material	Aluminium. Guidance for specification option: Specify frame profile below.
Threshold	009204 low thermal PASSIV HAUS threshold. K519180 low threshold. K518181 low threshold.
Perimeter seals or inserts	Manufacturer's standard.
Finish	-
Coating	Anodized by Aluprof to Qualanod standard, 25 µm film thickness. Polyester powder coated by Aluprof to Qualicoat standard, 60 µm film thickness. Polyester powder coated by Aluprof to Qualicoat 'seaside' standard, 60 µm film thickness. Polyester powder coated by Aluprof to Qualideco standard, 60 µm film thickness]. Polyester powder coated by Aluprof to Qualideco 'seaside' standard, 60 µm film thickness. Bespoke. Guidance for specification option: Insert details of external and internal and coatings choices from the list above. Colours specified separately below.
Texture	Dependent on coating specified.
Colour	RAL, Matt. Guidance for specification option: Polyester powder coated coatings only; insert colour requirements. RAL, Satin Gloss. Guidance for specification option: Polyester powder coated coatings only; insert colour requirements. RAL, High Gloss. Guidance for specification option: Polyester powder coated coatings only; insert colour requirements. RAL, Structure. Guidance for specification option: Polyester powder coated coatings only; insert colour requirements. RAL, imitation anodized. Guidance for specification option: Polyester powder coated coatings only; insert colour requirements. NCS. Guidance for specification option: Polyester powder coated coatings only; insert colour requirements. Special effects. Guidance for specification option: Polyester powder coated coatings only; includes fine and coarse structure, metallic effect or diverse gloss. Consult manufacturer for details and insert requirements. Decoral (wood grain effect). Guidance for specification option: Polyester powder coated coatings only; insert colour requirements. Natural silver. Guidance for specification option: Anodized only. Coloured anodized to Aluprof 'C' range. Guidance for specification option: Anodized only; insert colour requirements. Brushed silver anodized. Guidance for specification option: Anodized only. Heavy brushed silver anodized. Guidance for specification option: Anodized only.
Installation fasteners	Manufacturer's standard.
Frame accessories	Guidance for specification option: Consult manufacturer for options and insert requirements.
Door leaf	-
Thickness	95 mm. Guidance for specification option: Specify profile below ('Door leaf profile').
Core	Manufacturer's standard.
Material	Aluminium.
Perimeter seals	Manufacturer's standard.
Beading	-
Type	Internal.
Material	Aluminium.
Fixing	Manufacturer's standard.
Finish	-
Coating	Anodized by Aluprof to Qualanod standard, 25 µm film thickness. Polyester powder coated by Aluprof to Qualicoat standard, 60 µm film thickness. Polyester powder coated by Aluprof to Qualicoat 'seaside' standard, 60 µm film thickness. Polyester powder coated by Aluprof to Qualideco standard, 60 µm film thickness. Polyester powder coated by Aluprof to Qualideco 'seaside' standard, 60 µm film thickness. Bespoke. Guidance for specification option: Insert details of external and internal and coatings choices from the list above. Colours specified separately below.
Texture	Dependent on coating specified.
External colour	RAL, Matt. Guidance for specification option: Polyester powder coated coatings only; insert colour requirements. RAL, Satin Gloss. Guidance for specification option: Polyester powder coated coatings only; insert colour requirements. RAL, High Gloss. Guidance for specification option: Polyester powder coated coatings only; insert colour requirements. RAL, Structure. Guidance for specification option: Polyester powder coated coatings only; insert colour requirements. RAL, imitation anodized. Guidance for specification option: Polyester powder coated coatings only; insert colour requirements. NCS. Guidance for specification option: Polyester powder coated coatings only; insert colour requirements. Special effects. Guidance for specification option: Polyester powder coated coatings only; includes fine and coarse structure, metallic effect or diverse gloss. Consult manufacturer for details and insert requirements. Decoral (wood grain effect). Guidance for specification option: Polyester powder coated coatings only; insert colour requirements. Natural silver. Guidance for specification option: Anodized only. Coloured anodized to Aluprof 'C' range. Guidance for specification option: Anodized only; insert colour requirements. Brushed silver anodized. Guidance for specification option: Anodized only. Heavy brushed silver anodized. Guidance for specification option: Anodized only.
Internal colour	RAL, Matt. Guidance for specification option: Polyester powder coated coatings only; insert colour requirements. RAL, Satin Gloss. Guidance for specification option: Polyester powder coated coatings only; insert colour requirements. RAL, High Gloss. Guidance for specification option: Polyester powder coated coatings only; insert colour requirements. RAL, Structure. Guidance for specification option: Polyester powder coated coatings only; insert colour requirements. RAL, imitation anodized. Guidance for specification option: Polyester powder coated coatings only; insert colour requirements. NCS. Guidance for specification option: Polyester powder coated coatings only; insert colour requirements. Special effects. Guidance for specification option: Polyester powder coated coatings only; includes fine and coarse structure, metallic effect or diverse gloss. Consult manufacturer for details and insert requirements. Decoral (wood grain effect). Guidance for specification option: Polyester powder coated coatings only; insert colour requirements. Natural silver. Guidance for specification option: Anodized only. Coloured anodized to Aluprof 'C' range. Guidance for specification option: Anodized only; insert colour requirements. Brushed silver anodized. Guidance for specification option: Anodized only. Heavy brushed silver anodized. Guidance for specification option: Anodized only.
Film thickness (minimum)	60 µm (PPC) or 25 µm (Anodized). Guidance for specification option: Dependent on coating specified.
Door accessories	Guidance for specification option: Consult manufacturer for options and insert requirements or omit.
Hardware	Standard, silver. Standard, white. Standard, brown. Standard, silver anodized. Standard, RAL colour to match frame. Guidance for specification option: Specify if interior and exterior values differ. Enhanced Security (RC2), silver. Enhanced Security (RC2), white. Enhanced Security (RC2), brown. Enhanced Security (RC2), silver anodized. Enhanced Security (RC2), RAL colour to match frame. Guidance for specification option: Specify if interior and exterior values differ. Enhanced Security (RC3), silver. Enhanced Security (RC3), white. Enhanced Security (RC3), brown. Enhanced Security (RC3), silver anodized. Enhanced Security (RC3), RAL colour to match frame. Guidance for specification option: Specify if interior and exterior values differ.
Accessories	Guidance for specification option: Consult manufacturer for options and insert requirements or omit.
Execution	See Installation below.

Ironmongery	Single point locking. Multipoint locking. Emergency exit (EN 179). Panic Escape (EN 1125). Electric strike single point locking. Electronic multipoint locking. Show more
Hinges	Surface mounted hinges. Barrel hinges. Concealed hinges.
Environmental Product Declaration (EPD)	Cradle to Cradle.
Installation	The MB-104 door system specified above shall be fabricated and installed by Aluprof approved companies only, in complete accordance with the information and guidance distributed by Aluprof UK Ltd.

Sustainability data

Country of material origin	Poland
Country of product manufacture	United Kingdom Guidance for specification option: United Kingdom/ Poland.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	67.10 %
