Anchor® Vertica® Walling - Retaining walls for sloping hillsides

Name: Anchor® Vertica® Walling - Retaining walls for sloping hillsides
Brand: AG Paving and Building Products Ltd
SKU: pC37Yvr2UaXhF184RWR2qE

Verified by manufacturer 4 days ago

AG Paving and Building Products Ltd

Product certifications:

QA Certificate
Certificate type

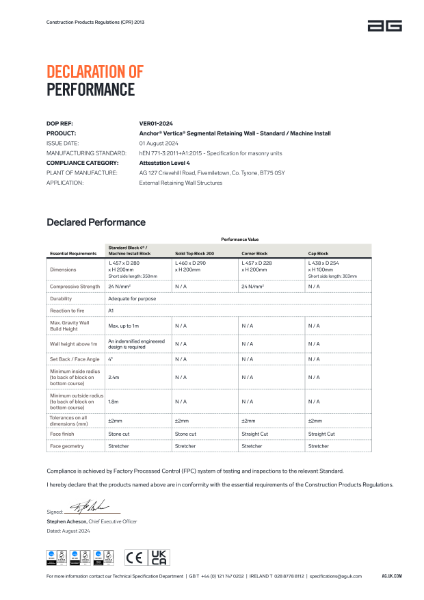

DoP
Certificate type

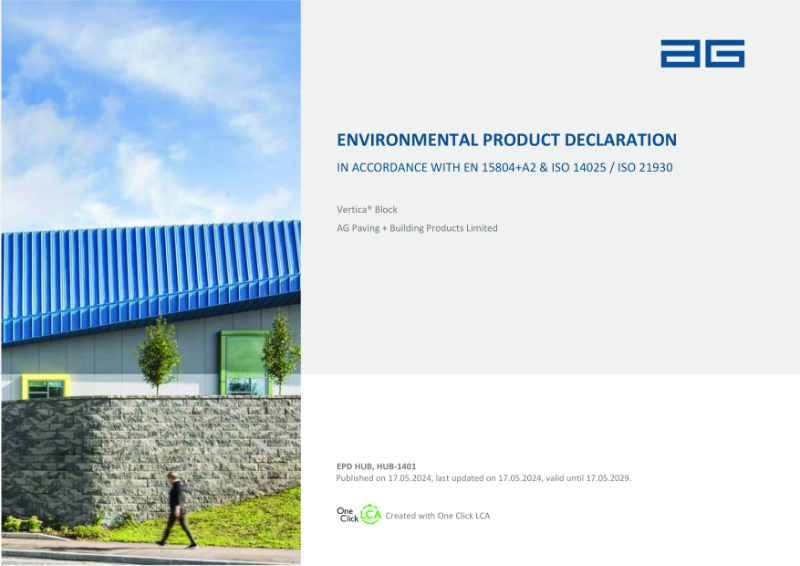

EPD
Certificate type

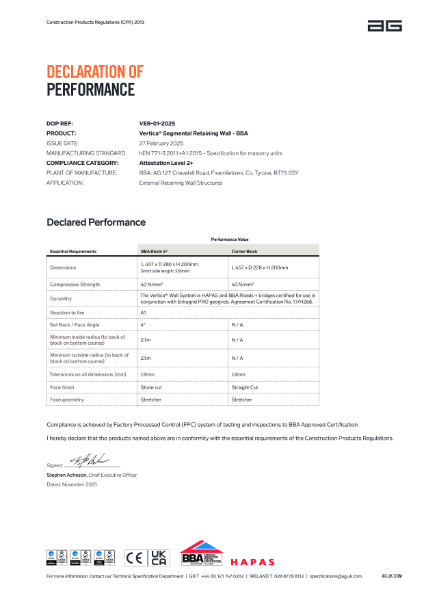

DoP
Certificate type

A mortarless dry build segmental retaining wall system consisting of self-finished concrete blocks with the appearance of riven faced stone.

Jump to:

028 8952 1275 Website

Application

Suitable for most walling applications from low height residential landscaping to tall commercial retaining walls.
Designed for steep, sloping hillsides and other traditionally difficult installation areas.

Description

A dry build segmental retaining wall system which allows fast track construction in all weathers. The walling blocks are traditionally landscape orientated with a surface finish that gives the appearance of riven faced dressed stone.

Features and benefits:

A locating lug on the top of each block automatically provides a uniform setback (4° face batter) and perfect alignment.
Available in two finishes – Straight or StoneCut.
A double-sided block enables a vertical wall to be constructed without mortar with the same textured finish on both sides.
Also available for machine installation.

Geogrid reinforcement is required for engineered walls over 1.0 m high. Please consult AG technical literature for further details.

Bond:

Stretcher.

Radius:

The units can be laid to internal or external radius:

Outside curve (minimum radius to back of block on top course): 1800 mm.
Inside curve (minimum radius to back of block on base course): 2400 mm.

General information

Color	Beige Grey Red
Finish	Textured
Length	457 mm 460 mm 438 mm
Width	280 mm 290 mm 228 mm 254 mm
Height	200 mm 100 mm

Uniclass	Pr_20_93_71_15 Concrete interlocking blocksPrimary
CAWS	D41/310 Drystack interlocking masonry

Specification data - Concrete interlocking blocks

Classification data
Standard	Manufactured to BS 771-3:2011+A1:2015 - Specification for masonry units.
Certification	CE marked; Certificate 14B/1-7-13, attestation Level 4 CPR (2011) Annex V.
Dimensions	457 x 280 x 200 mm. Manufacturer guidance Weight (approx.): Standard: 38 kg. Double Sided: 40 kg. Face coverage (approx.): 10.9 units/m².
Finish	-
Exposed faces	StoneCut textured. Straight cut textured.
Colour	Basalt. Cashel. Canelletto.
Special shapes	Not required. Anchor Shortcut Cap. Anchor Vertica Cap. Anchor Vertica Corner.
Type	Standard. Double-sided.
Face batter	2°. Guidance for specification option: Made to order. 4°. Guidance for specification option: Standard. 7°. Guidance for specification option: Made to order.
Accessories	None. Geogrid reinforcement. Manufacturer guidance Geogrid reinforcement: Required for walls in excess of 1000 mm high - consult Acheson & Glover's technical department.
CompressiveStrength	Standard block: 24 N/mm². BBA block: 40 N/mm².
Water absorption	7%. Guidance for specification option: Maximum.

Sustainability data

Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Recyclability	100% Manufacturer guidance Energy use: 100% renewable energy. Water used: 100% rain water harvesting. Recyclability: 100% of this product can be recycled. Manufacturing location: Produced in the UK from locally sourced materials. Waste wood and plastic: 100% recycled.
